GL500AT5
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

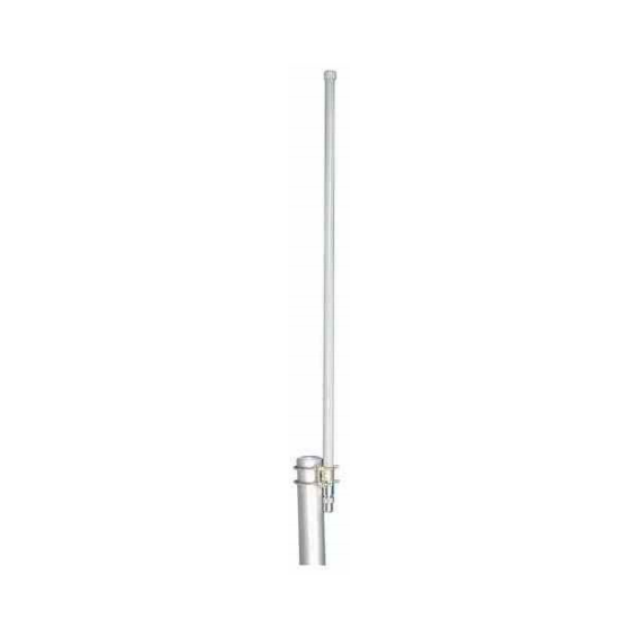

Item | Fiberglass Antenna |
PN | GL500AT5 |
Frequency(Mhz) | 500-590 |
Bandwidth(MHz) | 10 |
Gain(dBi) | 5 |
Vertical Beamwidth(°) | 28 |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 100 |
Dimensions(mm) | 12000 |
Weight(kg) | 0.4 |
Connector | N female |
Product Introduction
Targeted Frequency Coverage: Operates stably within 500-590 MHz with 10 MHz bandwidth for specialized communication needs.
Omnidirectional Signal Transmission: Features 360° horizontal beamwidth and 28° vertical beamwidth for full-range coverage.
Reliable Gain Performance: Delivers 5 dBi gain to enhance signal strength and extend transmission distance.
Efficient Signal Quality: Boasts ≤1.5 VSWR and 50Ω nominal impedance for low signal loss and stable performance.
Durable Fiberglass Construction: Equipped with N Female connector, weighs 0.4kg, and designed for outdoor rugged use.
Outdoor Wireless Communication Networks: Ideal for regional monitoring, utility, and transportation field communication.
Portable Outdoor Setups: Suitable for fieldwork teams, construction sites, and temporary outdoor communication needs.
Industrial IoT (IIoT) Infrastructure: Supports long-range connectivity for outdoor sensors and monitoring devices.
Public Safety Field Operations: Applied in emergency response, search and rescue, and field public safety communication.
Outdoor Trunking Systems: Compatible with utility, mining, and rural area wireless trunking networks (500-590 MHz).
FAQ
A: It covers 500-590 MHz with a 10 MHz bandwidth for specialized outdoor communication.
A: It provides 5 dBi gain and 360° horizontal omnidirectional coverage, with 28° vertical beamwidth.
A: It has a maximum power handling capacity of 100W for high-performance outdoor operation.
A: It adopts vertical polarization and is equipped with an N Female connector.
A: The VSWR is ≤1.5, ensuring efficient power transfer and low signal reflection.
