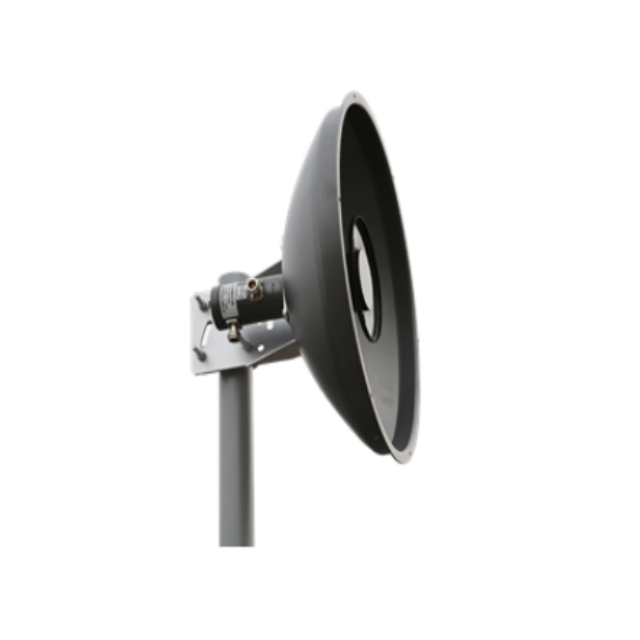

5.1–6.4GHz Dual Polarized 24dBi Parabolic Antenna

Product introduction

1. Dual Polarization for Enhanced Throughput

Supports vertical and horizontal polarization, improving signal capacity and transmission efficiency in high-demand networks.

2. High Gain (24dBi) for Long-Distance Links

Provides strong signal strength and extended coverage, perfect for point-to-point and backhaul communication.

3. Excellent Signal Isolation

With ≥30dB isolation and ≥35dB front-to-back ratio, the antenna minimizes interference and ensures stable connections.

4. Narrow Beamwidth for Focused Transmission

9° horizontal and vertical beamwidth allows precise signal targeting, reducing noise and improving link quality.

5. Rugged Outdoor Design

Built with durable aluminum alloy and wind resistance up to 60m/s, suitable for harsh outdoor environments.

Application Scenarios

Point-to-point wireless bridge systems

5GHz backhaul communication networks

ISP/WISP rural broadband deployment

Video surveillance transmission systems

Industrial and campus wireless networks

FAQ

Q: What frequency range does this antenna support?

A: It operates from 5100MHz to 6425MHz.

Q: What is dual polarization?

A: It supports both vertical and horizontal polarization to increase data throughput and signal stability.

Q: What is the gain of this antenna?

A: The antenna provides 24dBi high gain.

Q: Is it suitable for long-distance communication?

A: Yes, it is designed for long-range point-to-point wireless links.

Q: What connectors does it use?

A: It features 2× N Female connectors.

Q: Can it be used outdoors?

A: Yes, it is designed for outdoor use with strong wind resistance and weather durability.

Q: What is the maximum input power?

A: It supports up to 100W input power.

Q: What installation options are available?

A: It supports pole mounting with diameters from Φ25 to Φ60 mm.
