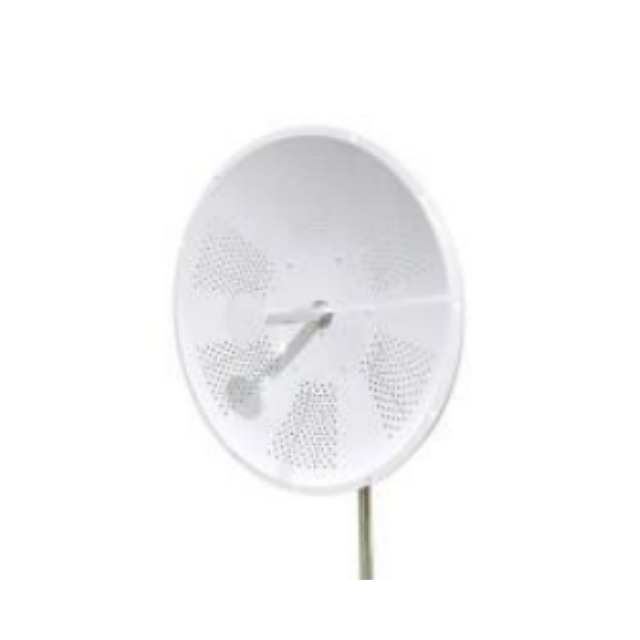

GLWXBP09D32
Asialeren
8517710000
5pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 4900-5150 | 5150-5850 | 5925-7125 |
Horizontal Half-power Beamwidth (°) | 2.5 | 2.5 | 2.5 |
Vertical Half-power Beamwidth (°) | 2.5 | 2.5 | 2.5 |
Gain (dBi) | 32±1 | 32.5±1 | 32±1 |
Polarization | Vertical and Horizontal or ±45° | ||
VSWR | ≤2.5 | ≤2.0 | ≤2.0 |
Front to Back Ratio (dB) | ≥35 | ||
Ports Isolation (dB) | ≥28 | ||
Average Power, Maximum (W) | 100 | ||
Impedance (Ω) | 50 | ||
Lightning Protection | DC Ground | ||
Mechanical Specifications | |
Dish Diameter (cm) | 90 |
Packing Dimension (mm) | 106 × 101 × 24 |
Net Weight (kg) | 9.9 (installation kit included) |
Packing Weight (kg) | 11 |
Connector | N Female (2×) |
Environmental Specifications | |
Application | Outdoor |
Operating Temperature (℃) | -40 to +70 (-40 to 158T) |
Humidity (%) | 5 to 95 |
Survival Wind Velocity (km/h) | 200 |
Mounting Specifications | |
MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | |
Mounting Style | Pole Mount |
Mounting Mast Diameter (mm) | Φ 50 to 75 |
Product Introduction
1. High-Frequency Coverage, Designed for 5G and Microwave Links
The antenna covers the 4900-7125MHz frequency band, suitable for 5G base station backhaul, point-to-point microwave communication, and high-frequency wireless backbone networks.
2. High Gain and Narrow Beamwidth, Strong Long-Distance Transmission Capability
With a gain of up to 32dBi and a horizontal and vertical beamwidth of only 2.5°, the signal is concentrated and the transmission distance is long, suitable for long-distance directional communication.
3. Dual Polarization Design, Improved Spectrum Efficiency
Supports vertical/horizontal or ±45° dual polarization, port isolation ≥28dB, supports MIMO applications, significantly improving channel capacity and anti-interference capability.
4. Rugged Construction, Adaptable to Harsh Outdoor Environments
With a 90cm dish diameter, standard mounting bracket and accessories, it can withstand wind speeds of up to 200km/h, operating temperatures of -40℃ to +70℃, and an IP rating suitable for all-weather outdoor deployment.
5. High Power Handling Capacity and Excellent Electrical Performance: Maximum average power 100W, VSWR ≤ 2.0 (most frequency bands), front-to-back ratio ≥ 35dB, ensuring stable and clear signal transmission.
Application Scenarios
5G base station backhaul and wireless backbone network
Intercity point-to-point microwave communication link
Remote monitoring and security system wireless video transmission
Broadcast television signal relay and transmission
Long-distance data backhaul for industrial IoT
FAQ
Q: What frequency bands does this antenna cover?
A: It covers 4900-5150MHz, 5150-5850MHz, and 5925-7125MHz, suitable for 5G and microwave applications.
Q: Is this antenna suitable for 5G networks?
A: Yes, it is ideal for 5G backhaul and fixed wireless access in the Sub-6GHz and upper mid-band frequencies.
Q: What is the beamwidth of this antenna?
A: Both horizontal and vertical half-power beamwidths are approximately 2.5°, providing highly directional signal transmission.
Q: Does it include mounting hardware?
A: Yes, mounting brackets are included for pole mounting (mast diameter Φ50-75mm).
Q: What is the wind resistance rating?
A:The antenna can survive wind speeds up to 200 km/h when properly installed.
Q:Is it waterproof and UV resistant?
A:The antenna is designed for outdoor use with appropriate environmental protection. Specific IP rating can be confirmed upon request.
Electrical Specifications | |||
Frequency Range (MHz) | 4900-5150 | 5150-5850 | 5925-7125 |
Horizontal Half-power Beamwidth (°) | 2.5 | 2.5 | 2.5 |
Vertical Half-power Beamwidth (°) | 2.5 | 2.5 | 2.5 |
Gain (dBi) | 32±1 | 32.5±1 | 32±1 |
Polarization | Vertical and Horizontal or ±45° | ||
VSWR | ≤2.5 | ≤2.0 | ≤2.0 |
Front to Back Ratio (dB) | ≥35 | ||
Ports Isolation (dB) | ≥28 | ||
Average Power, Maximum (W) | 100 | ||
Impedance (Ω) | 50 | ||
Lightning Protection | DC Ground | ||
Mechanical Specifications | |
Dish Diameter (cm) | 90 |
Packing Dimension (mm) | 106 × 101 × 24 |
Net Weight (kg) | 9.9 (installation kit included) |
Packing Weight (kg) | 11 |
Connector | N Female (2×) |
Environmental Specifications | |
Application | Outdoor |
Operating Temperature (℃) | -40 to +70 (-40 to 158T) |
Humidity (%) | 5 to 95 |
Survival Wind Velocity (km/h) | 200 |
Mounting Specifications | |
MOUNTING BRACKETS ARE INCLUDED UNLESS OTHERWISE SPECIFIED | |
Mounting Style | Pole Mount |
Mounting Mast Diameter (mm) | Φ 50 to 75 |
Product Introduction
1. High-Frequency Coverage, Designed for 5G and Microwave Links
The antenna covers the 4900-7125MHz frequency band, suitable for 5G base station backhaul, point-to-point microwave communication, and high-frequency wireless backbone networks.
2. High Gain and Narrow Beamwidth, Strong Long-Distance Transmission Capability
With a gain of up to 32dBi and a horizontal and vertical beamwidth of only 2.5°, the signal is concentrated and the transmission distance is long, suitable for long-distance directional communication.
3. Dual Polarization Design, Improved Spectrum Efficiency
Supports vertical/horizontal or ±45° dual polarization, port isolation ≥28dB, supports MIMO applications, significantly improving channel capacity and anti-interference capability.
4. Rugged Construction, Adaptable to Harsh Outdoor Environments
With a 90cm dish diameter, standard mounting bracket and accessories, it can withstand wind speeds of up to 200km/h, operating temperatures of -40℃ to +70℃, and an IP rating suitable for all-weather outdoor deployment.
5. High Power Handling Capacity and Excellent Electrical Performance: Maximum average power 100W, VSWR ≤ 2.0 (most frequency bands), front-to-back ratio ≥ 35dB, ensuring stable and clear signal transmission.
Application Scenarios
5G base station backhaul and wireless backbone network
Intercity point-to-point microwave communication link
Remote monitoring and security system wireless video transmission
Broadcast television signal relay and transmission
Long-distance data backhaul for industrial IoT
FAQ
Q: What frequency bands does this antenna cover?
A: It covers 4900-5150MHz, 5150-5850MHz, and 5925-7125MHz, suitable for 5G and microwave applications.
Q: Is this antenna suitable for 5G networks?
A: Yes, it is ideal for 5G backhaul and fixed wireless access in the Sub-6GHz and upper mid-band frequencies.
Q: What is the beamwidth of this antenna?
A: Both horizontal and vertical half-power beamwidths are approximately 2.5°, providing highly directional signal transmission.
Q: Does it include mounting hardware?
A: Yes, mounting brackets are included for pole mounting (mast diameter Φ50-75mm).
Q: What is the wind resistance rating?
A:The antenna can survive wind speeds up to 200 km/h when properly installed.
Q:Is it waterproof and UV resistant?
A:The antenna is designed for outdoor use with appropriate environmental protection. Specific IP rating can be confirmed upon request.
