GLH311
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

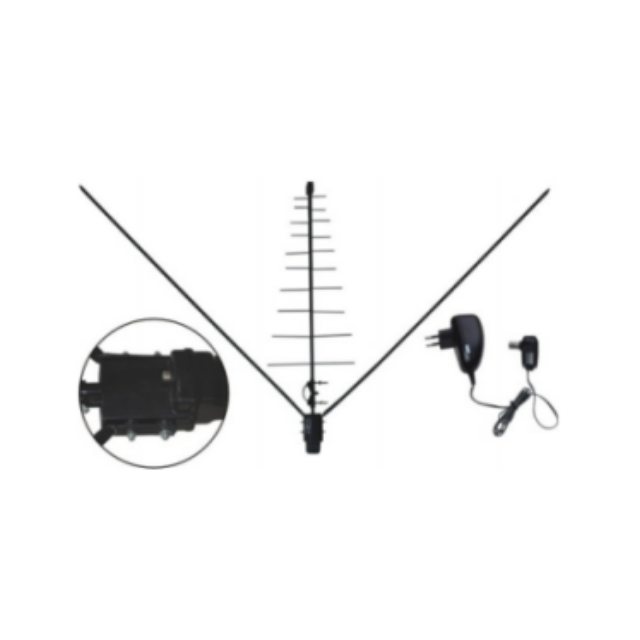

Item | Amplifier Outdoor Antenna
|
PN | GLH311 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 22-26 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F/IEC |
Material | Aluminum and Plastic |
Length-mm | 850 |
| 765*345*530 |
Weight | 8.5kg/carton |
Operation Voltage | AC/220v |
Product Introduction
Professional-Grade High-Gain Amplification Performance:Offers 22-26dBi high gain with a built-in high-performance signal amplifier, effectively enhancing signals in the 470-862MHz UHF band. Optimized for medium- to long-distance weak signal areas.
Dual-Interface Compatibility Design: Innovatively adopts an F/IEC dual-interface configuration, compatible with different cable standards and device connection requirements, providing more flexible system integration solutions and enhanced installation adaptability.
Rugged Outdoor Professional Structure: 850mm aerospace-grade aluminum alloy main body structure, IP65 protection rating, UV resistant and corrosion resistant treatment, ensuring long-term stable operation in harsh outdoor environments.
High-Efficiency Signal Transmission System: VSWR≤1.5 ultra-low standing wave ratio, 75Ω standard impedance perfectly matched, combined with a high-performance amplifier, ensuring maximum signal transmission efficiency and a clean, stable picture.
Professional Power Supply Design:Supports AC 220V professional power supply, equipped with overvoltage and overcurrent protection, ensuring stable amplifier operation, suitable for commercial and professional applications.
Application Scenarios
●Long-distance rural areas: Signal enhancement in rural and mountainous areas 40-70 km from signal towers
●Commercial multi-user systems: Front-end for TV signal distribution systems in hotels, guesthouses, and apartment buildings
●Community TV signal coverage: Centralized TV signal reception and distribution in villages and communities
●Professional broadcasting applications: Signal receiving equipment for local TV stations and radio stations
●Special terrain signal enhancement: Professional solutions for areas with severe signal attenuation, such as hilly areas and forests
FAQ
Q: What is the suitable signal reception distance for the GLH311?
A: Optimized for medium-to-long-distance signal reception (40-70 km), performing excellently in extremely weak signal environments.
Q: How should I choose between the F and IEC interfaces?
A: The F interface is suitable for standard coaxial cable connections, while the IEC interface is suitable for professional equipment connections. Choose according to the actual equipment interface.
Q: What power supply issues should be considered during installation?
A: A stable AC 220V power supply must be used. It is recommended to use a voltage regulator in areas with unstable voltage.
Q: What is the product's waterproof rating?
A: IP65 protection rating, completely dustproof and water-resistant, suitable for long-term outdoor installation.
Q: Can the amplifier gain be adjusted?
A: It adopts a fixed gain optimization design; the system will automatically and intelligently adjust according to signal strength.
Q: What are the recommendations for installation height?
A: We recommend an installation height of 8-15 meters, avoiding obstructions, and facing the signal tower.
