English
GL932
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

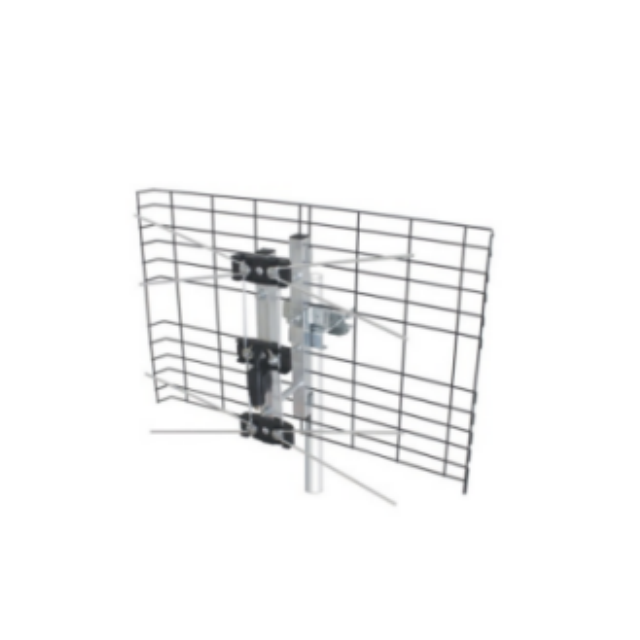

Item | Outdoor Yagi HDTV Antenna |
PN | GL932 |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 10-12 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 850 |
| 765*345*530 |
Weight | 8.5kg/carton |
Product Introduction
470-862MHz Full-Band Coverage, Adaptable to Global Digital HD Signals: Designed specifically for the 470-862MHz UHF core frequency band, it fully covers mainstream digital terrestrial television bands. No additional debugging is required to connect to various HDTVs and set-top boxes. It is compatible with multiple regional signal standards, avoiding channel loss due to frequency band limitations, and meeting the core needs of home full HD viewing and live sports broadcasts.
10-12dBi High-Gain Directional Reception, Precise Capture in Weak Signal Areas: With a gain of 10-12dBi, the signal reception distance is increased by more than 100% compared to ordinary low-gain antennas. The directional Yagi structure further enhances signal focusing, accurately capturing weak TV signals in rural, mountainous, and suburban areas, completely solving the pain points of "no cable TV, network lag," ensuring HD picture quality without snow or delay.
Low VSWR + Precise Impedance Matching for Lossless and Efficient Signal Transmission: VSWR (Voltage Standing Wave Ratio) ≤1.5, far exceeding the industry standard of ≤2.0, significantly reducing signal reflection loss and achieving a transmission efficiency exceeding 95%; the 75Ω standard impedance perfectly matches HDTVs and set-top boxes, avoiding energy waste during signal transmission and ensuring stable and uninterrupted signal transmission.
Optimized 850mm Length + Aluminum-Plastic Structure for Maximum Outdoor Weather Resistance: Utilizing a high-conductivity aluminum vibrator and an anti-aging plastic shell, the aluminum material enhances signal conduction efficiency, while the plastic shell resists UV rays and weather corrosion, withstanding harsh outdoor environments such as high temperatures, heavy rain, and blizzards; the optimized 850mm length design balances signal reception quality with installation flexibility, resisting deformation and aging over long-term use, extending the lifespan by more than 2 times compared to antennas made of ordinary materials.
F-type interface + universal adapter, easy installation and wide compatibility: Equipped with an industry-standard F-type connector, no additional adapters are needed; plug and play, even beginners can quickly complete outdoor installations on rooftops, yard poles, etc.; 75Ω impedance adapts to mainstream global TV signal transmission standards, seamlessly connecting to existing equipment for both independent home installations and mass deployments in villas, guesthouses, and small commercial spaces, with unlimited compatibility.
Application Scenarios
Rural/Remote Mountain Homes: Installed on rooftops or yard poles, 10-12dBi high gain + directional reception accurately captures weak signals from afar, solving the problem of insufficient cable TV coverage in remote areas and allowing families to enjoy high-definition TV channels.
Villas/Detached Houses Outdoors: Fixed to terraces or fence brackets, the weather-resistant aluminum-plastic material is suitable for long-term outdoor use, and full-band coverage ensures reception of all surrounding high-definition channels, meeting the needs of the whole family for leisure viewing and holiday gatherings.
Campsites/Temporary Accommodation: A TV signal solution for outdoor camping and temporary dormitories at construction sites. Weighing only 8.5kg per box, it's easy to transport. Its efficient reception allows for HD TV viewing even outdoors, alleviating boredom.
Suburban Apartments/Rooftops: Designed for suburban apartments without cable TV coverage, this unit can be installed on rooftops or balconies (unobstructed views). Its low VSWR characteristic reduces signal loss, ensuring stable reception even with slight obstructions on higher floors.
Small Commercial Venues: Ideal for rural shops, outdoor recreation areas, and guesthouses, providing customers with HD TV programming and enhancing their experience without the burden of high annual cable TV fees.
FAQ
Q: What frequency range does GL932 cover?
A: It supports 470-862MHz UHF band, compatible with mainstream digital HDTV terrestrial signals globally.
Q: What is the gain range of GL932?
A: Its gain is 10-12dBi, ideal for receiving weak signals in rural, remote or suburban areas.
Q: What connector type does GL932 use?
A: It uses an F-type connector, widely compatible with HDTVs and digital set-top boxes.
Q: What is the input impedance of GL932?
A: Its input impedance is 75Ω, matching standard HDTV signal transmission requirements.
Q: What materials is GL932 made of?
A: It consists of aluminum (radiation element) and plastic (housing), which is weatherproof for outdoor use.
Q: What are the dimensions and weight of GL932?
A: The antenna length is 850mm, carton size is 765345530mm, and each carton weighs 8.5kg.
