English
GL059
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
1.Working condition
Temperature：-40℃～+85℃
Humidity： 95﹪～100﹪
2.Storage condition
Temperature：-40℃～+85℃
Humidity： 95﹪～100﹪
3.Waterproof performance
Water proofing grade：IP67
4.5G antenna performance
Item | Specifications |
Frequency Range | 698~960MHz/1710~2690MHz/3300 ~5850MHz |
V.S.W.R（min） | ＜3 |
Polarization | Linear |
Gain | 3dBi |
Impedance | 50Ω |

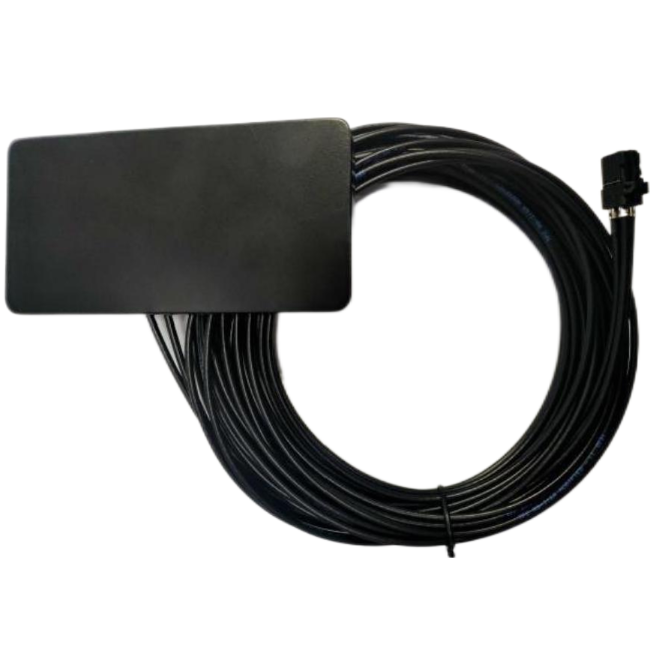

5.Product Introduction
Ultra-Wide Frequency Coverage (698MHz–5.8GHz)
Supports GSM, 3G, LTE, WiFi 2.4G/5.8G, and 5G networks, ideal for future-proof connectivity.
High Efficiency & Low VSWR
Optimized VSWR ≤1.1 at 4400MHz and efficiency up to 80% (e.g., Ant1: 80% at 600–1000MHz), ensuring minimal signal loss.
Robust Durability
Passed 24-hour neutral salt spray test (ISO 9227) with no rust, discoloration, or coating peeling, suitable for harsh outdoor environments.
Multi-Application Compatibility
Designed for MIMO configurations, IoT gateways, smart home systems, and industrial communication equipment.
Superior OTA Performance
TRP up to 18.36dBm and TIS as low as -107.86dBm (tested across LTE/WCDMA bands), ensuring reliable signal transmission and reception.
6.Application scenarios
Home/Office: Extend WiFi 5.8G and LTE coverage in large buildings.
Industrial IoT: Connect sensors and devices across GSM/LTE bands.
Outdoor Mobile Networks: Deploy in 5G base stations or rural cellular setups.
Smart Cities: Support public WiFi hotspots and traffic management systems.
7.FAQ
Q: What networks does this antenna support?
A: GSM, 3G, LTE, WiFi 2.4G/5.8G, and 5G (bands 1/3/5/7/8/38/39/40/41/77/78/79).
Q: Is it waterproof?
A: Yes, it passed rigorous salt spray testing for outdoor durability.

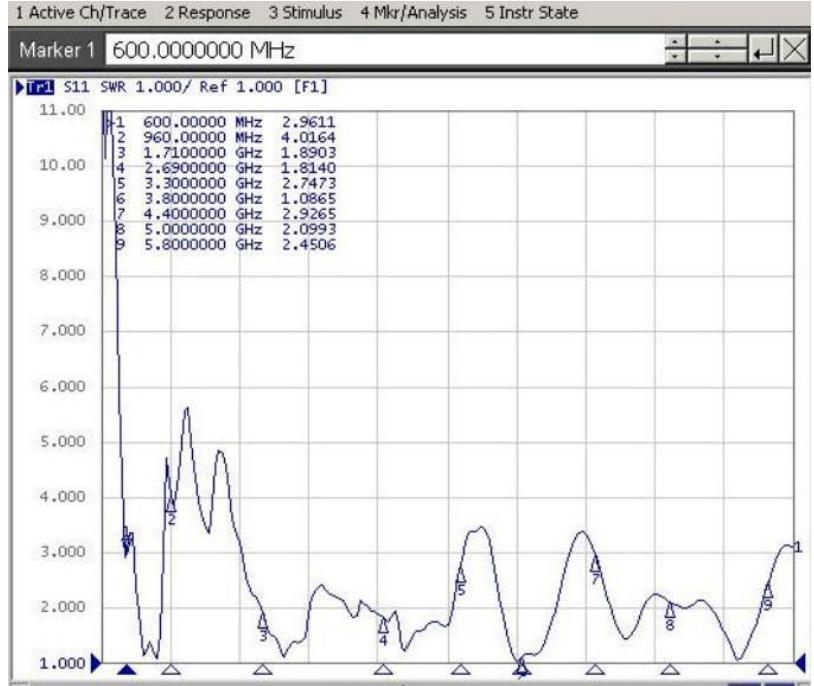

Q: What is the VSWR at 5.8GHz?
A: VSWR ≤1.86 (Ant1) and ≤2.45 (Ant2), ensuring efficient signal transmission.
Q: Can it be used for MIMO setups?
A: Yes, with isolation up to -40.45dB (Ant1-Ant2), it supports 4x4 MIMO configurations.
Q: What’s the efficiency at 2.4GHz?
A: Ant1 achieves ~70% efficiency in the 1700–2700MHz range (see page 11).
Q: Does it require a separate amplifier?
A: No, it’s designed for direct integration with compatible modems/routers.
Q: Is it compatible with 5G NR bands?
A: Yes, it covers n77/n78/n79 5G bands (tested up to 5800MHz).
