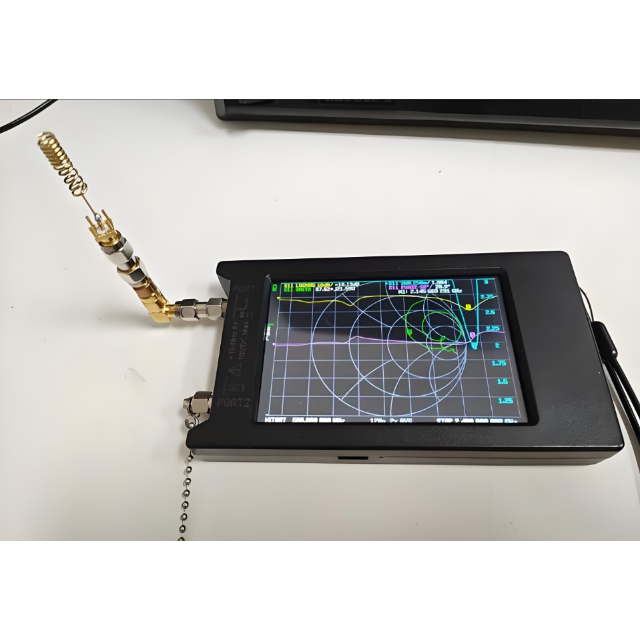

3G spring antenna GL1308
Product NO | GL1308 |
Electric Specifications | |
Frequency rang-MHz | 900-1000 |
Gain -dBi | 3.0 |
VSWR | ≤1.9 |
Input Impedance-Ω | 50 |
Polarization | Vertical |
Max power -W | 50 |
Lightning protection | DC ground |
Connector model | — |
Mechanical Specification | |
Size -mm | 5*32 |
Antenna weight-g | 1 |
Material | phosphor copper |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL1308 | GL-DYG1301 | GL-DYG1302 |
| Frequency range-mhz | 900-1000 | 868 | 800-1900 |
| Gain-dBi | 3 | 2 | 2 |
| Antenna Dimension-mm | 5*32 | 4.8*41 | 4.8*36 |
Product Introduction
1.Ultra-Compact Design
At just 5×32mm and 1g weight, fits space-constrained devices without sacrificing performance.
2.Industrial-Grade Construction
Phosphor copper body ensures corrosion resistance and spring durability for vibration-prone environments.
3.Precision-Tuned Performance
3dBi gain + ≤1.9 VSWR delivers stable signal efficiency across 900-1000MHz 3G bands.
4.High-Power Handling
Supports up to 50W transmission power – exceptional for micro antennas.
5.Built-In Protection
DC ground lightning protection extends lifespan in outdoor/industrial deployments.
• Portable Electronics: Handheld scanners, rugged tablets
• IoT/M2M Devices: Asset trackers, remote sensors
• Industrial Controls: Machinery telemetry, PLC systems
• Telecom Equipment: Micro base stations, repeater devices
• Emergency Tools: Portable comms gear, field medical devices
Q: What devices use this antenna?
A: Ideal for 3G-enabled IoT trackers, industrial handhelds, and compact telecom gear.
Q: Is the spring base waterproof?
A: While not IP-rated, phosphor copper resists corrosion in humid environments (non-submersible).
Q: Can it withstand drops/vibration?
A: Yes – spring design absorbs shocks, ideal for mobile equipment.
Q: Connector compatibility?
A: Customizable (spec shows no default connector). Contact us for specific options.
Q: Maximum temperature range?
A: Phosphor copper performs reliably in -30°C to +75°C environments (extended range available).
Q: Difference vs. magnetic antennas?
A: Spring mount suits enclosed devices; magnets work on metal surfaces. Choose based on installation.
Q: ROHS compliant?
A: Phosphor copper meets ROHS standards – lead-free and eco-safe.
