38dBi High precision antenna

Vertex Gain

B3I≥3.5dBi  B2b≥5dBi

B1I≥3.5dBi  L≥3.0dBi  S≥3.0dBi

Elevation Gain (20°)

B3I≥-3dBi   B2b≥-2dBi

B1I≥-2.5dBi  L≥-3dBi  S≥-3dBi

Polarization

B3I(1268.52±10.23) MHz RHCP

B2b(1207.14±10.23) MHz RHCP

B1I(1561.098±2.046) MHz RHCP

L(1615.68±4.08) MHz LHCP

S(2491.75±4.08) MHz RHCP

LNA Gain

38±2dB

Impedance

50Ω

In-band Flatness

±2dB

Axial Ratio

≤3dB

Storage temperature

-55℃ to +85℃

Operating temperature

-40℃ to +70℃

Horizontal Coverage Angle

360°

VSWR

≤2.0

Humidity

95% Non-condensing

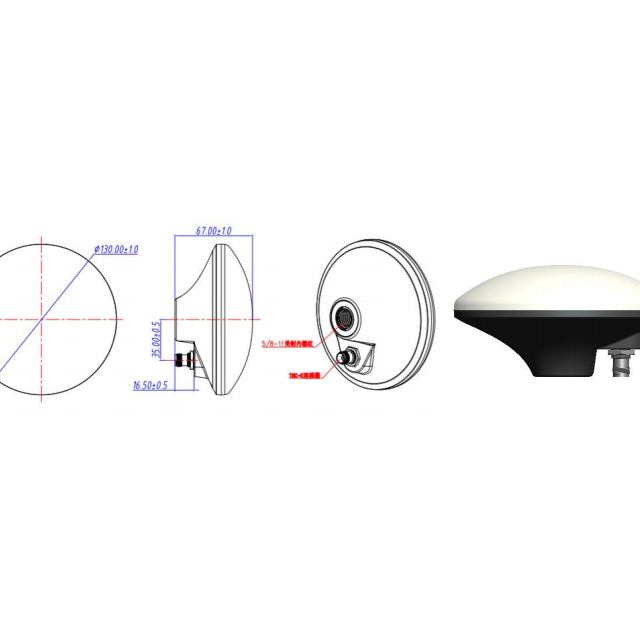

Dimensions

130.00±1.0mm H 67.00±1.0mm

Connector

TNC-KF(waterproof)

Weight

≤360g
