GL-DZ2001
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) |
BDS:B1 GPS:L1
|
Polarization | RHCP
|
Operating voltage | 3.0~5.5V DC
|
working current | ≤50mA
|
Elevation Gain (90°) | ≥2.5 dBi
|
Elevation Ratio (90°) | ≤3 dB
|
Elevation Ratio (20°) | ≥-4dBi
|
Impedance | 50Ω
|
Horizontal Coverage Angle | 360°
|
LNA Gain | 35±2dB
|
Noise figure | ≤1.5dB
|
VSWR | ≤1.5
|
Connector | SSMA-K
|
In-band Flatness | ±1dB
|
Humidity | 95% Non-condensing
|
Storage temperature | -40℃ to +80℃
|
Operating temperature | -40℃ to +80℃
|

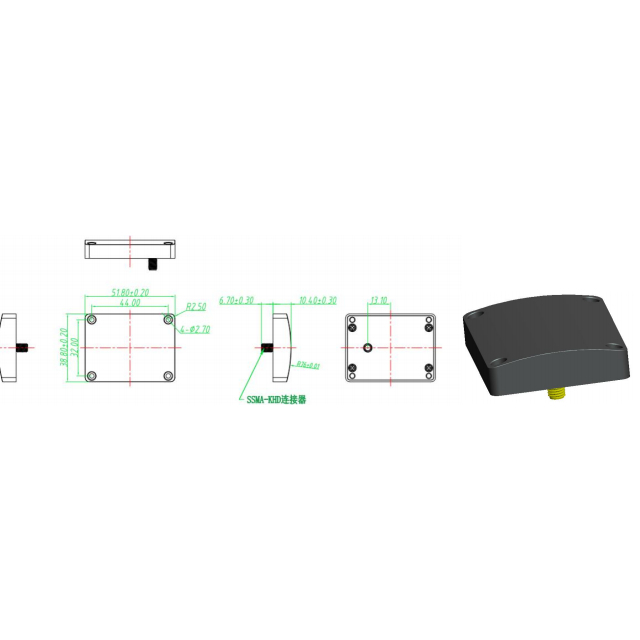

Dimensions | 52*39*10.5mm mm |
