English
GLG9FG3B
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 890-950 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 3 | ||
Polarization | Vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ20×300 | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||

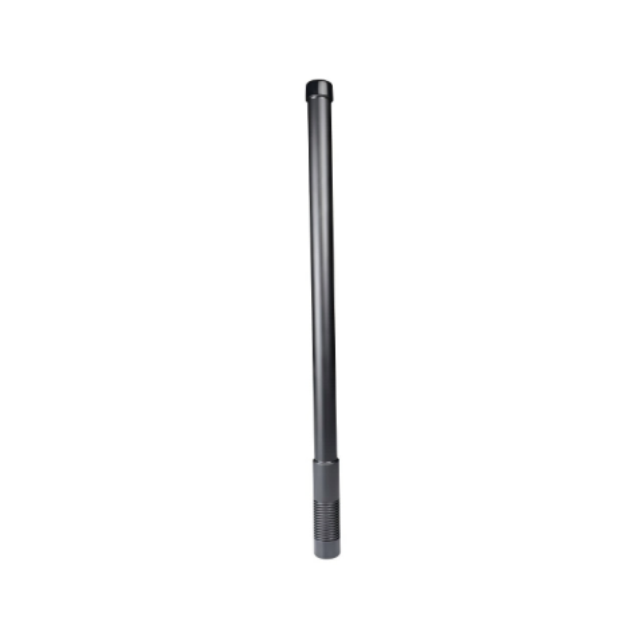

Product Description
1. Omnidirectional High-Gain Coverage
With a gain of 3dBi, a horizontal beamwidth of 360°, and a vertical beamwidth of 60°, this ensures uniform signal coverage across the entire area, making it ideal for wireless communication systems requiring stable connectivity.
2. Rugged Outdoor Design
Constructed of a fiberglass gray housing, this design is corrosion-resistant and UV-resistant. Operating temperature ranges from -40°C to +70°C, humidity from 5% to 95%, and a maximum wind speed of 200 km/h, it is suitable for a variety of harsh environments.
3. High Power Handling
Maximum input power of 150W, VSWR ≤ 2.0, and an impedance of 50Ω ensure efficient signal transmission with minimal loss, making it suitable for demanding industrial applications.
4. Easy Installation and Durable Construction
Fixed via an N-K connector and spring-loaded base, it resists vibration and shock. Weighing only 0.2kg and measuring Φ20 × 300mm, it is easy to deploy on vehicles, towers, or rooftops.
5. Reliable Communication Performance
Optimized for the 890-950MHz frequency band, this vertically polarized design provides stable, low-interference connectivity suitable for remote monitoring, data transmission, and mobile communications.
Application Scenarios
Industrial Wireless Communication: Used in factory automation, SCADA systems, and sensor networks, ensuring stable data transmission between devices.
Vehicle and Mobile Devices: Installed on trucks, construction vehicles, or mobile base stations, it supports fleet management and remote communications.
Outdoor Monitoring and Security: Suitable for remote video surveillance and environmental monitoring stations, featuring strong weather resistance and adaptability to changing weather conditions.
Rural and Remote Communications: Deployed in areas with weak signal strength to extend network coverage and support agricultural IoT or emergency communications.
Public Safety and Emergency Systems: Used in fire and rescue vehicles or temporary communication sites, it provides reliable connectivity.
FAQ
Q:What is the frequency range of this antenna?
A:The antenna operates in the 890-950MHz range, ideal for various wireless communication applications.
Q:Is this antenna suitable for outdoor use?
A:Yes, it is designed for outdoor scenarios with an operating temperature of -40°C to +70°C and high wind resistance up to 200km/h.
Q:What is the maximum power input?
A:The antenna supports up to 150W maximum input power, making it suitable for high-power systems.
Q:How is the antenna installed?
A:It uses connector fixing (N-K type), allowing easy and secure installation on surfaces like poles or vehicles.
Q:What is the gain and coverage?
A:It offers 3dBi gain with 360° horizontal and 60° vertical beam width, providing omnidirectional coverage.
Q:What connector type does it use?
A:It comes with an N-K connector, compatible with standard coaxial cables for easy integration.
