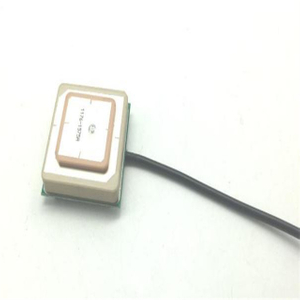

GPSGNSS Antenna | |
GL-DY003 | |
Electrical Index | |
Frequency-MHz | 1575.42±1/1601-1610 |
VSWR | ＜1.5 |
Nominal Impedance-Ω | 50 |
Polarization | RHCP |
Axial Ratio | 3dB(max) |
LNA Gain | 28±2dB |
Noise Figure | ＜1.5 |
Supply Voltage | 3-5V DC |
Current Consumption | 5-15mA |
Mechanical Index | |
Cable Length-mm | RG174 |
Connector | Fakra H Pink or SMA male |
Antenna Dimension-mm | φ46.6*14.5 |
Installation Way | Screw |
Ingress Protection | IP65~IP67(exclude cable outlet) |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1.Dual-System Precision
Supports GPS (1575.42MHz) + Glonass (1601-1610MHz) for enhanced satellite coverage in urban/rural areas.
2. High-Performance LNA
28±2dB gain with <1.5dB noise figure ensures superior signal amplification in weak-signal environments.
3.Industrial Durability
IP67-rated (excluding cable outlet) withstands dust/water immersion. Operates at -40°C to +85°C with 95% humidity tolerance.
4. Anti-Vibration Design
Survives harsh vibrations (10-55Hz, 1.5mm amplitude for 2hrs) – ideal for vehicles/construction equipment.
5. Flexible Connectivity
Choice of FAKRA H pink or SMA male connectors + RG174 cable for easy integration.

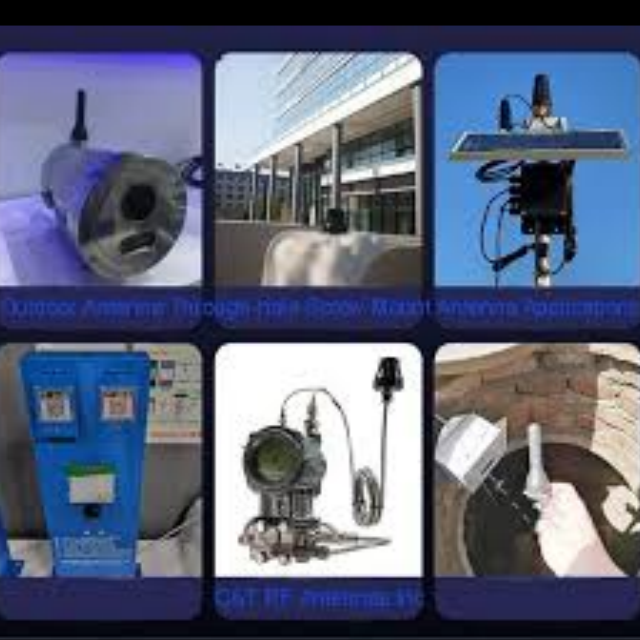

Fleet Management: Real-time tracking for trucks/taxis
Agricultural Machinery: Precision farming equipment guidance
Marine Navigation: Boat GPS systems in wet environments
Drone Positioning: UAVs requiring dual-system accuracy
Industrial IoT: Heavy machinery telemetry in extreme temps
Emergency Response: Reliable location data in disasters
Q: What systems does this antenna support?
A: Dual-band coverage for GPS (1575.42MHz) and Glonass (1601-1610MHz).
Q: Is this antenna waterproof?
A: Yes, IP67-rated (water immersion protection), excluding cable outlet.
Q: What power supply does it require?
A: 3.3V-5V DC with low 5-15mA current consumption.
Q: Why is 3dB axial ratio important?
A: Ensures circular polarization accuracy for reliable signal reception during device movement.
Q: Can it withstand vehicle vibrations?
A: Yes, tested at 10-55Hz/1.5mm amplitude for 2 hours.
Q: What’s the benefit of 28dB LNA gain?
A: Amplifies weak satellite signals for faster lock-ons in urban canyons/forests.
Q: Which connector types are available?
A: FAKRA C blue (automotive standard) or SMA male options.
Q: Is cable length customizable?
A: Uses standard RG174 cable; length can be customized upon request.
