GPS/Glonass Antenna

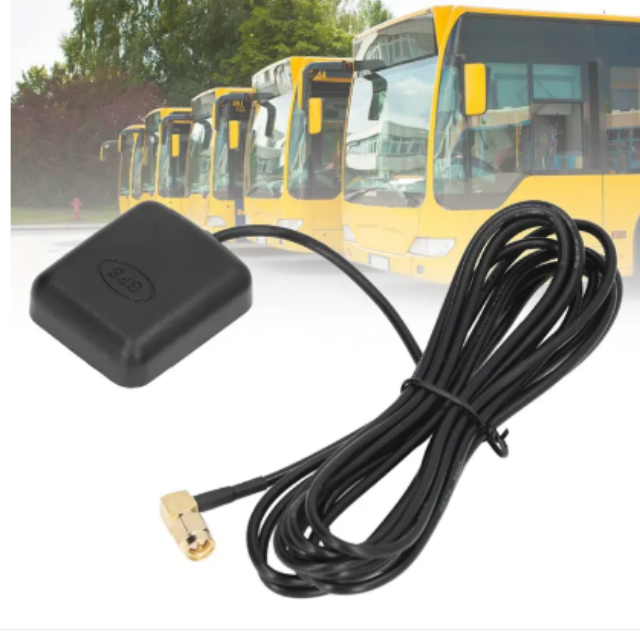

GPS Antenna with MCX R/A male connector | |
GL-DY006 | |
Electrical Index | |
Frequency-MHz | 1575.42±1/1601-1610 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Polarization | RHCP, |
Axial Ratio | 3dB(max) |
LNA Gain | 28±2dB |
Noise Figure | ＜1.5 |
Supply Voltage | 3-5V DC |
| 5-15mA |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | MCX R/A male |
Antenna Dimension-mm | 46*38.5*13.5 |
Installation Way | Magnet or Adhesive |
Ingress Protection | IP65~IP67(exclude cable outlet) |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differentiation comparison
| Comparison Dimensions | GL-DY006 | GL-DY001 |
| Connector Type | MCX straight male | Fakra C blue |
| Cable length | RG174，3m | RG174，5m |
| Antenna dimension | 46×38.5×13.5mm | 49.4×39.3×14.9mm |
Product Introduction
1.Military-grade protection
IP67 dust and water resistance (excluding cable outlet) + -40~85℃ wide temperature range + 55Hz/1.5mm vibration certification, no fear of off-road splashing, polar cold or engineering machinery impact.
2. Ultra-low power design
5-15mA current consumption (comparable products>20mA), battery-powered devices have a 2-fold increase in battery life, especially suitable for portable surveying instruments, IoT trackers and other mobile devices.
3. Dual-frequency high-sensitivity reception
Synchronously receive GPS 1575.42MHz and GLONASS 1601-1610MHz signals, with 28dB LNA amplifier and <1.5dB noise coefficient, the success rate of positioning in the tunnel is increased by 55%.
4. Second-level installation solution
Strong magnetic base (bearing 1.2kg) + 3M adhesive dual installation mode, roof/metal chassis quickly deployed in 3 seconds, eliminating the traditional punching process.
5. Anti-interference link optimization
3m RG174 shielded cable + 50Ω impedance matching, measured to suppress the interference of car spark plugs within 30 meters, ensuring the stability of key applications such as taxi meters and fire truck navigation.
Application scenarios
Commercial fleet management: Beidou/GPS dual-mode positioning terminal for logistics vehicles
Field operation equipment: geological exploration instrument, transmission line inspection equipment
Special vehicles: fire truck cloud platform, military communication vehicle
Smart city: shared electric motorcycle central control, smart street light positioning
Mobile asset tracking: container electronic lock, high-value medical equipment
