English
GLU3FG1B
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 270-350 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 60 | ||
Gain (dBi) | 1 | ||
Polarization | Vertical | ||
VSWR | ≤2.0 | ||
Maximum input power (W) | 150 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Φ20×300 | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | grey | ||
Input connector type | N-K | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Installing the Hardware | |||
Installation | Connector fixing | ||
Product Introduction
1. High Power Handling Capacity, Supporting 150W Input
This antenna is designed for high-power communication systems, ensuring stable signal transmission and suitable for applications requiring long-distance or high-reliability communications, such as industrial remote control or public safety networks.
2. Omnidirectional Radiation Pattern, 360° Horizontal Coverage
With a horizontal beamwidth of 360° and a vertical beamwidth of 60°, it provides uniform, all-around signal coverage without frequent reorientation, making it ideal for multi-node wireless networks or mobile communications.

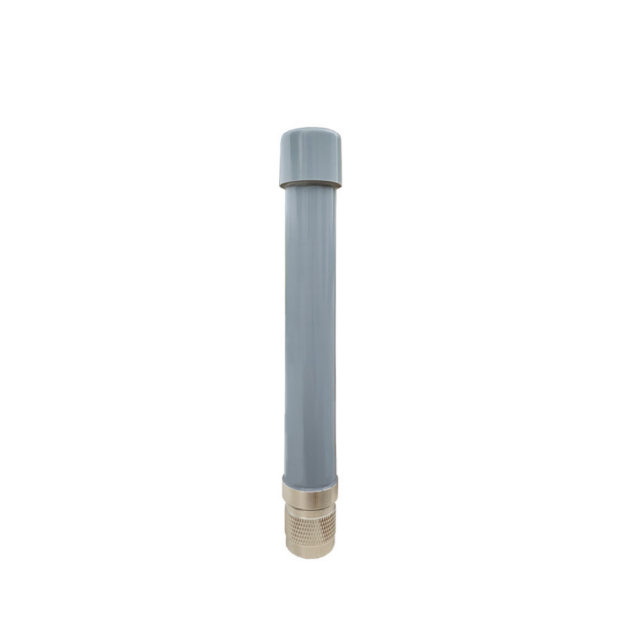

3. Durable Fiberglass Housing
Made of high-quality gray fiberglass, the housing is corrosion-resistant and UV-resistant, making it suitable for long-term outdoor use. Combined with a lightweight design (only 0.2kg), it is easy to install and durable.
4. Wide Operating Temperature Range and High Environmental Adaptability
With an operating temperature range of -40°C to +70°C, a humidity range of 5% to 95%, and a maximum wind speed of 200 km/h, it can operate stably in extreme climates and is suitable for field, maritime, and high-altitude operations.
5. Low VSWR (≤2.0) and 50Ω Impedance Matching
A voltage standing wave ratio as low as 2.0 ensures high signal transmission efficiency and minimal reflection loss. Paired with a standard 50Ω impedance, it is compatible with most communication devices and improves overall system performance.
Application Scenarios
●Industrial Wireless Communications: Used for factory automation, PLC remote control, and sensor data acquisition.
●Public Safety and Emergency Communications: Radio system relays for police, fire, and rescue teams.
●Remote Monitoring and Telemetry: Environmental monitoring, oil and gas pipeline monitoring, and agricultural IoT.
●Maritime and Marine Communications: Corrosion-resistant design suitable for use at sea or in coastal areas.
●Outdoor Broadcast and Television Relay: Extends signal coverage, suitable for mountainous or remote areas.
●Military and Defense Communications: High reliability and a wide temperature range meet demanding mission requirements.
FAQ
Q: What is the frequency range of this antenna?
A: The frequency range is 270-350MHz, making it suitable for various wireless communication systems in this band.
Q: The antenna gain is only 1dBi. Is it suitable for long-distance communications? A: 1dBi gain is suitable for short- to medium-range omnidirectional coverage. For longer range, a high-gain antenna or amplifier is recommended.
Q: Is the antenna waterproof and weather-resistant?
A: Yes. The fiberglass housing and wide humidity range (5%-95%) ensure excellent waterproof and weather resistance.
Q: What is the maximum input power? Will it overheat?
A: The maximum input power is 150W. With excellent heat dissipation, it will not overheat under normal use.
Q: What is the connector type? Is it compatible with common devices?
A: The input connector is an N-K type with a standard 50Ω impedance, making it compatible with a wide range of industrial radio equipment.
Q: What are the weight and dimensions of the antenna? Is it portable?
A: Dimensions are Φ20 × 300mm and weigh only 0.2kg, making it lightweight and portable, suitable for mobile or temporary deployments.
