GL-HB410
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) | 2491.75±4.08 MHz |
Polarization | RHCP |
Gain (dBi) | ≥2.0 dB |
VSWR | <2.0 |
Impendence | 50Ω |
Axial Ratio | ≤3dB |

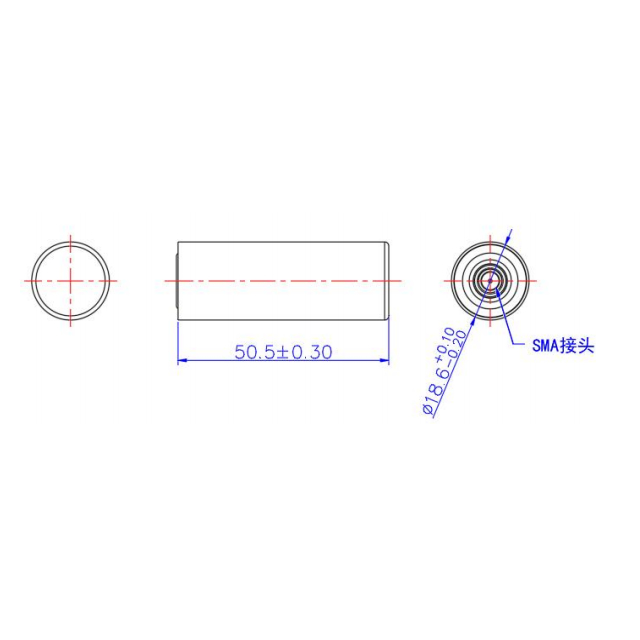

Dimensions-mm | ɸ18.6X50.5 |
Weight | ≤16g |
Operating Temperature | -40℃~+80℃ |
Storage Temperature | -45℃~+85℃ |
Connector | SMA-J |
Frequency Range (MHz) | 2491.75±4.08 MHz |
Polarization | RHCP |
Gain (dBi) | ≥2.0 dB |
VSWR | <2.0 |
Impendence | 50Ω |
Axial Ratio | ≤3dB |
Dimensions-mm | ɸ18.6X50.5 |
Weight | ≤16g |
Operating Temperature | -40℃~+80℃ |
Storage Temperature | -45℃~+85℃ |
Connector | SMA-J |
