Main technical specifications | |
Frequency Range (MHZ) | 2400 |
Gain(dBi) | >2 |
Connector | IPEX/IPX/U.FL |
Efficiency (dBi) | -0.89 |
Efficiency (%) | 81.46 |
Directivity (dB) | 5.12 |
Peak Gain Position (Theta) | 180.00 |
Peak Gain Position (Phi) | 330.00 |
Efficiency ThetaPol (%) | 20.90 |
Efficiency PhiPol (%) | 60.56 |
OUpper Hem. Efficiency (%) | 39.93 |
Lower Hem. Efficiency(%) | 41.54 |
Antenna width | 52mm |
Antenna length | 130mm |
Product Introduction

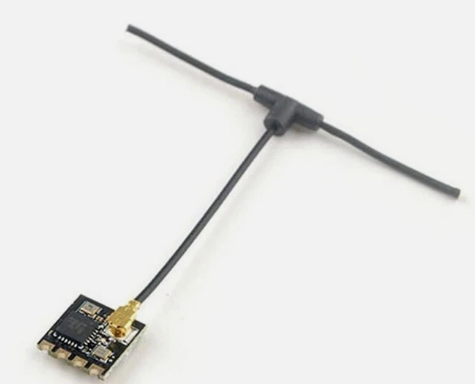

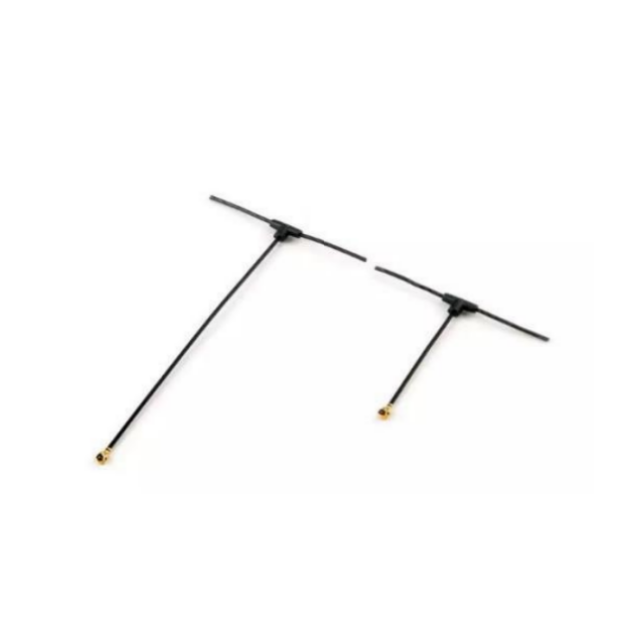

T-shape Omni-directional Design
The T-shape structure ensures 360° signal coverage, making it ideal for areas requiring uniform WIFI distribution, such as offices or small commercial spaces .
High Efficiency & Gain
With 81.46% efficiency and >2dBi gain, it minimizes signal loss and enhances WIFI performance, ensuring stable connectivity for multiple devices .
Flexible Connector Options
Supports IPEX/IPX/U.FL connectors, allowing easy integration with various WIFI modules, routers, and IoT devices .
Compact Size for Versatile Installation
Measuring 52mm in width and 130mm in length, it fits seamlessly into tight spaces, suitable for both indoor and semi-outdoor setups .
Optimized Directivity
Boasts 5.12dB directivity with peak gain positioned at Theta 180.00 and Phi 330.00, balancing coverage and signal focus .
Application scenarios
• Router Signal Enhancement: Replace stock antennas on home/office routers for wider 360° coverage
• IoT Device Upgrades: Boost connectivity for security cameras, smart sensors in warehouses
• Drone FPV Systems: Lightweight aerial solution with directional stability
• Ceiling-Mounted APs: Optimal for access points in drop-ceiling installations
• Lab Testing Equipment: Reliable reference antenna for RF testing setups
FAQ
Q: What devices support this antenna?
A: Compatible with any 2.4GHz device featuring IPEX/IPX/U.FL connectors (routers, drones, IoT modules).
Q: Is this directional or omnidirectional?
A: Omnidirectional with 360° horizontal coverage, peak gain at 180° Theta/330° Phi.
Q: How does the T-shape improve performance?
A: The design optimizes radiation pattern control, achieving 81.46% efficiency with balanced upper/lower hemisphere coverage.
Q: What's the actual gain value?
A: Exceeds 2dBi minimum with measured peak gain positioning for reliable signal projection.
Q: Can I use this outdoors?
A: Specifications don't include IP rating - recommended for indoor/protected outdoor installations.
Q: Why choose this over stick antennas?
A: The T-configuration provides superior directional control (5.12dB directivity) while maintaining omni coverage.
Q: How do I install it?
A: Mount horizontally via screw holes (see outline drawing). Ensure connector matches your device's port (IPEX/IPX/U.FL).
Q: What efficiency metrics matter most?
A: Total efficiency 81.46% (ThetaPol 20.90% + PhiPol 60.56%) ensures minimal power loss during transmission.
