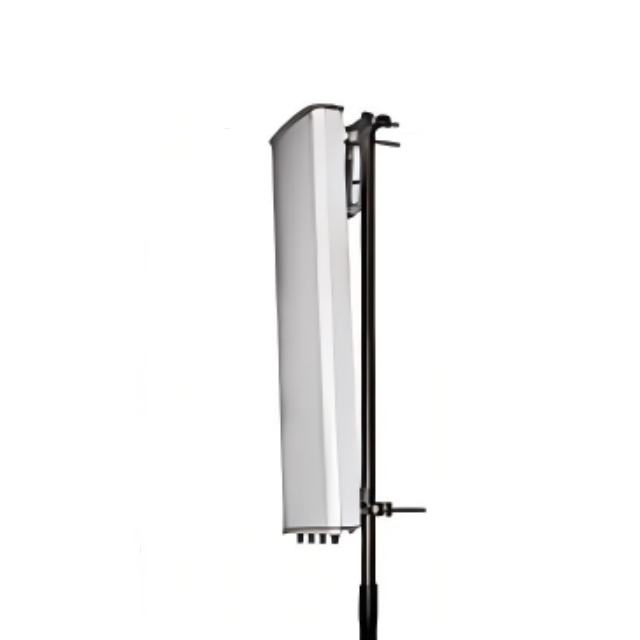

4 ports Panel Antenna | ||
GL17270D32 | ||
Electrical Specifications | ||
Frequency Range-MHz | 2* 1710 - 2690MHz | |
Gain | 20±dBi | |
VSWR | ≤1.5 | |
Polarization | 2*±45 ° | |
Horizontal beam width | 32±5° | |
Vertical beam width | 8±2° | |
Horizontal Beam Direction | - 30° , +30° | |
Horizontal side lobe suppression | ≥16dB | |
Front-to-back ratio-dB | ≥25dB | |
Isolation | ≥28dB | |
Intermodulation | ≤ - 107dBm@2 ×43dBm | |
Input Impedance-Ω | 50Ω | |
Maximum input power-W | 300W | |
Input connector type | 4 ×4.3 - 10 Female | |
Lightning protection | DC Ground | |
Mechanical Specifications | ||
Dimensions =height/width/depth | 1200×500×200mm | |
Packing size | 1275 ×564 ×295mm | |
Antenna weight | 12.5±0.3Kg | |
Rated Wind Velocity | 36.9m/s | |
Operating Humidity | 10-95% | |
Radome Color | gray | |
Radome material | FRP | |
Operating Temperature | -30 - 65°C | |
Installation Method | pole- mounting | |
Mounting hardware | Φ35 - Φ90mm | |
Mechanical tilt | 0 - 10° | |
Product Introduction
① Dual-Beam Intelligent Coverage
Adopting a unique horizontal dual-beam design with beam directions of -30° and +30°, it can simultaneously cover two adjacent areas, effectively improving network capacity and coverage efficiency, making it particularly suitable for high-density user scenarios.
② Four-Port High-Isolation Design
Equipped with four 4.3-10 female ports, port isolation ≥28dB effectively reduces signal interference, ensuring maximum MIMO performance, and improving data transmission rates and network stability.
③ Precision Narrow Beam Technology
An 8°±2° vertical beamwidth combined with a 32°±5° horizontal beamwidth enables precise signal focusing, achieving upper sidelobe suppression ≥16dB and a front-to-back ratio ≥25dB, significantly reducing neighboring cell interference.
④ High-Reliability Structural Design
Adopting a gray FRP radome, the device is weather-resistant, operates in temperatures ranging from -30°C to 65°C, and withstands wind speeds of 36.9m/s, making it suitable for a variety of harsh outdoor environments.
⑤ Convenient Installation and Flexible Adjustment
Supports Φ35-Φ90mm pole mounting, with a mechanically adjustable downtilt angle of 0-10°. Measuring 1200×500×200mm and weighing only 12.5kg, it's quick and easy to install.
Application Scenarios
●Stadiums and Large Events: The dual-beam design provides simultaneous coverage of the stands and the field, providing high-capacity communication services.
●Urban Hotspots: Suitable for capacity offloading in high-density scenarios such as commercial areas and transportation hubs.
●Highway Coverage: The narrow beam characteristics enable directional coverage along the highway, reducing signal crosstalk.
●Rural Wide Coverage: High gain enables long-distance signal transmission, and the dual beams can cover two villages.
●5G Network Deployment: Supports the 2.6GHz frequency band, making it suitable for 5G NR base station deployment.
FAQ
Q: What are the unique beam characteristics of this antenna?
A: The horizontal dual-beam design, with two beams oriented at -30° and +30°, can simultaneously cover two adjacent areas, increasing network capacity.
Q: What network standards does the antenna support?
A: It supports the 1710-2690MHz frequency band and is fully compatible with 4G LTE and 5G NR networks.
Q: What are the connector types? Do I need an adapter?
A: It uses four 4.3-10 female connectors. If your device's connector doesn't match, you'll need to use the appropriate adapter.
Q: What is the antenna's protection performance?
A: The FRP radome provides excellent protection, operating in temperatures from -30°C to 65°C, and withstanding wind speeds of 36.9m/s, making it suitable for harsh environments.
Q: What precautions should be taken during installation?
A: It supports Φ35-Φ90mm pole mounting. Ensure it is securely mounted. The mechanical downtilt angle is adjustable from 0-10°.
Q: Does it have lightning protection?
A: It supports DC grounding for lightning protection, enhancing safety for outdoor use.
