GL5800-160
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |

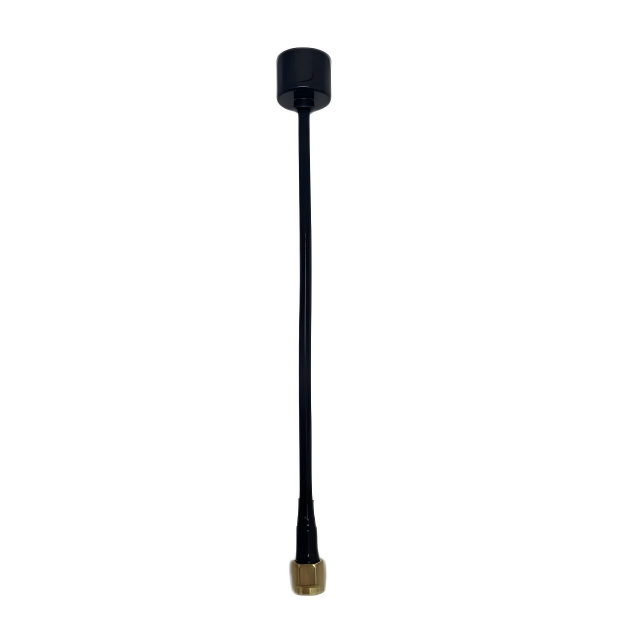

5.8G Antenna | |
GL5800-165 | |
Electrical Index | |
Frequency-MHz | 5500-5800 |
Gain-dBi | 4.5-6 |
VSWR | ＜1.5 |
Normal Impedance -Ω | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG141 black |
Connector | SMA male |
Antenna Dimension-mm | Height 160mm |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40~＋85 |
Humidity-﹪ | 5~95 |
Product Introduction
Broad Frequency Range (5.5-5.8GHz)
Ideal for high-speed wireless communication, Wi-Fi 6E, and industrial IoT applications requiring stable signal transmission.
High Gain (4.5-6dBi) & Low VSWR (<1.5)
Ensures minimal signal loss and extended coverage for point-to-point links or drone telemetry systems.
Extreme Environmental Durability
Operates in temperatures from -40℃ to +85℃ and withstands vibrations (10-55Hz/1.5mm amplitude), perfect for outdoor or industrial settings.
Compact & Lightweight Design (160mm Height)
Easy to integrate into space-constrained devices like robotics, smart sensors, or portable equipment.
Certified Reliability
ROHS-compliant construction and RG141 cable with SMA male connector ensure long-term performance in demanding conditions.
Application scenarios
Industrial IoT: Enable real-time data transmission in factory automation systems.
Drone Communication: Maintain stable control and telemetry links in challenging environments.
Wi-Fi 6E Networks: Extend coverage for high-density urban or enterprise networks.
Smart Agriculture: Support wireless sensor networks in remote farmlands.
Military & Defense: Provide robust communication for field operations.
FAQ
Q:Is this antenna compatible with Wi-Fi 6E?
A:Yes, its 5.5-5.8GHz range supports Wi-Fi 6E applications.
Q:What mounting options are available?
A:Designed for integration into devices; custom brackets can be requested.
Q:Can it operate in heavy rain?
A:While not IP-rated, its rugged build suits harsh environments—additional sealing may be needed.
Q:What cable length is included?
A:Standard RG141 cable length is unspecified; contact for customization.
Q:Does it support circular polarization?
A:No, it uses linear polarization optimized for directional applications.
Q:Is the SMA connector reverse-polarity (RP-SMA)?
A:No, it features a standard SMA male connector.
Q:How to ensure signal stability in vibrations?
A:Tested for 2 hours at 10-55Hz vibrations, making it suitable for mobile equipment.
