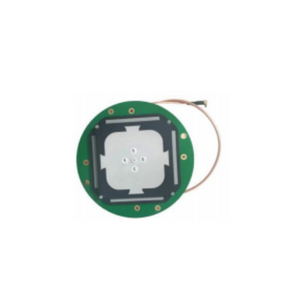

1920MHZ High precision antenna

Uplink Frequency

1920~2025 MHz

Uplink VSWR

≤2.0 (Bandwidth: 10/20/30/40 MHz)

Uplink Polarization Gain (RHCP)

≥0.0 dBi (Elevation: 30°)
≥3.0 dBi (Elevation: 60°)
≥5.0 dBi (Elevation: 90°)

Downlink Frequency

3440~3660 MHz

Downlink VSWR

≤2.0 (Bandwidth: 10/20/30/40 MHz)

Downlink Polarization Gain (LHCP)

≥0.0 dBi (Elevation: 30°)
≥3.0 dBi (Elevation: 60°)
≥5.0 dBi (Elevation: 90°)

Beamwidth

≥120°

Uplink-Downlink Isolation

≤-20 dB

Dimensions

≤Φ68×13 mm

Weight

≤150 g

Connector

MCX (Customizable)

Humidity

95% Non-condensing

Storage temperature

-55℃ to +70℃

Operating temperature

-40℃ to +65℃
