GL771
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

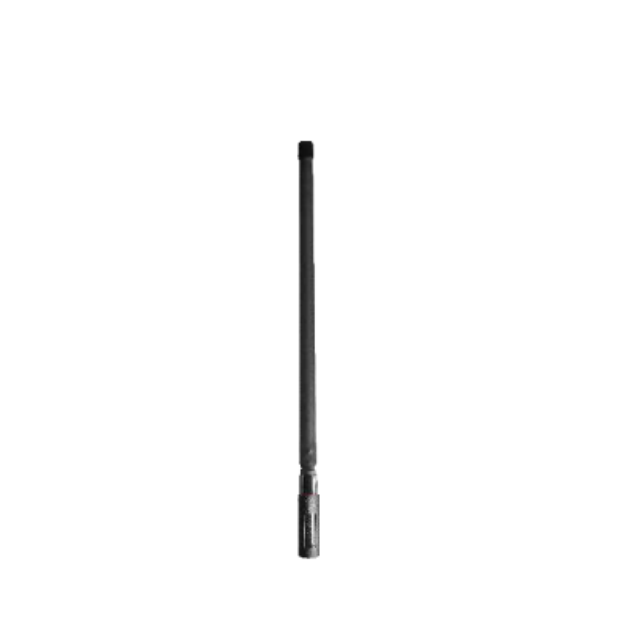

Item | Hand Held Antenna |
PN | GL771 |
Frequency Range (MHz) | 134-174/400-520 |
Impedance (Ω) | 50 |
V.S.W.R | <1.5 |
Gain (dBi) | 2.15/3.2 |
Connector | BNC/SMA |
Length-mm | 470 |
Weight | 75g |
Product Introduction
Ultra-Wideband Professional Coverage:Achieves breakthrough ultra-wideband coverage in the 134-174MHz VHF and 400-520MHz UHF bands, perfectly compatible with various professional communication standards, providing a one-stop antenna solution for different types of wireless equipment.
Intelligent Gain Optimization Design:Employs band-adaptive gain technology, providing 2.15dBi gain in the VHF band and boosting to 3.2dBi gain in the UHF band. Precise optimization is performed for the propagation characteristics of different frequency bands, ensuring maximum performance in each band.
Dual-Interface Universal Compatibility: Innovatively integrates both BNC and SMA industry standard interfaces, allowing direct connection to most professional wireless equipment without adapters, greatly improving the applicability and deployment flexibility of the equipment.
Precision Structural Engineering Design:A scientifically calculated ideal length of 470mm, combined with a lightweight design of only 75 grams, using aerospace-grade aluminum and special plastic composite structures, achieving excellent portability and durability while ensuring electrical performance.
Intelligent Gain Optimization Design: Superior Transmission Performance
Through a sophisticated multi-band matching network design, it maintains an excellent VSWR of <1.5 across the wide 186MHz VHF band and 120MHz UHF band, ensuring efficient power transmission across the entire frequency range.
Application Scenarios
●Cross-departmental Emergency Communication: Ensuring interoperability between devices on different frequency bands during collaborative operations involving multiple departments such as fire rescue, medical emergency services, and public security command.
●Professional Radio Maintenance: Professional application scenarios requiring coverage of multiple frequency bands, such as telecommunications maintenance, power line inspection, and railway communication.
●International Business Support: Communication assurance for multinational corporations and international engineering projects, adapting to frequency planning differences in different countries.
●Amateur Radio Applications: Full-band communication, satellite communication, and experimental research for amateur radio enthusiasts.
●Special Industry Communication: Special communication needs requiring wide-band coverage in maritime, aviation, and military sectors.
FAQ
Q: What is the frequency coverage of the GL771 antenna?
A: It covers 134-174MHz in the VHF band and 400-520MHz in the UHF band, providing wide frequency compatibility.
Q: Why are there different gain values for different bands?
A: The antenna provides 2.15dBi gain in the VHF band and 3.2dBi gain in the UHF band, optimized for the specific propagation characteristics of each frequency range.
Q: What connectors are available on this antenna?
A: It features both BNC and SMA connectors to accommodate virtually all professional radio equipment.
Q: How long is the antenna and is it portable?
A: The antenna is 470mm long but weighs only 75g, making it highly portable despite its professional length.
Q: Can this antenna be used for both commercial and amateur applications?
A: Yes, its wide frequency coverage makes it suitable for both professional commercial use and amateur radio activities.
Q: What is the V.S.W.R performance across such wide frequency ranges?
A: The V.S.W.R is maintained below 1.5 across both operating bands, ensuring excellent performance throughout.
