GL-DY401
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |

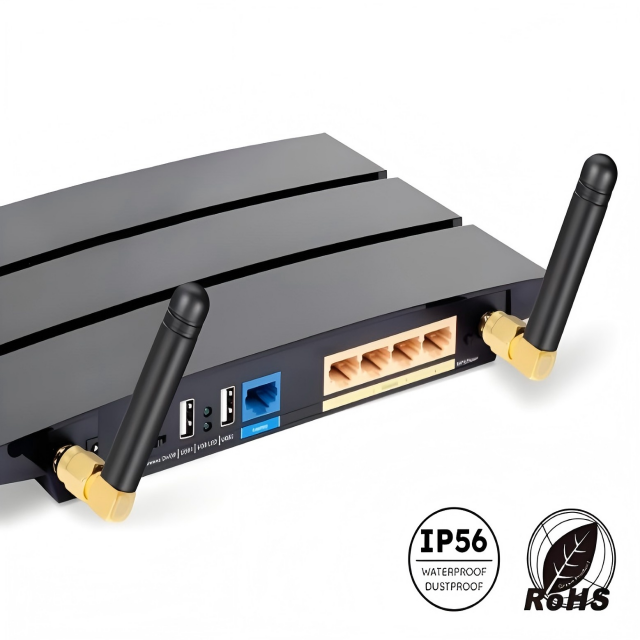

GSM Rubber Antenna | |
GL-DY401 | |
Electrical Index | |
Frequency-MHz | 890-960/1710-2170 |
Gain-dBi | 2.5 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA R/A male |
Antenna Dimension-mm | Ø10.5*50.2 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY401 | GL-DY418 | GL-DY465 |
| Frequency range-mhz | 890-960/1710-2170 | 824-960 | 2400-2500 |
| Gain-dBi | 2.5 | 3 | 3 |
| Antenna Dimension-mm | Ø10.5*50.2 | Ø12.5*110 | Ø13*178 |
Dual-Band GSM Coverage - Supports 890-960MHz and 1710-2170MHz frequencies for comprehensive 2G network compatibility
Compact & Durable Design - Measures just Ø10.5×50.2mm with rugged rubber construction for harsh environments
Reliable 2.5dBi Gain - Provides stable signal strength with VSWR <2.0 for minimal signal loss
Industrial-Grade Performance - Operates in extreme temperatures (-40°C to +85°C) and humidity (5-95%)
Standard SMA Connectivity - SMA R/A male connector for easy integration with various GSM devices
Industrial IoT Devices - Connects sensors and controllers in factory automation systems
Fleet Management Systems - Provides reliable communication for vehicle tracking devices
Remote Monitoring Equipment - Ideal for environmental sensors in isolated locations
POS Terminals - Ensures stable connectivity for payment systems in retail environments
Backup Communication - Maintains 2G connectivity for emergency systems when 3G/4G fails
FAQ
Q: What is the gain of the GSM Rubber Antenna GL-DY401?
A: The GSM Rubber Antenna boasts a gain of 2.5 dBi. This level of gain ensures improved signal reception and transmission, making it ideal for 3G and GSM applications.
Q: What frequency ranges does this antenna GL-DY401 support?
A:This antenna operates across a wide frequency range, specifically 890-960 MHz and 1710-2170MHz. This versatility allows it to effectively handle various GSM and 3G communication needs.
Q: What type of connectors are available for the GSM Rubber Antenna GL-DY401
A: Our antenna features two connector types: a straight head connector and an elbow connector. Both options come with an SMA R/A male connector for easy and efficient installation.
Q: How do I install the GSM Rubber Antenna GL-DY401?
A:The antenna utilizes a screw mounting installation method. This ensures a secure connection and reliable performance, allowing for a hassle-free setup process.
Q: What are the dimensions and weight of the GSM Rubber Antenna GL-DY401?
A:The Smaller GSM Rubber Antenna is designed to be compact, measuring only 50mm in length. Its lightweight construction allows for easy handling and installation without adding significant weight to your project.
Q: Is this antenna GL-DY401 available in different colors?
A: Yes! We offer the Smaller GSM Rubber Antenna in two color options: white and black. Choose the color that best complements your setup and aesthetic preferences.
Q: What type of polarization does the GSM rubber antenna GL-DY401 have?
A: The antenna features linear polarization, which helps maintain better signal integrity and reception quality, allowing for more reliable communication.
Q: What applications are ideal for this GSM rubber antenna GL-DY401?
A: GSM Rubber Antenna is perfect for various applications including mobile networks, telecommunications, and IoT devices that require reliable 3G and GSM connections. Its compact size and versatility make it an excellent choice for both personal and professional use.
For the specific parameters and sizes of this product, please click the right email or telephone to consult us.
