High precision B3 band Low power GPS antenna

Product Introduction

1.Optimized for BeiDou B3 band, high positioning accuracy

The antenna is designed for the BeiDou B3 navigation band, supporting high-precision positioning and timing, suitable for professional scenarios such as surveying and deformation monitoring.

2.Built-in high-gain LNA, strong signal reception

The LNA gain reaches 30±2dB, with a low noise figure, significantly improving signal reception sensitivity and maintaining stable connection even in complex environments.

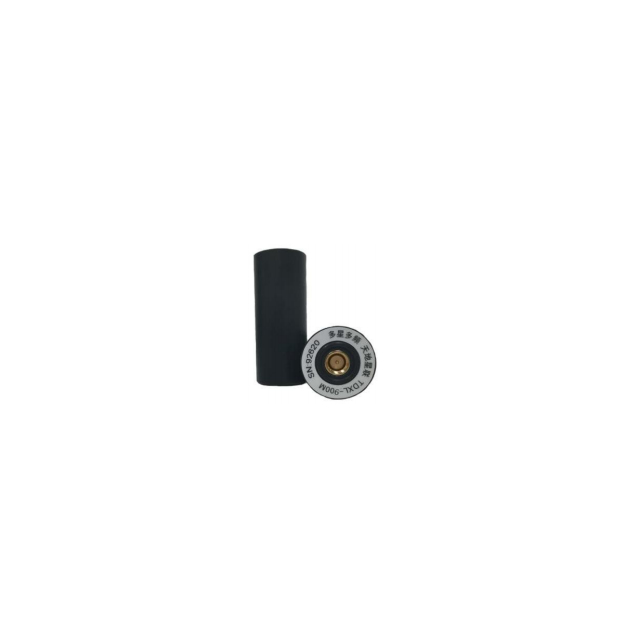

3.Ultra-small size and lightweight design

Measuring only Φ23×56mm and weighing less than 16g, it is suitable for integration into space-constrained devices such as drones, handheld terminals, and wearable devices.

4.Wide voltage input, strong compatibility

Supports a wide voltage range of 3.0-16V DC, adaptable to various receivers and embedded systems, reducing power supply design complexity.

5.Omnidirectional coverage, strong environmental adaptability

Provides 360° horizontal omnidirectional coverage, axial ratio ≤3dB, operating temperature -40℃~+80℃, humidity 95%, meeting the requirements for long-term stable operation in outdoor and industrial environments.

Application Scenarios

●High-precision surveying and geographic information systems (e.g., RTK measurement, deformation monitoring)

●Intelligent driving and high-precision vehicle navigation systems

●UAV precision agriculture and aerial surveying modeling

●Portable positioning terminals and handheld data acquisition devices

●IoT high-precision positioning nodes (e.g., smart logistics, asset management)

FAQ

Q: Which satellite systems does this antenna support?

A: Designed specifically for the BeiDou B3 band, suitable for BeiDou high-precision positioning. Customization to support other GNSS systems is also available upon request.

Q: Is the antenna waterproof?

A: The document does not explicitly state the IP rating. Indoor use or use in an enclosed environment is recommended. External protection is recommended for outdoor use.

Q: What are the installation methods?

A: It can be installed using the included bracket or adhesive, flexibly adapting to various equipment structures. Specific installation accessories can be consulted for optional accessories.

Q: Does the operating voltage range support vehicle 12V systems?

A: Supports a wide voltage input of 3-16V, allowing direct connection to vehicle 12V power systems without additional voltage conversion.

Q: Is it suitable for high-speed mobile scenarios?

A: Omnidirectional coverage and high stability design, suitable for high-speed mobile platforms such as vehicles and drones.

Q: Does it support multiple frequency bands or dual systems?

A: The standard version uses a Beidou B3 single-band antenna. Customized solutions are available for multi-frequency band or multi-system support.
