GL-DY436-433
Asialeren
8517710000
100
Accepted
1000/day
| Quantity: | |
|---|---|
| PDF Export | |
| |
GL-DY436-433 | |
Electrical Index | |
Frequency-MHz | 430-450 |
Gain | 5dBi |
VSWR | ＜2.5 |
Bandwidth(MHz) | 100 |
Radiation | Omni |
Normal Impedance-Ω | 50 |
Polarization | Vertical |
Mechanical Index | |
Connector | TNC male |
Antenna Dimension-mm | Ø13*195 |
Radome Material | ABS |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋60 |
Differences between similar antennas
P/N | GL-DY436 | GL-DY491 | GL-DY490 |
Gain | 5 | 3 | 2 |
V.S.W.R. | 2.5 | 2.0 | 2.0 |
Product Introduction
Wide-band 433MHz Coverage
Operates across 430-450MHz with a 100MHz bandwidth, ideal for ISM band applications like remote controls, smart meters, and IoT sensors 。
High Omni-directional Gain
Delivers 5dBi gain with 360° radiation pattern, ensuring uniform signal distribution for long-range wireless communication in all directions 。
Durable ABS Radome Design
Constructed with ABS material, the antenna resists impacts and environmental factors, suitable for both indoor and outdoor use 。

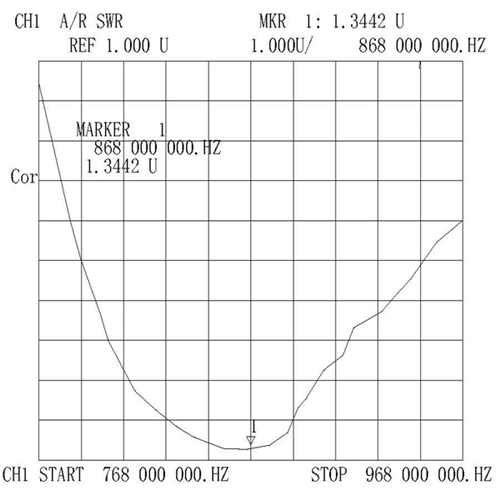

Stable Signal Transmission
With VSWR < 2.5 and 50Ω impedance, it minimizes signal loss and interference, ensuring reliable performance for low-power wireless systems 。
RoHS Compliance & Wide Temperature Range
Meets environmental standards and operates from -40℃ to +60℃, making it suitable for harsh industrial and outdoor environments 。

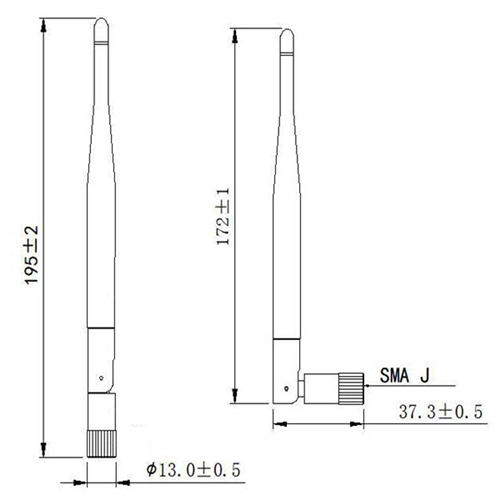

Dimension drawing
Application scenarios
Industrial IoT: Tank-level sensors, factory automation, SCADA systems.
Fleet Management: GPS trackers, vehicle telematics.
Smart Agriculture: Livestock tags, soil moisture monitors.
Remote Controls: Drones, garage doors, industrial equipment.
Outdoor Monitoring: Weather stations, wildlife trackers.
Q: What devices is this antenna compatible with?
A: Any 433MHz device with a TNC female port: IoT gateways, LoRa modules, remote controls, and industrial radios.
Q: Is it waterproof?
A: Yes, the rubber radome provides IP67-level water/dust resistance.
Q: Can it handle outdoor installation?
A: Absolutely. Its -40°C to +60°C range and UV-resistant rubber suit harsh environments.
Q: Does "rubber" mean the antenna is flexible?
A: Yes, the rubber housing allows slight bending (avoid sharp bends) for tight spaces.
Q: Is this antenna RoHS compliant?
A: Yes, it meets RoHS environmental standards.

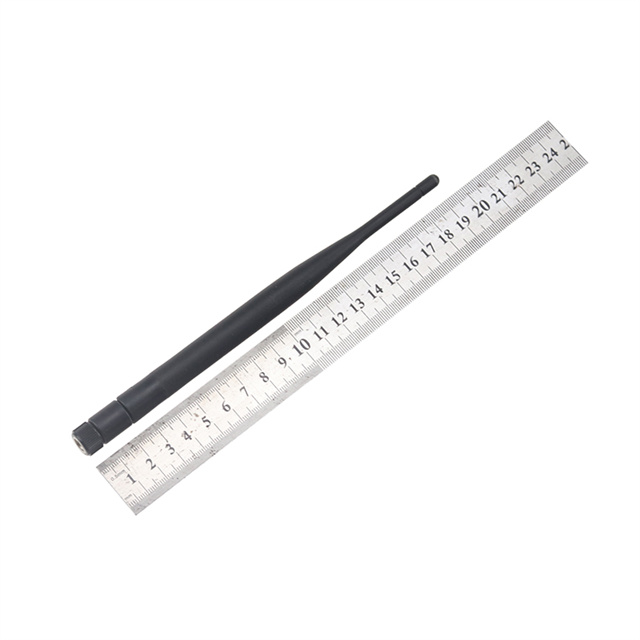

Q: What’s the exact length?
A: 195mm (≈7.7 inches) with a 13mm diameter.

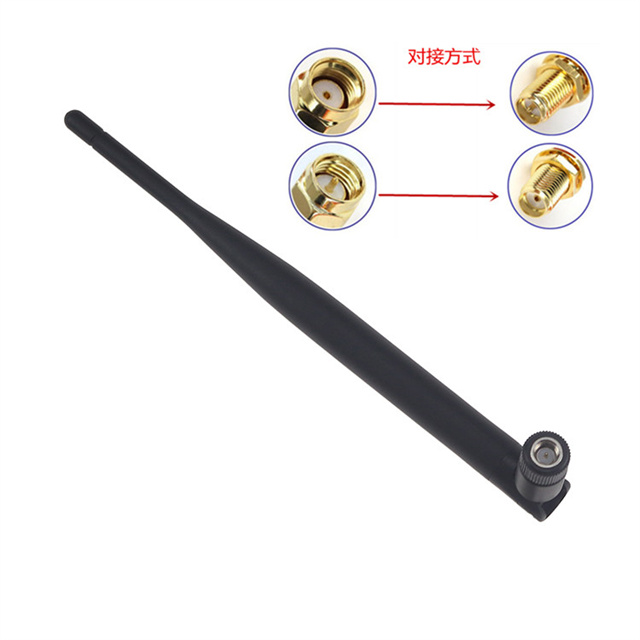

Q: Can I customize the connector?
A: Contact us (info@global-antenna.com) for SMA, RP-SMA, or other connector options.
| |
