English
GL101
Asialeren
8517710000
100
Accepted
10000/day
| Quantity: | |
|---|---|
| PDF Export | |
Item: 5G Magnet Antenna | |
PN: GL101 | |
Electrical Index | |
Frequency-MHz | 698-960/1710-3800 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Gain-dBi | 4 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | SMA male |
Antenna Dimension-mm | Ø36*160 |
Installation Way | Magnet |
Material | ABS |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar antennas
P/N | GL-DY101 | GL-DY826 | GL-DY100 |
Gain | 4 | 4 | 5 |
V.S.W.R. | 1.5 | 1.5 | 2 |
Product Introduction
1.Superior Signal Performance, Wide Frequency Band Coverage** Supports dual-band operation (698-960MHz and 1710-3800MHz), perfectly compatible with 4G LTE, 3G, and some 5G networks. VSWR < 1.5 ensures efficient and stable signal transmission while minimizing energy loss.
2.Strong Magnetic Base, Easy and Stable Installation** Integrated magnetic mounting allows for quick and secure attachment to surfaces such as car roofs and metal cabinets. A 3-meter RG174 cable is provided for convenient cabling without affecting device mobility.
3.Rugged and Durable Design, Adaptable to Harsh Environments** Made of ABS housing, passed vibration testing (10-55Hz/1.5mm amplitude for 2 hours), operating temperature range -40°C to +85°C, and humidity range 5%-95%, capable of withstanding various harsh outdoor conditions.
4.High Gain Omnidirectional Radiation, Optimized Communication Quality** 4dBi gain combined with linear polarization provides uniform omnidirectional coverage, effectively enhancing signal reception strength, especially suitable for mobile communications such as automotive applications.
5.Environmentally Compliant and Compact Design
Compliant with RoHS environmental standards, the antenna measures only Ø36×160mm, making it compact, lightweight, and space-saving, balancing high performance with environmental friendliness.
Application Scenarios

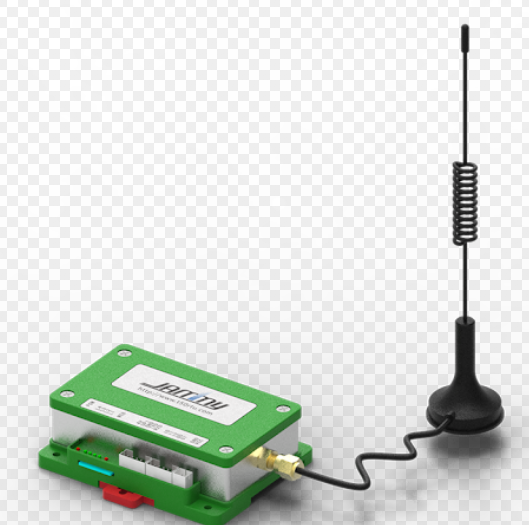

Vehicle Communication Systems: Attached to the vehicle roof, providing a stable mobile network connection for vehicle routers and GPS trackers.
Temporary Monitoring Point Deployment: Monitoring equipment can be quickly installed on metal surfaces to enable video data transmission in temporary areas.
IoT Device Signal Enhancement: Signal reinforcement for remote IoT devices .
Emergency Communication Equipment: Rapid deployment at disaster relief sites, providing immediate network access for communication equipment.
Indoor and Outdoor Industrial Applications: Ensuring communication for equipment in metal environments such as factory workshops and warehouses.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What frequency ranges does the 5G Magnet Antenna support?**
A: The 5G Magnet Antenna supports a wide frequency range from 698 to 960 MHz and from 1710 to 3800 MHz. This versatility allows it to be compatible with various 4G and 5G devices, ensuring optimal performance across different networks.
Q: What is the length of the RG174 cable included with the antenna?**
A: The 5G Magnet Antenna comes with a 3-meter RG174 cable, providing ample length for flexible installation in various environments. This allows for easy setup and optimal placement for enhanced signal reception.
Q: What type of connector does this antenna use?
A: The antenna features an SMA male connector, making it easy to connect to a variety of devices and equipment. This standard connector type ensures compatibility with numerous network devices and enhances installation simplicity.
Q: How is the antenna installed?
A: The 5G Magnet Antenna utilizes a magnet installation method, allowing for quick and hassle-free mounting on any magnetic surface. This not only simplifies the installation process but also offers the ability to reposition the antenna as needed for improved signal strength.
Q: What materials are used to construct the antenna?
A: Our 5G Magnet Antenna is made from high-quality ABS material, known for its durability and resistance to environmental factors. This ensures that the antenna can withstand various outdoor conditions while maintaining optimal performance.
Q: What are the dimensions of the antenna?
A: The antenna measures Ø36*160mm, a compact size that allows for efficient space utilization while offering strong signal capabilities. Its design ensures discreet installation without compromising performance.
Q: Is the 5G Magnet Antenna environmentally friendly?
A: Yes, the 5G Magnet Antenna is ROHS compliant, meaning it is manufactured in accordance with strict environmental guidelines. This commitment to sustainability ensures that the product is eco-friendly while providing powerful performance.
