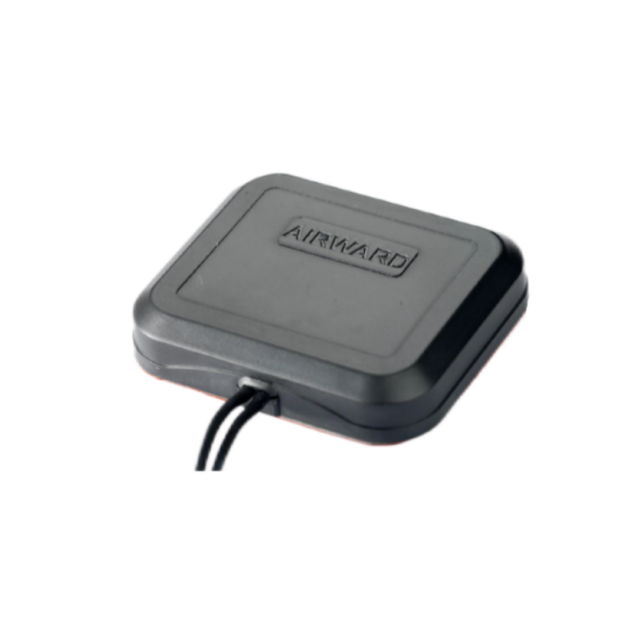

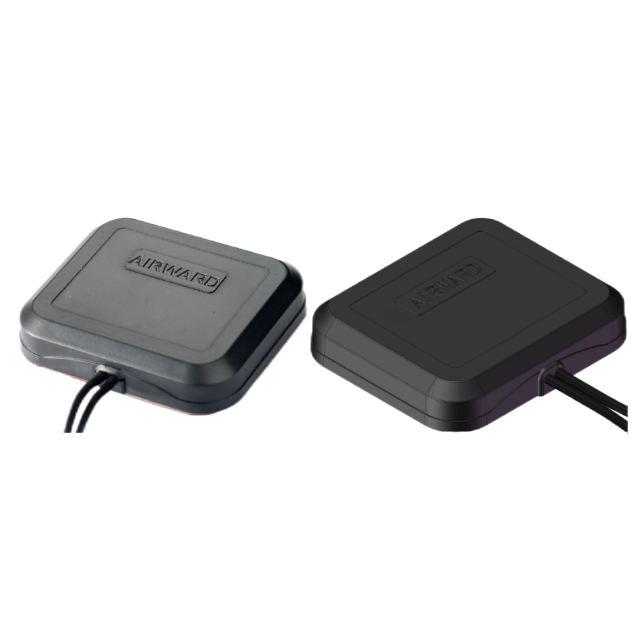

GL-DY010L
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | ||
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±3MHz |
Band Width | CF±5MHz | ||
Polarization | RHCP | ||
Gain | 2dBic（Zenith） | ||
V.S.W.R | ＜1.5 | ||
Impedance | 50Ω | ||
Axial Ratio | 3dB（max） | ||
LNA | Gain | 28±2dB | |
Noise Figure | ＜1.5dB | ||
V.S.W.R | ＜2.0 | ||
Supply Voltage | 2.2~5V DC | ||
Current Consumption | ＜15mA | ||
LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
V.S.W.R（min） | ＜3.0 | ||
Polarization | Linear | ||
Gain | 2dBi | ||
Impedance | 50Ω | ||
Mechanical | Cable | RG174 | |
Connector | SMA/MCX/FAKRA or others | ||
Radome Material | ABS | ||
Mounting Method | Adhesive/Magnet | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP66 | ||
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | ||
Environmentally Friendly | ROHS Compliant | ||
Product Introduction
Dual-Function Precision: Combines high-sensitivity GPS reception (1575.42MHz ±3MHz, RHCP polarization, 2dBic gain) and wide-band LTE connectivity (698-960MHz & 1710-2690MHz) in a single unit, simplifying installation and saving space.
Enhanced Signal Clarity: Features a built-in Low Noise Amplifier (LNA) for GPS (28dB±2 gain, <1.5dB noise figure) ensuring reliable satellite lock even in weak signal areas, critical for accurate tracking.
Rugged & Reliable Design: Built to withstand harsh environments with an IP66 waterproof rating, operating from -40°C to +85°C, and resistant to vibration (10-55Hz), making it ideal for automotive and industrial use.
Versatile Installation Options: Flexible mounting with adhesive or integrated magnet, coupled with cable options (RG174) and connector choices (SMA, MCX, FAKRA, etc.) to fit diverse application needs.
Optimized Performance & Compliance: Low VSWR (<1.5 GPS, <3.0 LTE) and 50Ω impedance ensure efficient signal transfer. Environmentally compliant with ROHS standards.
Application scenarios
Fleet management and vehicle tracking systems
Asset tracking for logistics and containers
Telematics control units (TCU) in commercial vehicles
IoT remote monitoring stations in harsh environments
Marine and outdoor navigation devices requiring GPS + LTE
FAQ
Q: Does this antenna support both GPS and cellular networks?
A: Yes, the GL-DY010L is a combo antenna designed specifically for GPS (L1 band) and 4G LTE networks (covering 698-960MHz & 1710-2690MHz).
Q: Why is the built-in GPS LNA important?
A: The 28dB Low Noise Amplifier significantly boosts the weak GPS satellite signal (<1.5dB noise figure), providing a stronger, cleaner signal to your receiver for faster acquisition and better accuracy, especially in challenging environments.
Q: How is this antenna mounted?
A: It offers flexible mounting options: either using the strong integrated magnet (ideal for metal surfaces) or adhesive backing (for non-metal surfaces), simplifying installation on vehicles or equipment.
Q: Is this antenna suitable for outdoor use?
A: Absolutely. With its IP66 waterproof rating, operating temperature range of -40°C to +85°C, and vibration resistance, it's built to perform reliably in demanding outdoor and mobile environments.
Q: What connectors are available?
A: Standard cable is RG174. We offer various connector options including SMA, MCX, or FAKRA. Please specify your requirement when ordering.
Q: What does "RHCP" for the GPS antenna mean?
A: RHCP stands for Right-Hand Circular Polarization. This is the polarization type used by GPS satellites. Our antenna is optimized to receive these signals efficiently. The LTE antenna uses Linear polarization.
Q: Is the antenna waterproof?
A: Yes, it features an IP66-rated radome (made of ABS plastic), meaning it's dust-tight and protected against powerful water jets, making it highly weatherproof.
Q: Is this antenna environmentally compliant?
A: Yes, the GL-DY010L is compliant with the ROHS (Restriction of Hazardous Substances) directive.
