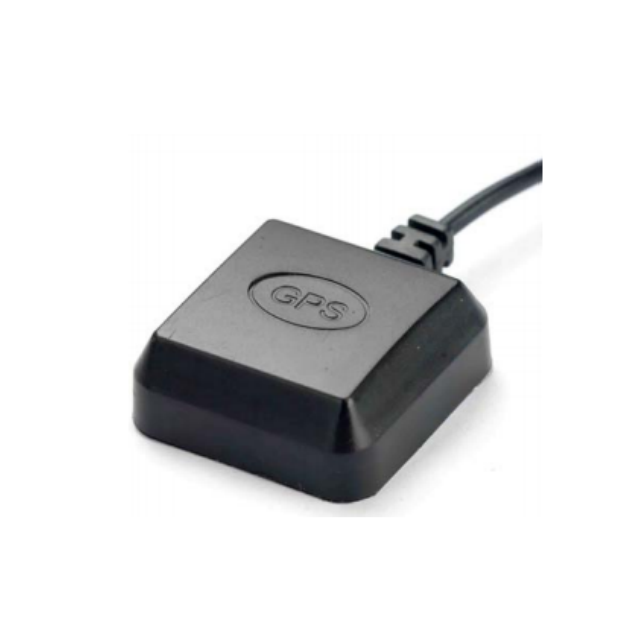

GPSGNSS Antenna | |
GL-DY004 | |
Electrical Index | |
Frequency-MHz | 1575.42-1610 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Polarization | RHCP |
Axial Ratio | 3dB(max) |
LNA Gain | 28dBi |
Noise Figure | ＜1.5 |
Supply Voltage | 2.2-5V DC |
Current Consumption | ＜15mA |
Mechanical Index | |
Cable type | RG174 or LMR100 |
Connector | SMA male |

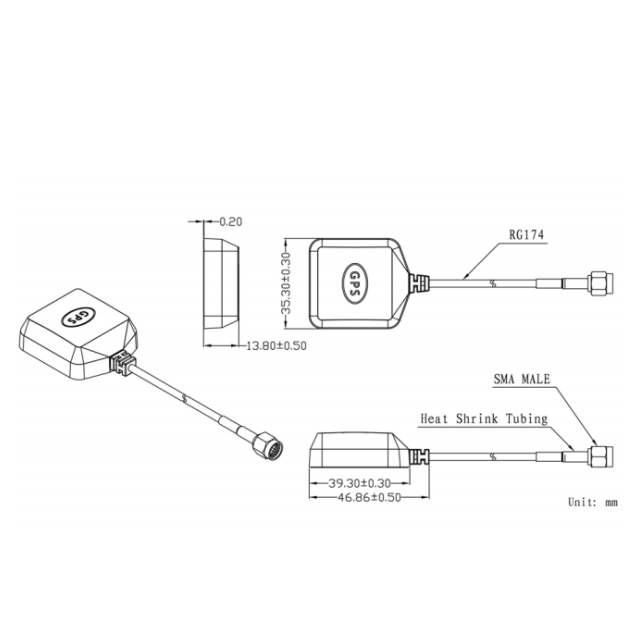

Antenna Dimension-mm | 39.3*35.3*13.8 |
Installation Way | Magnet or Adhesive |
Ingress Protection | IP65~IP67(exclude cable outlet) |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Wideband Precision Positioning: Supporting the 1575.42-1610MHz frequency range, combined with RHCP circular polarization design (axial ratio ≤ 3dB), it ensures efficient satellite signal acquisition even in complex environments, improving positioning accuracy and stability.
2. High-Performance Signal Processing: Equipped with a 28dBi high-gain low-noise amplifier (noise figure <1.5dB), it effectively enhances weak signal reception, reduces environmental interference, and ensures accurate positioning data.
3. Flexible Installation and Adaptability: Available with either magnetic or adhesive mounting options, it comes with an SMA male connector and RG174/LMR100 cable for quick adaptation to a variety of devices, meeting installation requirements in diverse scenarios.
4. Strong Environmental Adaptability: With an IP65-IP67 rating (excluding the cable outlet), it operates stably in a wide temperature range of -40°C to +85°C and 5%-95% humidity. It has also passed 10-55Hz vibration testing, making it suitable for harsh outdoor environments.
5. Energy-saving and environmentally friendly: Compliant with ROHS environmental standards, it features a 2.2-5V DC wide power supply and current consumption of less than 15mA, ensuring low power consumption while maintaining performance, making it suitable for long-term outdoor deployment.
Application Scenarios
In-Vehicle Navigation: Magnetic roof mounting, anti-vibration design for rugged terrain
Ship Positioning: IP67 waterproof for high humidity and salt spray environments at sea
UAV Mapping: 28dBi gain ensures high-altitude signal stability
Agricultural Machinery: Wide operating temperature range (-40°C to 85°C) for extreme cold and high temperature operations
IoT Asset Tracking: Ultra-low power consumption of <15mA extends locator battery life
FAQ
Q: What frequency range does the GL-DY004 support?
A: It supports the frequency range of 1575.42-1610MHz.
Q: What is the polarization type of this antenna?
A: It uses RHCP.
Q: What is the gain of the LNA in the GL-DY004?
A: The LNA gain is 28dBi.
Q: What power supply does the antenna require?
A: It works with a 2.2-5V DC power supply.
Q: How is the antenna installed?
A: It can be installed via magnet or adhesive.
Q: What is the protection level of the antenna?
A: It has an IP65~IP67 protection level
