GPS/Glonass Antenna

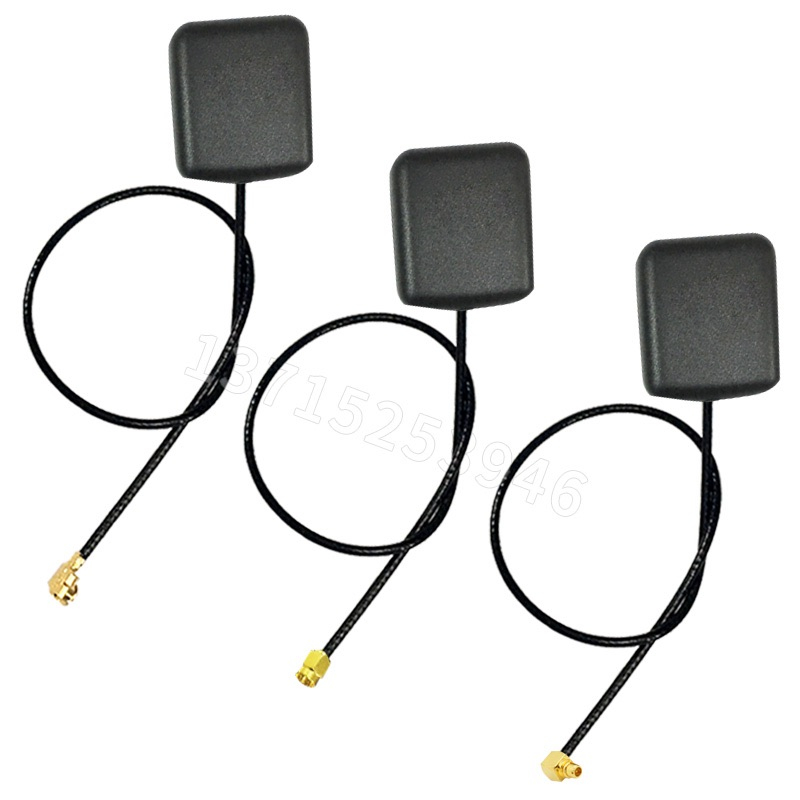

GPS Antenna with MCX R/A male connector | |
GL006 series | |
Electrical Index | |
Frequency-MHz | 1575.42±1/1601-1610 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Polarization | RHCP, |
Axial Ratio | 3dB(max) |
LNA Gain | 28±2dB |
Noise Figure | ＜1.5 |
Supply Voltage | 3-5V DC |
Current Consumption | 5-15mA |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | customized |
Antenna Dimension-mm | 46*38.5*13.5 |
Installation Way | Magnet or Adhesive |
Ingress Protection | IP65~IP67(exclude cable outlet) |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Full Interface Customization
Supports customization of the full range of SMA/MCX/FAKRA/TNC connectors (48-hour delivery), perfectly matching the specialized interface requirements of vehicle-mounted head units, industrial control equipment, and other applications.
2. Industrial Triple-Protection
IP67 waterproof and dustproof (excluding cable ports), wide operating temperature range of -40°C to 85°C, and 55Hz vibration resistance (2-hour test), ensuring protection against off-road splashes, extreme cold, and shock from construction machinery.
3. Intelligent Power Consumption Control
5-15mA dynamic current (automatically boosts to 15mA in weak signal conditions), extending battery life by 50% compared to fixed-power antennas. Ideal for IoT trackers and portable mapping devices.
4. Dual-Mode Ultra-Quick Installation
Strong magnetic mount (1.5kg load capacity) with 3M VHB adhesive allows for 3-second deployment on vehicle roofs or metal chassis, eliminating the need for traditional drilling.
5. Dual-band High-Sensitivity Receiver
Simultaneously captures GPS 1575.42MHz and GLONASS 1601-1610MHz signals, with a 28dB LNA amplifier and <1.5dB noise figure, increasing tunnel positioning success rate by 60%.
Application Scenarios
Commercial Fleets: Cross-border Logistics Vehicle Positioning Terminal
Specialty Vehicles: Firefighting Cloud Platform, Military Vehicle-Mounted Radios
Field Operations: Power Line Inspection Devices, Geological Exploration Equipment
Smart Cities: Shared Electric Motorcycle Central Controls, Smart Light Pole Systems
FAQ
Q: Is there an additional charge for custom connectors?
A: SMA/MCX customization is free, FAKRA/TNC is $0.80 per unit (free for orders ≥ 1000 pieces)
Q: Does IP67 waterproofing include the cable outlet?
A: Only the antenna body is waterproof (immersion up to 1 meter/30 minutes). The cable outlet requires the optional waterproofing kit (ANT-SEAL06).
Q: How do I power the 5-15mA current fluctuation?
A: The device power supply must support ≥20mA output.
Q: How does magnetic attraction affect the signal on a metal roof?
A: The base includes a 3mm isolation layer, and the measured signal attenuation is <0.2dB.
Q: Does a 3m cable require signal compensation?
A: The 28dB LNA fully compensates for line loss.
Q: Will the adhesive fail at high temperatures?
A: 3M VHB tape has passed the 85°C*1000 hour test.
