| Quantity: | |
|---|---|
| PDF Export | |

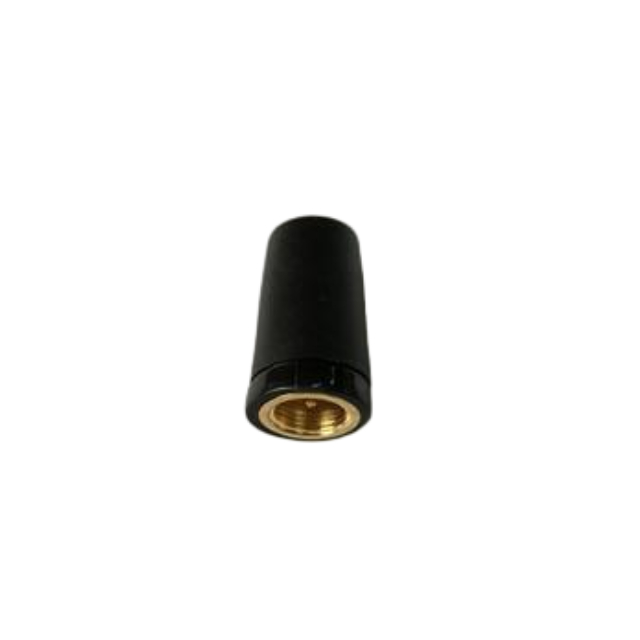

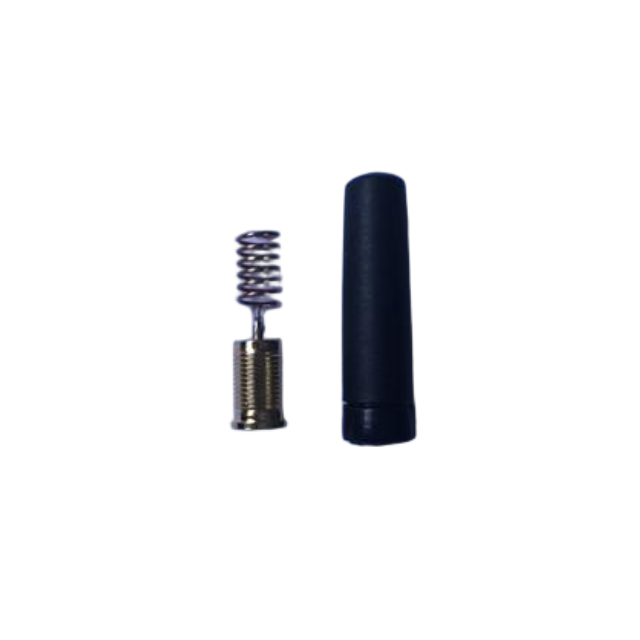

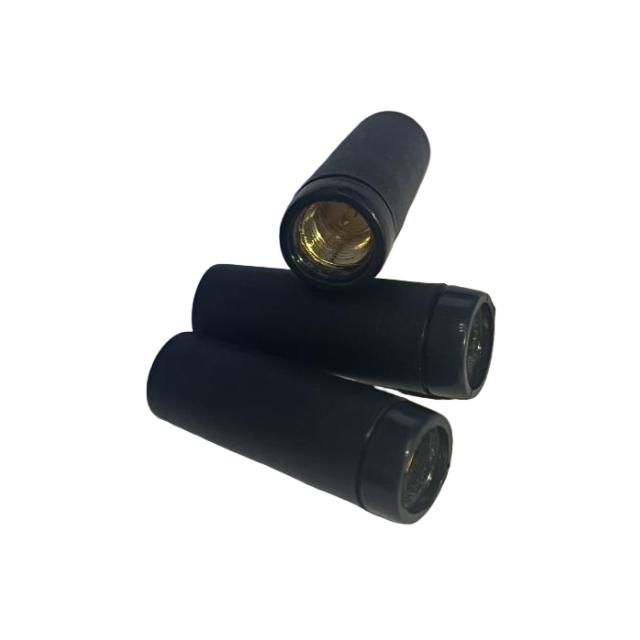

GSM Rubber Antenna | |
GL401 | |
Electrical Index | |
Frequency-MHz | 890-960/1710-2170 |
Gain -dBi | 2.0 |
VSWR | ＜2.0 |
Normal Impedance -Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA R/A male |
Antenna Dimension-mm | Ø9.7*27.5 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL401 | GL-DY418 | GL-DY431 |
| Frequency range-mhz | 890-960/1710-2170 | 824-960 | 698-960/1710-2700 |
| Gain-dBi | 2 | 3 | 5 |
| Antenna Dimension-mm | Ø9.7*27.5 | Ø12.5*110 | Ø26.5*220 |
Product Introduction
1.Dual-Band Versatility
Covers 700-960MHz + 1710-2170MHz – perfect for 2G/3G/4G, IoT, and M2M communication across global networks.
2.Extreme Environment Ready
Operates in -40°C to +85°C and 5-95% humidity – ideal for industrial, automotive, and outdoor installations.
3.Rugged & Eco-Friendly Design
ROHS-compliant rubber housing withstands physical stress, UV exposure, and chemical corrosion while meeting environmental standards.
4.Universal Connectivity
SMA male connector ensures quick installation on routers, trackers, modems, and base stations without adapters.
5.Stable Signal Performance
VSWR <2.0 and 2.5dBi gain minimize signal loss for reliable data transmission in urban/rural areas.
Fleet Tracking: GPS trackers for trucks/taxis in harsh climates.
Smart Farming: Livestock monitors and irrigation systems.
Remote Monitoring: Weather stations, industrial sensors.
Backup Communication: Emergency GSM networks.
Marine Equipment: Boat navigation/communication systems.
Q: Does this support 4G/LTE networks?
A: Yes! Its 1710-2170MHz band covers LTE Band 1/2/3/4/5.
Q: Is it waterproof?
A: While not IP-rated, its humidity tolerance (95%) and rubber housing resist rain/splash. Avoid submersion.
Q: What devices use SMA male connectors?
A: Routers (Cisco, MikroTik), IoT gateways, cellular modems, and most industrial equipment.
Q: Can it survive freezing winters?
A: Absolutely. Its -40°C rating ensures functionality in arctic conditions.
Q: Why choose rubber housing over plastic?
A: Rubber absorbs impacts, resists UV degradation, and flexes without cracking in vibration-prone environments.
Q: Is gain sufficient for weak signal areas?
A: 2.5dBi optimizes balance between range and size. Pair with a signal booster for extreme rural use.
Q: Does ROHS compliance matter for industrial use?
A: Critical! Ensures no hazardous materials (lead, mercury) – required for EU/NA markets and eco-certifications.
