English
GL-DY460
asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

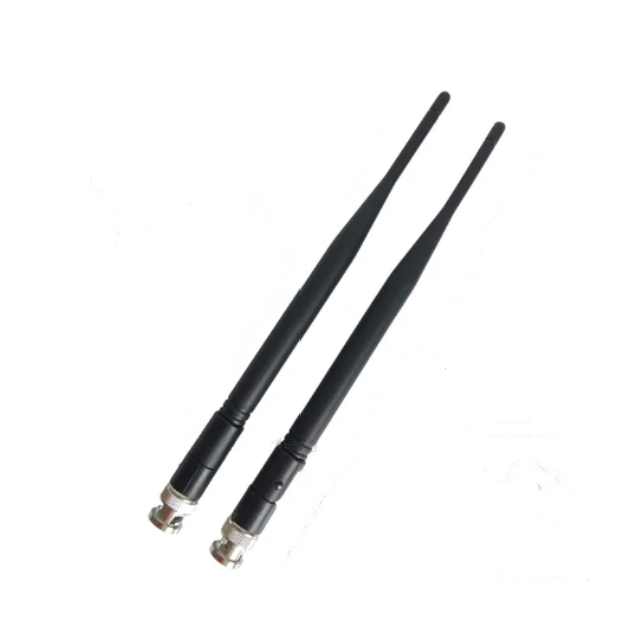

2.4G Rubber Antenna | |
GLR460 | |
Electrical Index | |
Frequency-MHz | 2400-2500 |
Gain-dBi | 3 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Vertical |
Mechanical Index | |
Connector | SMA male |
Antenna Dimension-mm | Ø14*160 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar products
P/N | GL-DY421 | GL-DY461 | GL-DY460 |
Frequency-Mhz | 2400-5800Mhz | 2400-2483/5150-5875 | 2400-2500 |
Gain-dBi | 5 | 3 | 3 |
Antenna Dimension-mm | Ø20*180 | 13*197 | Ø14*160 |
Product Introduction
Precise Frequency Band: Operates in 2400 - 2500MHz, a standard 2.4G range, ensuring seamless compatibility with most 2.4G - based devices like WiFi routers and IoT sensors. Stable frequency support guarantees reliable signal transmission.
Gain Advantage: Boasts 3dBi gain, effectively enhancing signal strength. It can extend the communication range and improve signal quality, making it ideal for scenarios where a stronger signal is needed, such as in large - area wireless coverage.
Reliable Impedance Matching: With 50Ω normal impedance, it matches well with common RF devices. This minimizes signal loss during transmission, ensuring efficient power transfer and better overall performance.
Durable & Compliant Design: Made with ROHS - compliant materials, it’s environmentally friendly. The rubber construction, along with a wide temperature range (-40~+85℃) and 5 - 95% humidity tolerance, allows it to work stably in various harsh environments, like industrial sites or outdoor setups.
Easy Integration: Equipped with an SMA male connector, it can be quickly and easily connected to many 2.4G devices. The vertical polarization and compact size (Ø14*160mm) offer flexible installation options, fitting into different device layouts.
Application scenarios
• Industrial WiFi: Factory automation, warehouse robots, PLC systems
• Smart Home Hubs: WiFi/Bluetooth gateways, security controllers
• Retail Technology: Digital signage, POS systems, inventory scanners
• Agricultural IoT: Greenhouse monitors, irrigation controllers
• Outdoor Equipment: Solar inverters, EV charging stations
Q: Compatible with WiFi 6 devices?
A: Yes! Covers all 2.4GHz channels used by 802.11ax routers.
Q: Waterproof rating?
A: Rubber housing provides IP54-level splash/dust resistance. Not submersible.
Q: Why choose rubber over fiberglass?
A: Superior vibration absorption and cold-weather flexibility (-40°C won't brittle it).
Q: Maximum cable length supported?
A: Antenna has integrated connector. Extend with RG58 up to 10m (signal loss <3dB).
Q: Mounting options?
A: Threaded SMA base screws directly into devices. Use magnetic base (sold separately) for metal surfaces.
Q: Why SMA male connector?
A: Industry standard for networking gear. Use SMA female adapters for RP-SMA ports.
Q: Lifespan in direct sunlight?
A: UV-stabilized rubber lasts 5+ years in outdoor exposure.
