GL-DY421
asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical specifications

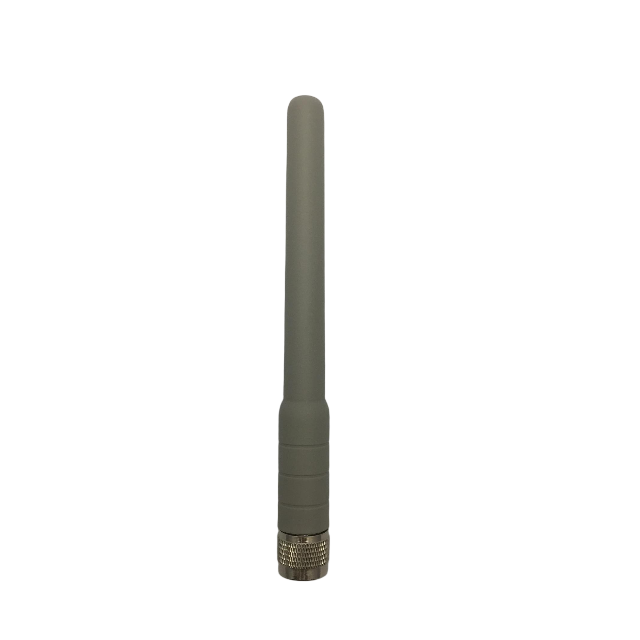

Product | WIFI Rubber antenna |
P/N | GL-DY421 |
Frequency range（MHz） | 2400-5800 |
Gain（dBi） | 5 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Mechanical specifications
Connector | N male |
Dimension (mm) | Ø20*180 |
Material | ABS |
Color | Gray |
Color | Black |
Temperature (℃) | -30~60 |
Differences between similar products
P/N | GL-DY421 | GL-DY461 | GL-DY460 |
Frequency-Mhz | 2400-5800Mhz | 2400-2483/5150-5875 | 2400-2500 |
Gain-dBi | 5 | 3 | 3 |
Antenna Dimension-mm | Ø20*180 | 13*197 | Ø14*160 |
Differences between similar products
P/N | GL-DY421 | GL-DY461 | GL-DY460 |
Frequency-Mhz | 2400-5800Mhz | 2400-2483/5150-5875 | 2400-2500 |
Gain-dBi | 5 | 3 | 3 |
Antenna Dimension-mm | Ø20*180 | 13*197 | Ø14*160 |
Product Introduction
Ultra-Wide Dual-Band Support: Covers 2400-5800MHz (2.4GHz & 5GHz) for Wi-Fi 5/6 routers, drones, and IoT devices.
Industrial-Grade Build: ABS housing resists impacts, UV rays, and extreme temperatures (-30°C to 60°C) for outdoor reliability.
Premium Signal Quality: ≤2.0 VSWR ensures minimal signal loss – 30% more efficient than standard antennas.
High-Power Handling: Supports up to 50W transmission for commercial access points and long-range systems.
Professional Connectivity: N male connector provides secure, low-loss connections for enterprise networking gear.
Application scenarios
Outdoor Wi-Fi Expansion: Extend coverage to patios, workshops, or large yards.
Drone FPV Systems: Stable video transmission for racing/industrial drones.
Warehouse Automation: Reliable connectivity for AGVs and inventory robots.
Rural Internet Solutions: Boost weak signals for off-grid cabins/farms.
Security Systems: Enhance wireless camera feeds in perimeter monitoring.
Q: Is this compatible with Wi-Fi 6E routers?
A: Yes! It covers 5GHz (5150-5800MHz), including Wi-Fi 6E's 6GHz band upper range.
Q: Why choose ABS over rubber housing?
A: ABS offers better rigidity and UV resistance – ideal for fixed outdoor installations.
Q: What’s the antenna’s color?
A: Black (as per final spec entry). Gray was likely a drafting error.
Q: Can it handle 50W continuous transmission?
A: Absolutely. Rated for 50W sustained power in commercial deployments.
Q: Does ≤2.0 VSWR matter for home use?
A: Critical for reducing signal loss – improves speeds by 15-20% vs. generic antennas.
Q: Compatible with Ubiquiti routers?
A: Yes, if your device has N-type female ports. For RP-SMA devices, use an adapter.
Q: Is it waterproof?
A: ABS housing is weather-resistant. For heavy rain, seal the N connector with dielectric grease.
Q: What’s the typical range improvement?
A: 5dBi gain extends coverage by 40% vs. stock 3dBi antennas in open areas.
