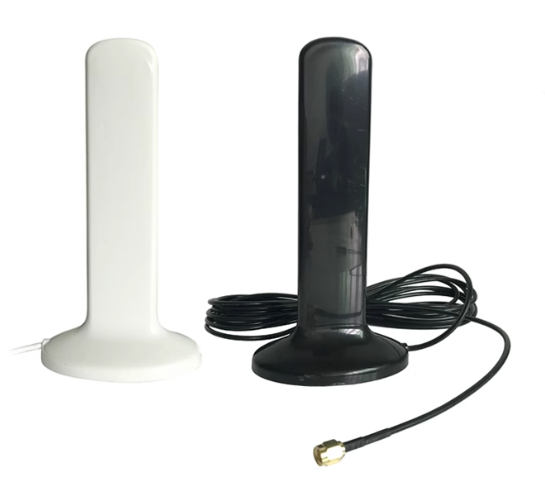

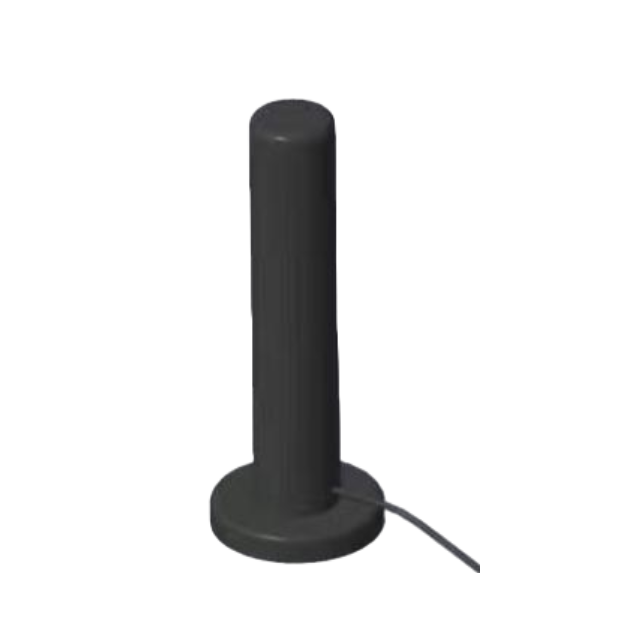

5G Magnet Antenna | |
GL100 | |
Electrical Index | |
Frequency-MHz | 698-960/1710-3800 |
VSWR | <2.0 |
Normal Impedance-Ω | 50 |
Gain-dBi | 3-5 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG58,2m |
Connector | SMA male |
Antenna Dimension-mm | Ø60*300 |
Installation Way | Magnet |
Material |
|
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Wideband Multi-Band Coverage: Supporting the 698-960MHz and 1710-3800MHz frequency ranges, it perfectly adapts to 5G networks and previous-generation communication standards, ensuring stable connections in various regions and network environments.
2. Efficient Signal Transmission: 3-5dBi gain and linear polarization design improve signal reception sensitivity and reduce transmission loss, providing strong support for high-speed data transmission.
3. Convenient Magnetic Installation: Using magnets, it can be quickly installed on surfaces such as vehicles and metal brackets without complex tools, and is easy to move and adjust.
4. Durable Material and Environmental Adaptability: Made of PVC or fiberglass, it can withstand 10-55Hz vibration tests and operate stably in a wide temperature range of -40°C to +85°C and a humidity of 5% to 95%, making it suitable for outdoor and industrial use. 5. Compliance and Compatibility: Compliant with ROHS environmental standards, equipped with an SMA male connector and a 2m RG58 cable, it easily adapts to various 5G terminals, routers, and industrial equipment.
Application Scenarios
In-Vehicle 5G CPE: Magnetic mounting on the vehicle roof enhances mobile office network stability
Remote Monitoring System: Wide temperature range supports IoT devices in cold oil fields and high-temperature construction sites
Emergency Communication Vehicle: Quickly deploy on the roof of a fire truck or ambulance
Agricultural Machinery Networking: Anti-vibration design accommodates bumpy tractor operations
Marine Communications: PVC material resists salt spray corrosion
FAQ
Q: What frequency bands does the GL102 5G Antenna cover?
A: It covers 698-960MHz and 1710-3800MHz.
Q: What is the gain of this 5G antenna?
A: The gain range is from 3 to 5dBi.
Q: How is the antenna installed?
A: It uses a magnet for easy mounting on metal surfaces.
Q: What cable and connector does it use?
A: It comes with a 2m RG58 cable and SMA male connector.
Q: What materials is the antenna made of?
A: It is made of PVC or Fiberglass.
Q: What is the operating temperature range?
A: It operates in -40℃ to +85℃.
