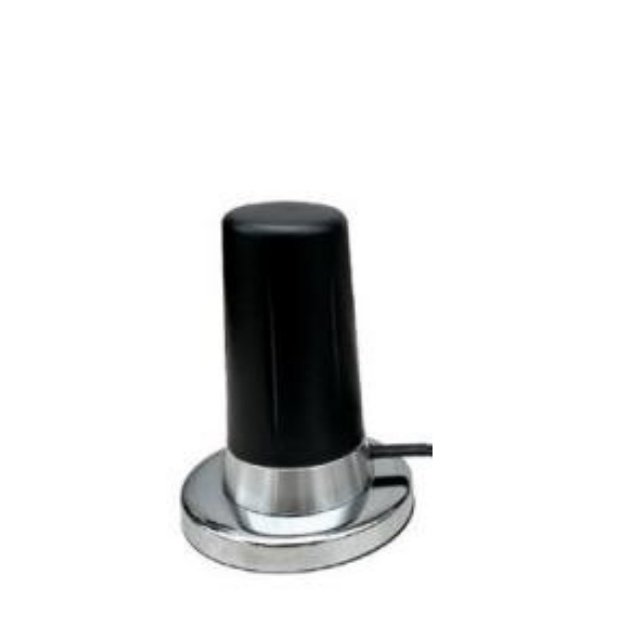

5G Magnet Antenna | |
GL092-5G | |
Electrical Index | |
Frequency-MHz | 600-960/1710-2700/3300-3800/4000-6000 |
VSWR | <1.5 |
Gain-dBi | 3 |
Normal Impedance-Ω | 50 |
Max Power-W | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG174,2m |
Connector | SMA male |
Antenna Dimension-mm | Ø87*110 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Ultra-Wide Frequency Coverage: Supports multiple frequency bands, including 600-960MHz, 1710-2700MHz, 3300-3800MHz, and 4000-6000MHz, fully adapting to 5G networks and previous-generation communication standards, meeting frequency band requirements in different regions around the world.
2. Low Standing Wave Ratio, Efficient Transmission: VSWR <1.5, minimizing signal reflection loss, and coupled with 3dBi stable gain, ensures efficient and stable signal transmission, reducing data latency.
3. Convenient Magnetic Installation: Utilizing a magnetic mounting system, it quickly attaches to surfaces such as vehicles and metal brackets. Tool-free installation allows for flexible positioning.
4. High Power and Durability: Supports a maximum input power of 50W, withstands 10-55Hz vibration testing, and operates stably in a wide temperature range of -40°C to +85°C and a humidity range of 5% to 95%, making it suitable for demanding environments.
5. Compliance and Compatibility: Compliant with ROHS environmental standards, it comes with a 2m RG174 cable and SMA male connector, making it easily compatible with a variety of devices, including 5G routers and in-vehicle terminals.
Application Scenarios
Smart Factory IoT: Supports private 5G networks in the 4000-6000MHz band
Mobile Emergency Communications: 50W high power compatible with in-vehicle base station equipment
Rural Broadband Coverage:600MHz low-band frequency enhances wall penetration
Drone Communication Relay:Compact design reduces flight load
FAQ
Q: Does it support millimeter wave ?
A: It only covers the Sub-6GHz (FR1 band) up to 6000MHz. It does not support mmWave above 24GHz.
Q: Is the gain consistent across the 4000-6000MHz band?
A: Gain is ≥3dBi across all bands. LNA is recommended for use in the high-band (5000-6000MHz) band.
Q: Can it directly replace a router antenna?
A: The SMA male connector is compatible with most CPE devices, but please ensure that the device's interface power is ≤50W.
Q: Does the size of the magnetic base affect the suction force?
A: The large Ø87mm magnet provides >25kg of suction force, 40% stronger than conventional Ø60mm products.
Q: Does the RG174 cable affect high-frequency performance?
A: A 2-meter length has a loss of approximately 3.2dB at 6000MHz. For longer distances, we recommend the LMR400 (customization required).
Q: What applications does the 600MHz low-band frequency band cover?
A: Supports Band 71 (T-Mobile 5G) and Band 28 (European 700MHz), enhancing rural coverage.
