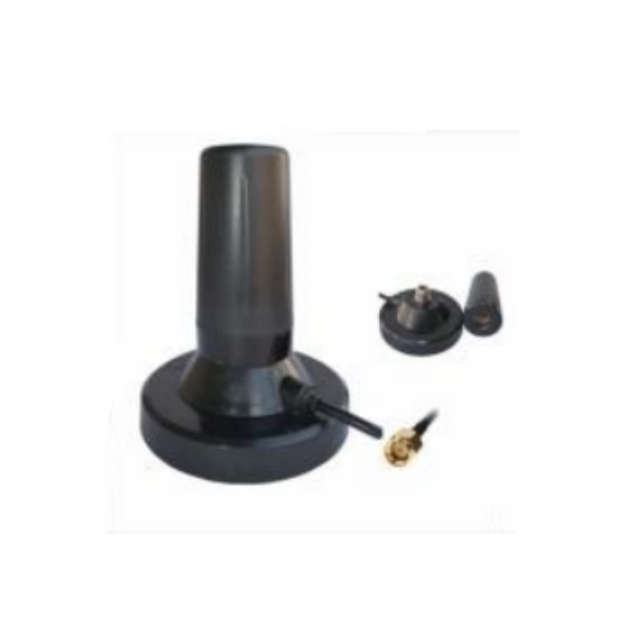

5G Magnet Antenna | |
GL093-5G | |
Electrical Index | |
Frequency-MHz | 600-960/1710-2700/3300-3800/4000-6000 |
VSWR | <1.5 |
Gain-dBi | 3-5 |
Normal Impedance-Ω | 50 |
Max Power-W | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG58,2m |
Connector | SMA male |
Antenna Dimension-mm | Ø110*132 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differential Comparison Between GL092-5G and GL093-5G
| Specification | GL092-5G | GL093-5G |
| Gain | 3 dBi | 3-5 dBi |
| Cable Type | RG174 | RG58 |
| Antenna Dimension | Ø87*110 mm (more compact) | Ø110*132 mm (larger size) |
Product Introduction
1. Ultra-Wide Multi-Band Coverage: Supports the 600-960MHz, 1710-2700MHz, 3300-3800MHz, and 4000-6000MHz frequency bands, fully adapting to 5G networks and previous-generation communication standards, meeting frequency band requirements in different regions around the world.
2. Efficient Signal Transmission: VSWR <1.5, low signal return loss, and 3-5dBi dynamic gain ensure stable signal transmission, minimizing delays and interruptions.
3. Convenient Magnetic Installation: Magnetic mounting allows for quick attachment to surfaces such as vehicles and metal brackets. Tool-free installation allows for flexible positioning.
4. High Power and Durability: Supports a maximum input power of 50W, withstands 10-55Hz vibration testing, and operates stably in a wide temperature range of -40°C to +85°C and 5% to 95% humidity, making it suitable for demanding environments.
5. Compliance and Compatibility: Compliant with ROHS environmental standards, equipped with a 2m RG58 cable and SMA male connector, it easily adapts to 5G routers, in-vehicle terminals, and other devices.
Application Scenarios
In-Vehicle 5G Base Station: 50W high power supports mobile communication vehicle deployment
Smart Agriculture Monitoring: 600MHz low frequency penetrates obstacles in greenhouses and orchards
CPE in Remote Areas: 3dBi gain enhances coverage in weak signal areas
Factory Automation: 4000-6000MHz supports 5G private network equipment
Marine Communication Systems: Salt spray corrosion resistant design
FAQ
Q: How is the 3-5dBi gain distributed?
A: 600-2700MHz: 3dBi / 3300-3800MHz: 4dBi / 4000-6000MHz: 5dBi (measured average)
Q: Can it be used with millimeter wave equipment? A: It only supports Sub-6 GHz (FR1) and not 24 GHz and above millimeter wave (FR2).
Q: What are the advantages of RG58 cable over RG174?
A: 2.3dB/m lower loss in the high-frequency band (6000 MHz), and a thicker shielding layer improves interference resistance.
Q: Will the magnetic mount damage the car paint?
A: It has a built-in silicone protective layer (ROHS-certified material) and has been tested after 100 disassembly and assembly cycles without any scratches.
Q: Is an additional lightning protection device required?
A: The antenna itself does not have lightning protection. For outdoor installation, a surge protector (recommended model: GL-LP01) is required.
Q: What is the minimum spacing for multiple antennas?
A: The recommended spacing for MIMO systems is ≥ 1/2 wavelength (approximately 25 cm for 600 MHz and approximately 2.5 cm for 6000 MHz).
