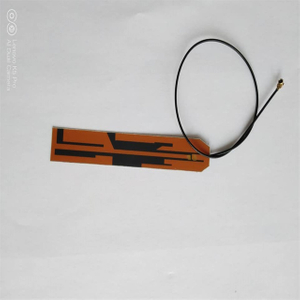

GL-DY155L
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna | Frequency Range | 698~4000MHz |
Polarization | Linear | |
Gain | 1.2dBi@698MHz
5.2dBi@1710MHz
2.7dBi@3300MHz | |
V.S.W.R | ＜3.0 | |
Impedance | 50Ω | |
FPC Dimension | 85*13.8*0.2mm | |
Mechanical | Cable | RF1.13 or others |
Connector | IPEX | |
Mounting Method | Adhesive&Embedded | |
Environmental | Operating Temperature | -40℃~+85℃ |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction
Wide Frequency Coverage: Operating in the 698 - 4000MHz range, the GL - DY155L LTE Antenna is suitable for a variety of LTE networks. This wide - band compatibility allows it to support different frequency bands used by various carriers globally, making it versatile for different regions and applications.
Linear Polarization: Its linear polarization provides stable signal transmission and reception in specific directions. This characteristic is beneficial in environments where the signal propagation needs to be focused, such as in some indoor or outdoor point - to - point communication scenarios. It helps in reducing interference and enhancing the overall signal quality.
Flexible Mounting Options: The GL - DY155L can be installed using adhesive or embedded methods. The adhesive mounting is convenient for quick and easy attachment to plastic surfaces, while the embedded option allows for a more integrated and concealed installation. This flexibility makes it adaptable to different device designs and installation requirements.
Stable Electrical Performance: With an impedance of 50Ω and a VSWR (Voltage Standing Wave Ratio) of less than 3.0, the antenna ensures efficient power transfer and minimal signal reflection. These electrical properties contribute to a more reliable connection, enabling better performance in LTE communication systems.
Environmentally Friendly and Durable: Being ROHS compliant, the GL - DY155L meets strict environmental standards. It can also withstand vibrations (10 - 55Hz with 1.5mm amplitude for 2 hours) and operate in a wide temperature range from - 40℃ to + 85℃. This durability makes it suitable for various indoor and outdoor applications, ensuring long - term stable operation.
Application scenarios
IoT Sensors: Embedded in smart meters or agricultural monitoring systems.
Vehicle Telematics: Enhances GPS and cellular connectivity in cars/trucks.
Industrial Routers: Provides stable 4G/5G signals for factory automation.
Smart Home Devices: Compact design fits into security cameras or hubs.
Mobile Hotspots: Optimizes signal reception for portable Wi-Fi routers.
FAQ
Q:What frequency bands does this antenna cover?
A:It supports 698–4000MHz, covering LTE, 4G, 5G sub-6GHz, and IoT bands.
Q:Is the antenna suitable for outdoor use?
A:Yes, its -40℃~85℃ operating range and vibration resistance make it ideal for harsh environments.
Q:What connector type is included?
A:It uses an IPEX connector (RF1.13 cable optional).
Q:Can it be customized for specific devices?
A:The adhesive mounting and flexible FPC design allow easy integration into most embedded systems.
Q:Is this antenna ROHS-certified?
A:Yes, it complies with ROHS environmental standards.
Q:What is the VSWR performance?
A:VSWR is <3.0, ensuring minimal signal loss.
Q:Does it support 5G networks?
A:Yes, it covers sub-6GHz 5G bands up to 4000MHz.
Q:What industries commonly use this antenna?
A:Automotive, IoT, industrial automation, telecommunications, and smart home sectors.
