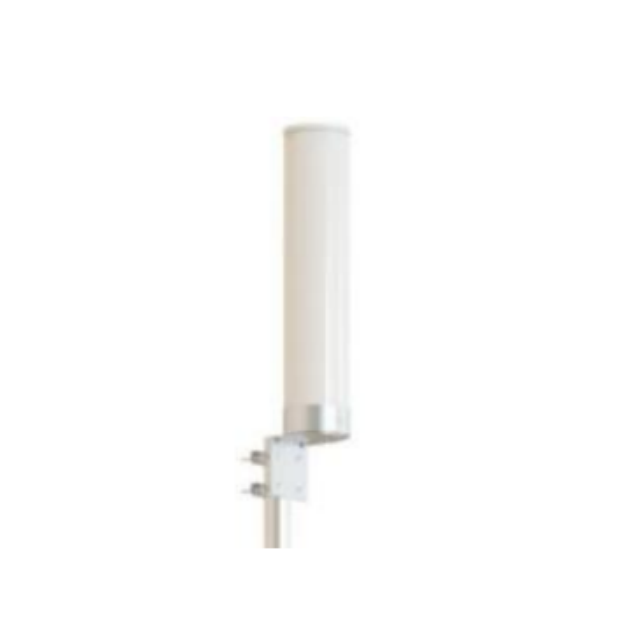

N female connector 480-580MHz Outdoor Omnidirectional Antenna

Product Introduction

1. Professional Frequency Band Optimization, Precise Coverage of 480-580MHz

Specifically designed for the 480-580MHz professional communication frequency band, with a bandwidth of 100MHz, providing precisely optimized performance for applications such as private network communication and industrial telemetry.

2. High Gain Omnidirectional Coverage, Eliminating Signal Dead Zones

5±1dBi gain combined with a 360° horizontal beam and a 55° vertical beam achieves true omnidirectional uniform coverage, ensuring signal transmission without dead zones within the communication area.

3. Industrial-Grade Structural Design, Stable Operation in All Weather

UPVC radarome material provides excellent weather resistance, with an operating temperature range of -40°C to 55°C and humidity <95%. Completely maintenance-free design, suitable for the harshest outdoor environments.

4. Diverse Installation Methods, Flexible and Convenient Deployment

Standard kits for ceiling mounting and through-wall mounting are available. With a compact size of Φ60×760mm and a weight of only 0.9kg, installation and commissioning can be quickly completed by a single person.

5. Robust electrical performance ensures high communication quality.

VSWR≤2.0, 50Ω standard impedance, maximum 50W power input ensures efficient and stable signal transmission, meeting the reliability requirements of mission-critical communications.

Application Scenarios

Professional Mobile Radio Systems: Dedicated network communication base stations for public security, fire fighting, emergency rescue, etc.

Industrial Automation and Telemetry: Signal coverage for factory equipment monitoring and remote data acquisition systems.

Rural and Remote Area Communication: Providing cost-effective communication solutions for areas with weak signal.

IoT Data Backhaul: Base station antennas for IoT applications such as smart grids and environmental monitoring.

Temporary Communication Sites: Rapid communication network deployment at construction sites and temporary event locations.

FAQ

Q: What is the exact frequency coverage of this antenna?

A: It operates in the 480-580MHz range, ideal for professional and industrial communication systems.

Q: What mounting options are available?

A: It comes standard with ceiling mount and through-hole mounting kits for flexible installation.

Q: How does the omnidirectional pattern benefit my application?

A: 360° coverage ensures consistent signal reception from all directions, eliminating the need for antenna alignment.

Q: What is the radome material and its advantages?

A: The UPVC radome provides excellent weather resistance and UV protection for long-term outdoor use. use.

Q: What connector type does it use?

A: It features an N-female connector, the industry standard for professional communication equipment.

Q: Can this antenna withstand harsh weather conditions?

A: Yes, with an operational temperature range of -40°C to 55°C and <95% humidity rating, it's built for challenging environments.

Q: What is the practical meaning of 5±1dBi gain?

A: This gain provides optimal balance between coverage distance and signal pattern, suitable for most medium-range applications.
