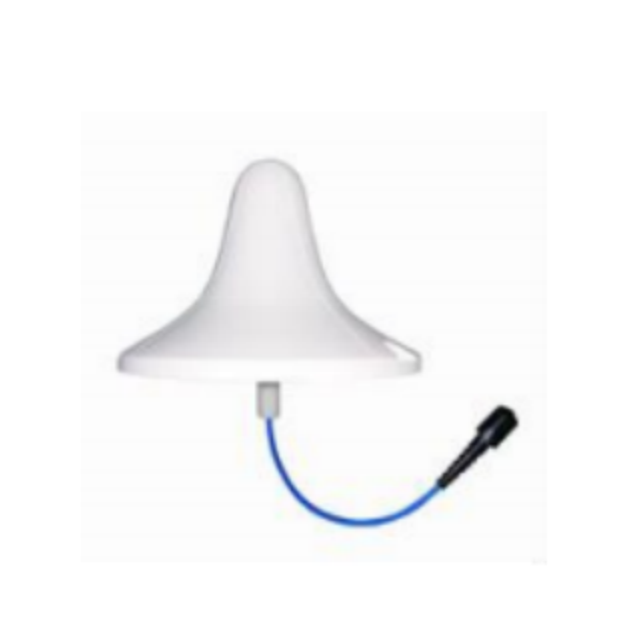

GL38600V2-CJ
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||||
Frequency Range-MHz | 380-520 | 698-960 | 1710-6000 | |
VSWR | ≤3.0 | ≤2.0 | ≤2.0 | |
Gain-dBi | 2.0 | 2.5 | 4.0 | |
Horizontal beam width | 360° | |||
Polarization | Vertical | |||
Intermodulation IM3 (2x43dBm)- dBc | ≤-150 | |||
Input Impedance-Ω | 50 | |||
Maximum input power- W | 50 | |||
Lightning protection | DC Ground | |||
Mechanical Specifications | ||||
Input connector type | N female | |||
Dimensions- mm | Ø298×152 | |||
Antenna weight- kg | 0.9 | |||
Radiating Element Material | Aluminum | |||
Radome material | ABS | |||
Radome color | White | |||
Operating temperature | -40°C to +65 °C | |||
Product Introduction
1.Wide Frequency Coverage – Supports 380–6000 MHz, compatible with 4G, 5G, WiFi, and public safety bands.
2.Omnidirectional Coverage – Provides 360° horizontal coverage for uniform signal distribution.
3.Low PIM Design – IM3 ≤ -150 dBc, ideal for multi-operator and high-traffic environments.
4.Durable & Lightweight – Features an anti-UV ABS radome, aluminum radiating elements, and weighs only 0.9 kg.
5.Easy Ceiling Installation – Includes N-type female connector and DC grounding for lightning protection.
Application Scenarios
Shopping malls, airports, hospitals, and office buildings
Indoor Distributed Antenna Systems (DAS)
Multi-operator cellular coverage systems
Public safety and enterprise communication networks
Hotels, conference centers, and underground parking garages
FAQ
Q: What frequency bands does this antenna support?
A: It supports 380–520 MHz, 698–960 MHz, and 1710–6000 MHz.
Q: Is this antenna suitable for 5G systems?**
A: Yes, it covers key 5G bands within the 1710–6000 MHz range.
Q: What is the gain of this antenna?
A: Gain ranges from 2.0 dBi at lower bands to 4.0 dBi in higher frequencies.
Q: Can it be used outdoors?
A: No, it is designed for indoor use with an ABS radome that is UV-resistant but not waterproof.
Q: What connector type does it use?
A: It comes with an N-type female connector.
Q: What is the maximum power input?
A: It supports up to 50W input power.
