English
GL-DYG835
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
4G Magnet Antenna | |
GL-DYG835 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2700 |
VSWR | ＜1.5 |
Gain-dBi | 10 |
Normal Impedance-Ω | 50 |
Polarization | Vertical |
Mechanical Index | |
Cable Length | RG58,10m |
Connector | SMA male |
Antenna Dimension-mm | 70*880 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DYG835 | GL-DY829 | GL-DY089 |
| Frequency range-mhz | 824-960/1710-2700 | 433 | 824-960/1710-2170 |
| Gain-dBi | 10 | 2 | 5 |
| Dimension-mm | Φ70*880 | Φ30*235mm | Ø48*92 |
Production Introdution
High gain 9-10dBi for magnetic antenna
Strong magnet strength antenna
LMR195 cable choice
Overall, the 4G Full Band Magnetic Base Antenna provides wide frequency range compatibility, easy installation and portability, improved signal reception, enhanced coverage and range, reduced interference, weather resistance, cost-effectiveness, and compatibility with multiple devices. These advantages make it a versatile and reliable choice for enhancing 4G connectivity in various applications and environments.
The 4G Full Band Magnetic Base Antenna is a powerful and versatile device that enhances your connectivity experience. With its magnetic base, it can be easily attached to any metal surface, providing a stable and reliable signal reception. Whether you are at home, in the office, or on the go, this antenna ensures that you stay connected at all times. Its full band coverage allows you to access multiple frequencies, ensuring compatibility with various 4G networks. Say goodbye to dropped calls and slow internet speeds, as this antenna boosts your signal strength and improves data transfer rates. Experience seamless browsing, streaming, and downloading with the 4G Full Band Magnetic Base Antenna.
Application Scenarios
1. Wireless Communication & IoT
Used in WBAN (Wireless Body Area Networks) and WLAN (Wireless Local Area Networks) for wearable or portable devices, ensuring stable connectivity in flexible environments.
Suitable for RFID systems, particularly in compact, magnetically mounted configurations for asset tracking and logistics.
2. Industrial & Scientific Monitoring
Applied in geomagnetic field detection, such as monitoring solar storm-induced currents (GICs) in power grids to prevent transformer damage.
Used in geophysical surveys or military signal detection for locating electromagnetic disturbances.
3. Marine & Aviation Navigation

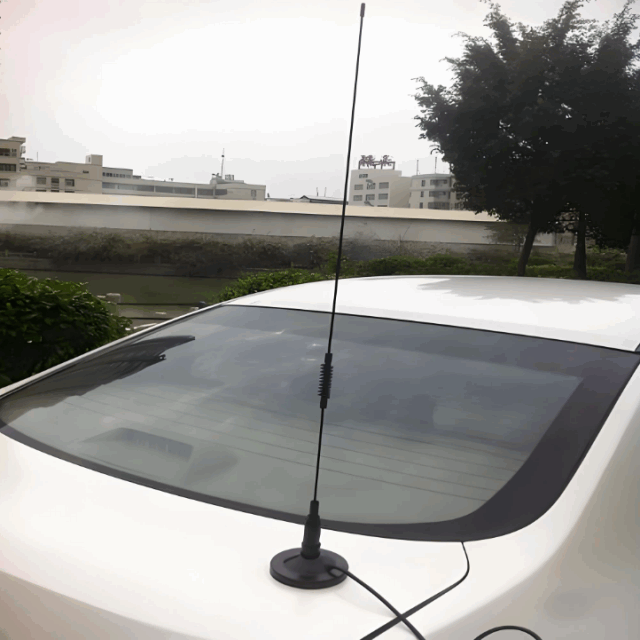

Deployed in shipboard or aircraft communication systems where magnetic mounting ensures stability in high-vibration environments.
4. Emergency & Field Operations
Ideal for portable radio communication in disaster recovery or remote areas, leveraging its magnetic base for quick deployment on metal surfaces.
FAQ
Q: What is the GL-DYG835 Magnet Antenna?
A: The GL-DYG835 is a magnetic mount antenna designed for wireless communication (e.g., Wi-Fi, cellular, or radio signals). Its magnetic base allows for easy attachment to metal surfaces (e.g., vehicles, rooftops) for improved signal reception.
Q: What frequencies does it support?
A: Typically covers 2.4GHz/5GHz (for Wi-Fi) or cellular bands (e.g., 4G/LTE), but confirm the exact specs in your product manual.
Q: How do I install the antenna?
A: Step 1: Clean the metal surface where the antenna will attach.
Step 2: Secure the magnetic base firmly to the surface.
Step 3: Connect the antenna’s cable to your device’s antenna port (RP-SMA, SMA, etc.).
Step 4: Position the antenna vertically for optimal performance.
Q: Can I use it on non-metal surfaces?
A: The magnet requires a metal surface for adhesion. For non-metal surfaces (e.g., fiberglass), use an optional metal plate or adhesive mount.
Q: What’s the maximum range?
A: Depends on the environment and device power. Typically enhances signal by 10–50% over built-in antennas.
Q: Is it waterproof/weatherproof?
A: Most models are IPX6/IP67-rated (water and dust resistant), but verify your specific model’s rating.
Q: Why is my signal weak after installation?
A: Check connections (ensure the cable is securely attached).
