GL900SPD12
Asialeren
8517710000
5pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Specifications
Model | GL900SPD12 |
Freq.Range-MHz | 820-960 |
Bandwidth-MHz | 70 |
Gain-dBi | 18 |
Ver.Beamwidth- ° | 17 |
Hor.Beamwidth- ° | 16.5 |
F/B Ratio-dB | ≥30 |
VSWR | ≤ 1.5 |
Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Connector | N Female or customized |
Diameter-m | φ 1.2 |
Weight-Kg | 7.1 |
Mast Diameter-mm | φ50 to φ75 |
Differences between similar products
P/N | GL900SPD12 | GL-DY5800V24A | GL-DY5158V28 |
Frequency-Mhz | 820-960 | 5725-5850 | 5150-5850 |
Gain-dBi | 18 | 24 | 28 |
Diameter-m | φ 1.2 | φ0.4 | φ0.6 |

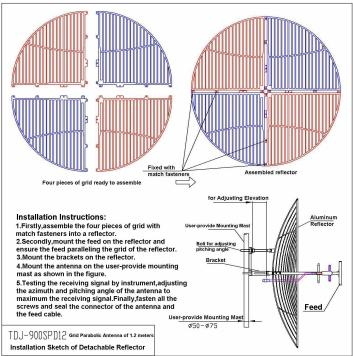

Installation Sketch
Product Introduction
High Gain & Low VSWR
With 18dBi gain and VSWR ≤1.5, it ensures stable long-distance signal transmission with minimal loss, ideal for overcoming signal attenuation in remote areas .
Durable Die Cast Aluminum Reflector
The reflector is made of die cast aluminum with UV stable coat finish, resisting corrosion and weathering for long-term outdoor use .
Low Wind Load Design
Engineered to minimize wind resistance, it remains stable in harsh weather conditions, suitable for high-altitude or coastal installations .
Vertical Polarization & Flexible Mounting
Supports vertical polarization for point-to-point systems and comes with a tilt and swivel bracket, enabling precise angle adjustment for optimal signal alignment .
Customizable Connector & High Power Handling
Features N female connector (or customized) and supports up to 100W input power, compatible with various CDMA/GSM systems .

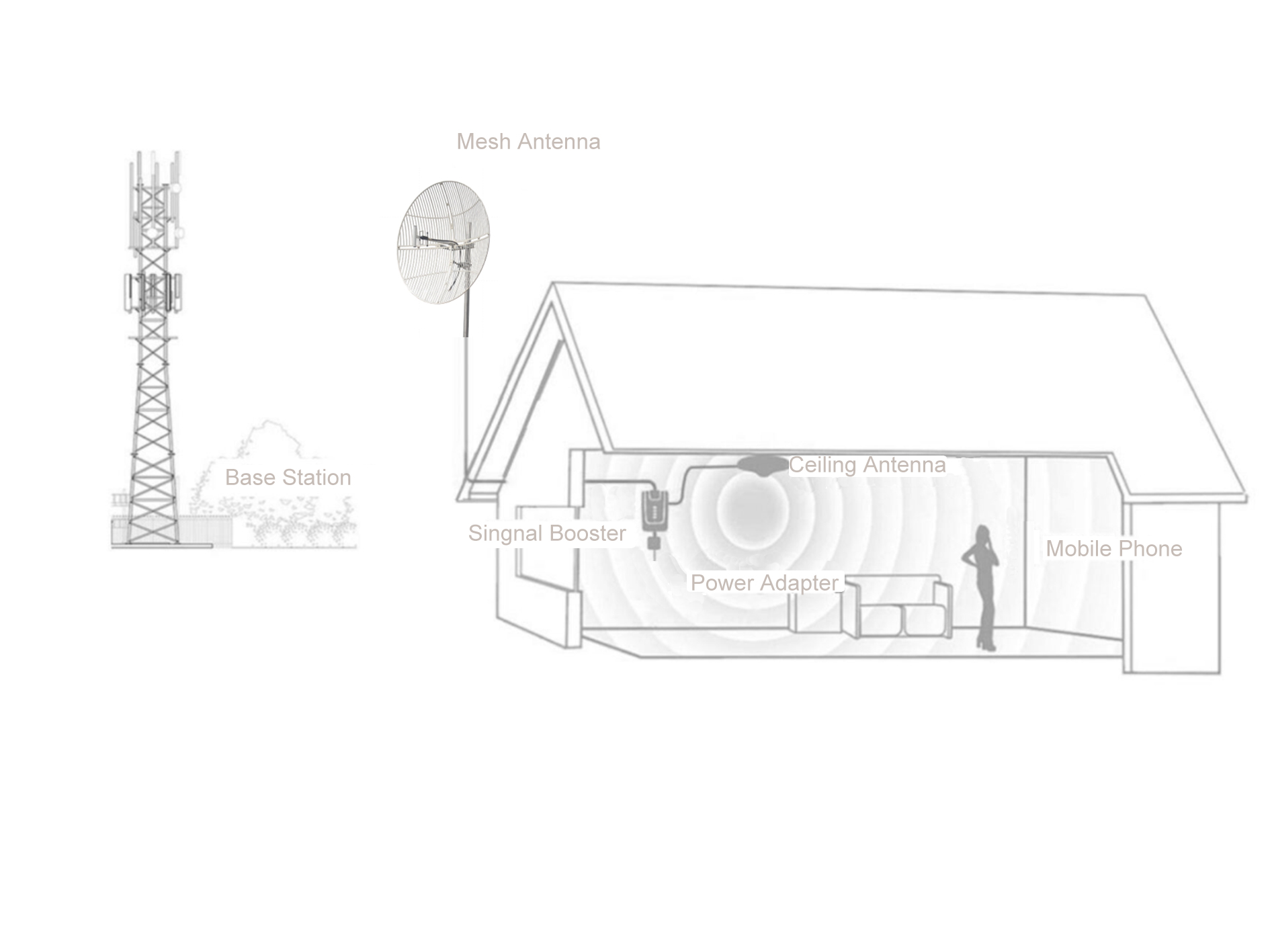

Application scenarios
Rural Cellular Networks: Extend GSM/CDMA coverage across mountainous terrain.
Industrial IoT Bridges: Connect remote facilities (mining sites, oil rigs) via point-to-point links.
Traffic Management Systems: Transmit surveillance data between intersections.
Wireless Backhaul: Cost-effective alternative to fiber for ISP backbone networks.
Q: What mast diameter does it support?
A: Compatible with Ø50mm to Ø75mm poles using included brackets.
Q: Can I use this for 5GHz Wi-Fi?
A: No, optimized for 820-960MHz frequencies only.
Q: Is the reflector rust-proof?
A: Yes, die-cast aluminum with UV-stable coating resists corrosion.
Q: What’s included in the package?
A: 4 grid panels, feed assembly, tilt/swivel bracket, fasteners.
Q: How long does assembly take?
A: ~20 minutes with basic tools (no calibration needed).
Q: Maximum transmission distance?
A: 15-25km line-of-sight (depends on terrain and receiver sensitivity).
Q: Can I change polarization?
A: Yes, rotate the feed assembly for vertical/horizontal polarization.
Q: Connector options?
A: Standard N-female; custom connectors available upon request.
Specifications
Model | GL900SPD12 |
Freq.Range-MHz | 820-960 |
Bandwidth-MHz | 70 |
Gain-dBi | 18 |
Ver.Beamwidth- ° | 17 |
Hor.Beamwidth- ° | 16.5 |
F/B Ratio-dB | ≥30 |
VSWR | ≤ 1.5 |
Impedance-Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 100 |
Connector | N Female or customized |
Diameter-m | φ 1.2 |
Weight-Kg | 7.1 |
Mast Diameter-mm | φ50 to φ75 |
Differences between similar products
P/N | GL900SPD12 | GL-DY5800V24A | GL-DY5158V28 |
Frequency-Mhz | 820-960 | 5725-5850 | 5150-5850 |
Gain-dBi | 18 | 24 | 28 |
Diameter-m | φ 1.2 | φ0.4 | φ0.6 |
Installation Sketch
Product Introduction
High Gain & Low VSWR
With 18dBi gain and VSWR ≤1.5, it ensures stable long-distance signal transmission with minimal loss, ideal for overcoming signal attenuation in remote areas .
Durable Die Cast Aluminum Reflector
The reflector is made of die cast aluminum with UV stable coat finish, resisting corrosion and weathering for long-term outdoor use .
Low Wind Load Design
Engineered to minimize wind resistance, it remains stable in harsh weather conditions, suitable for high-altitude or coastal installations .
Vertical Polarization & Flexible Mounting
Supports vertical polarization for point-to-point systems and comes with a tilt and swivel bracket, enabling precise angle adjustment for optimal signal alignment .
Customizable Connector & High Power Handling
Features N female connector (or customized) and supports up to 100W input power, compatible with various CDMA/GSM systems .
Application scenarios
Rural Cellular Networks: Extend GSM/CDMA coverage across mountainous terrain.
Industrial IoT Bridges: Connect remote facilities (mining sites, oil rigs) via point-to-point links.
Traffic Management Systems: Transmit surveillance data between intersections.
Wireless Backhaul: Cost-effective alternative to fiber for ISP backbone networks.
Q: What mast diameter does it support?
A: Compatible with Ø50mm to Ø75mm poles using included brackets.
Q: Can I use this for 5GHz Wi-Fi?
A: No, optimized for 820-960MHz frequencies only.
Q: Is the reflector rust-proof?
A: Yes, die-cast aluminum with UV-stable coating resists corrosion.
Q: What’s included in the package?
A: 4 grid panels, feed assembly, tilt/swivel bracket, fasteners.
Q: How long does assembly take?
A: ~20 minutes with basic tools (no calibration needed).
Q: Maximum transmission distance?
A: 15-25km line-of-sight (depends on terrain and receiver sensitivity).
Q: Can I change polarization?
A: Yes, rotate the feed assembly for vertical/horizontal polarization.
Q: Connector options?
A: Standard N-female; custom connectors available upon request.
