English
GLHD9E
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

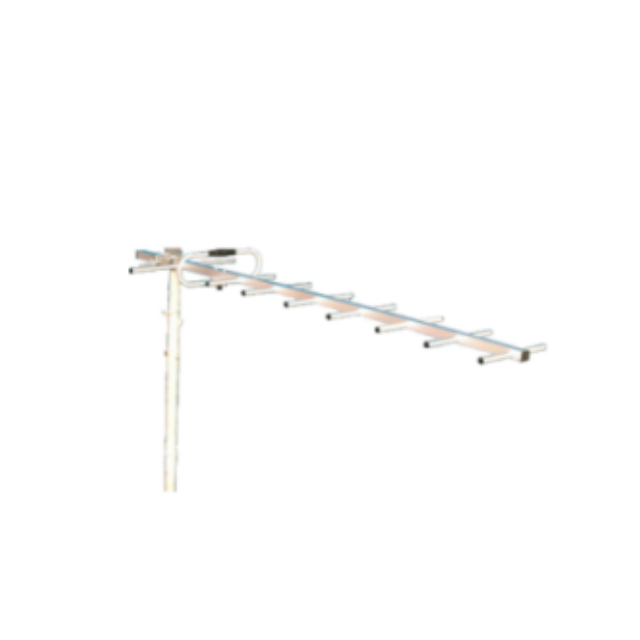

Item | HDTV Outdoor Antenna |
PN | GLHD9E |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 10-12 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 720 |
Carton Size-mm |
|
Weight | 8.5kg/carton |
Product Introduction
1.High Gain Performance Design:Offers industry-leading gain of 10-12dBi, optimized for extremely weak signal environments, providing 30% longer reception distance than ordinary outdoor antennas, ensuring stable HD signal reception even in the most remote areas.
2.Professional-Grade Outdoor Engineering Structure:Utilizes an aerospace-grade aluminum alloy frame and UV-resistant engineering plastics, featuring a lightweight design with exceptional structural strength. Professional anti-corrosion treatment ensures a long outdoor lifespan of several years.
3.Ultra-Efficient Signal Transmission System: VSWR≤1.5 ultra-low VSWR design minimizes signal reflection loss. A perfect 75Ω standard impedance match and a professional F-type connector ensure stable and reliable connections.
4.Optimized Structural Lightweight Design:A carefully designed 720mm length combined with lightweight 8.5kg packaging ensures both performance and ease of transport and installation, significantly reducing installation difficulty and transportation costs.
5.High Power Compatibility Design:Supports up to 50W high power capacity, compatible with various signal amplifiers and distribution systems, providing a reliable basic receiving device for professional-grade signal system integration.
Application Scenarios
●Extremely Remote Areas: Specifically designed for remote mountainous, island, and rural areas with extremely weak signals, its 12dBi high gain breaks through the limits of traditional reception.
●Professional Communication Systems: Signal receiving equipment for communication base stations of telecom operators and government departments.
●Large Commercial Venues: Centralized distribution systems for television signals in multi-building complexes such as hotels, resorts, schools, and hospitals.
●Emergency Broadcasting Systems: Backup communication receiving equipment for emergency management departments and disaster prevention and mitigation centers.
●Professional Monitoring Systems: Signal transmission and reception solutions for long-distance video surveillance systems.
FAQ
Q: What is the positioning of the GLHD9E in the product series?
A: The GLHD9E is the professional flagship model in the series, offering the highest gain of 10-12dBi, designed specifically for extremely weak signal environments.
Q: What professional tools are needed for installation?
A: It is recommended to use a signal strength meter to determine the optimal orientation. Basic tools such as a wrench and level are required for installation. Safety equipment must be used for high-altitude work.
Q: How wind-resistant is the product?
A: Utilizing a reinforced aluminum alloy structure and aerodynamic design, it can withstand most harsh weather conditions, but additional reinforcement is recommended in typhoon-prone areas.
Q: Is regular professional maintenance required?
A: We recommend a professional inspection annually, including checking connector waterproofing, structural tightness, and surface cleanliness.
Q: Which signal amplifiers are compatible?
A: Compatible with all standard 75Ω impedance UHF signal amplifiers. Please consult our technical support team for specific models.
Q: Is the shipping packaging safe and reliable?
A: Professionally designed 785×325×565mm packaging with internal shock-absorbing materials to ensure the product arrives undamaged during transportation.
