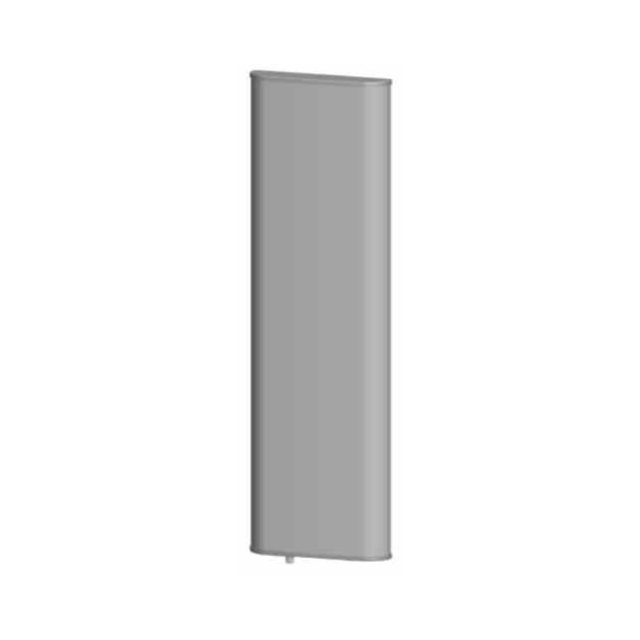

GL65VP11-043 AT0
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Panel Antenna |
PN | GL65VP11-043AT0 |
Frequency(Mhz) | 380-400/400-450/450-500 |
Bandwidth(MHz) | 20/50/50 |
Gain(dBi) | 10.8 /11.2/ 11.5 |
Electrical Downtil(°) | 0 |
Isolation(dB) | / |
Vertical Beamwidth(°) | 34/32/30 |
Horizontal Beamwidth(°) | 74/72/68 |
F/B Ratio(dB) | ≥18/≥20/≥22 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 500 |
Dimensions(mm) | 1050*50*145 |
Weight(kg) | 10 |
Connector | N Female |
Product Introduction
Tri-Band Frequency Coverage: Operates stably across 380-400 MHz, 400-450 MHz, and 450-500 MHz with 20/50/50 MHz bandwidths.
Graded Gain Performance: Delivers 10.8/11.2/11.5 dBi gain across bands to optimize signal strength for diverse scenarios.
High Power Handling Capacity: Supports maximum input power of 500W, meeting high-demand communication requirements.
Optimized Beamwidth Design: Features 30-34° vertical and 68-74° horizontal beamwidth for wide, targeted coverage.
Reliable Hardware Configuration: Equipped with N Female connector and 50Ω impedance for secure, seamless integration.
Application scenarios
Public Safety Communication Systems: Ideal for PMR networks in police, fire, and emergency response teams (380-500 MHz).
Industrial Trunking Networks: Suitable for utility, railway, and mining site wireless communication needs.
Regional Wireless Base Stations: Deployed as core antennas for multi-band coverage with vertical polarization.
Fixed Wireless Access (FWA): Provides stable broadband connectivity in suburban, rural, or remote areas.
Lightweight Outdoor Deployments: Perfect for scenarios requiring portable, high-performance antenna setups (10 kg weight).
FAQ
Q: What frequency bands does this panel antenna support?
A: It covers three bands: 380-400 MHz, 400-450 MHz, and 450-500 MHz.
Q: What is the maximum power this antenna can handle?
A: It has a maximum power handling capacity of 500W.
Q: What type of polarization does this antenna adopt?
A: It uses vertical polarization, suitable for long-distance signal transmission and stable coverage.
Q: What connector is equipped with this antenna?
A: It comes with an N Female connector for easy and reliable system integration.
Q: What is the VSWR rating of this antenna?
A: The VSWR is ≤1.5, ensuring efficient power transfer and low signal reflection.
Q: What are the dimensions and weight of this antenna?
A: It measures 1050*50*145 mm and weighs 10 kg, designed for lightweight outdoor deployment.
Item | Panel Antenna |
PN | GL65VP11-043AT0 |
Frequency(Mhz) | 380-400/400-450/450-500 |
Bandwidth(MHz) | 20/50/50 |
Gain(dBi) | 10.8 /11.2/ 11.5 |
Electrical Downtil(°) | 0 |
Isolation(dB) | / |
Vertical Beamwidth(°) | 34/32/30 |
Horizontal Beamwidth(°) | 74/72/68 |
F/B Ratio(dB) | ≥18/≥20/≥22 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 500 |
Dimensions(mm) | 1050*50*145 |
Weight(kg) | 10 |
Connector | N Female |
Product Introduction
Tri-Band Frequency Coverage: Operates stably across 380-400 MHz, 400-450 MHz, and 450-500 MHz with 20/50/50 MHz bandwidths.
Graded Gain Performance: Delivers 10.8/11.2/11.5 dBi gain across bands to optimize signal strength for diverse scenarios.
High Power Handling Capacity: Supports maximum input power of 500W, meeting high-demand communication requirements.
Optimized Beamwidth Design: Features 30-34° vertical and 68-74° horizontal beamwidth for wide, targeted coverage.
Reliable Hardware Configuration: Equipped with N Female connector and 50Ω impedance for secure, seamless integration.
Application scenarios
Public Safety Communication Systems: Ideal for PMR networks in police, fire, and emergency response teams (380-500 MHz).
Industrial Trunking Networks: Suitable for utility, railway, and mining site wireless communication needs.
Regional Wireless Base Stations: Deployed as core antennas for multi-band coverage with vertical polarization.
Fixed Wireless Access (FWA): Provides stable broadband connectivity in suburban, rural, or remote areas.
Lightweight Outdoor Deployments: Perfect for scenarios requiring portable, high-performance antenna setups (10 kg weight).
FAQ
Q: What frequency bands does this panel antenna support?
A: It covers three bands: 380-400 MHz, 400-450 MHz, and 450-500 MHz.
Q: What is the maximum power this antenna can handle?
A: It has a maximum power handling capacity of 500W.
Q: What type of polarization does this antenna adopt?
A: It uses vertical polarization, suitable for long-distance signal transmission and stable coverage.
Q: What connector is equipped with this antenna?
A: It comes with an N Female connector for easy and reliable system integration.
Q: What is the VSWR rating of this antenna?
A: The VSWR is ≤1.5, ensuring efficient power transfer and low signal reflection.
Q: What are the dimensions and weight of this antenna?
A: It measures 1050*50*145 mm and weighs 10 kg, designed for lightweight outdoor deployment.
