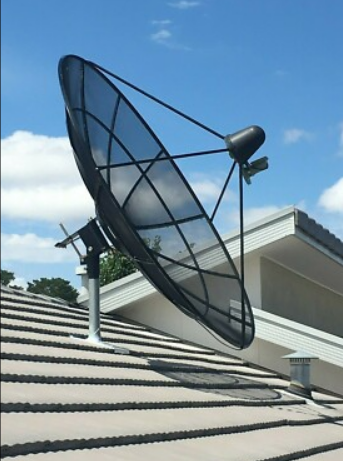

GL-DYS180AM4PM
Asialeren
8517710000
5pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Item No | GL-DYS180AM4PM | |
Panel(Sector Divided) | 4 | |
Aperture Diameter | 180CM | |
C-Band Gain@ 4GHz | 35.4dB | |
Ku-Band Gain@ 12.5GHz | ||
F/D Ratio | 0.385 | |
Focus Length | 69.3CM | |
Material | Aluminium Mesh | |
Finish | Polyester Powder Coating | |
Mounting Type | Pole/Polar Mount | |
Elevation Alignment | 0～90° | |
Azimuth Alignment | 0～360° | |
Operational Winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken & fly away | 60m/sec | |
Ambient Temperature | --40℃～+60℃ | |
Relative Humidity | 0～100% | |
Differences between similar products
P/N | GL-DYS180AM4PM | GL-DYS150AMP | GL-DYS120AM4P |
Aperture Diameter | 180cm | 150cm | 120cm |
C-Band Gain@ 4GHz | 35.4dB | 34.2dB | 34.2dB |
Focus Length | 69.3CM | 57CM | 45.6CM |
Product Introduction
High C - Band Gain Performance：The S180AM - 4P/4PM offers an outstanding 35.4dB gain in the C - Band at 4GHz. This high gain enables it to capture and amplify weak C - Band signals effectively. Whether for satellite communication, broadcasting, or other C - Band applications, it ensures a stable and strong signal connection, providing reliable performance.
Durable Aluminium Mesh Construction：Made of aluminium mesh, the antenna is both lightweight and highly durable. Aluminium mesh provides good corrosion resistance, making it suitable for long - term outdoor use. It can withstand various weather conditions, including strong winds up to 60m/sec, extreme cold, and high humidity, ensuring the antenna's longevity.
Flexible Mounting Options：With a pole/polar mount design and adjustable elevation (0 - 90°) and azimuth (0 - 360°) alignment, the S180AM - 4P/4PM offers great flexibility in installation. Users can easily optimize the antenna's position to achieve the best signal reception, whether it's for covering a specific area or aligning with a particular satellite.
Optimal F/D Ratio and Focal Length：The 0.385 F/D ratio and 69.3CM focal length are carefully designed to focus signals accurately. This optimal combination enhances the antenna's signal - gathering ability, improving its overall performance. It ensures efficient signal collection and transmission, maximizing the utilization of satellite signals.
Wide Environmental Tolerance：Operating within a temperature range of - 40 ℃ to +60 ℃ and a relative humidity of 0 - 100%, the antenna can function in diverse environments. This wide tolerance makes it suitable for use in different climates, from freezing cold regions to humid tropical areas, ensuring continuous operation without performance degradation.
Application scenarios
Satellite Broadcasting: Ensures reliable signal transmission for TV/radio stations in remote areas.
Defense & Military: Deploys in rugged terrains for secure tactical communication.
Maritime Connectivity: Corrosion-resistant build suits ships and offshore platforms.
Meteorological Monitoring: Delivers stable data transfer in extreme weather conditions.
Rural Internet Solutions: Bridges connectivity gaps via satellite networks in underserved regions.
Q: What satellites is it compatible with?
A:All C/Ku-band GEO satellites (Intelsat, SES, Eutelsat). Confirm frequency with your service provider.
Q: How many people needed for assembly?
A:2 adults (45 mins). Panels snap-lock; no welding required.
Q: Does Ku-band require extra feedhorn?
A:Yes: Use C120 flange feedhorn .
Q: Can it handle snow load?
A:Yes: Mesh design sheds snow. Max load: 75kg/m².
Q: Difference between 4P and 4PM models?
A:4PM includes motorized polar mount. Standard 4P is manual.
Q: Minimum ground clearance?
A:50cm from base for 90° elevation.
