GL65DP15-045AT0
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

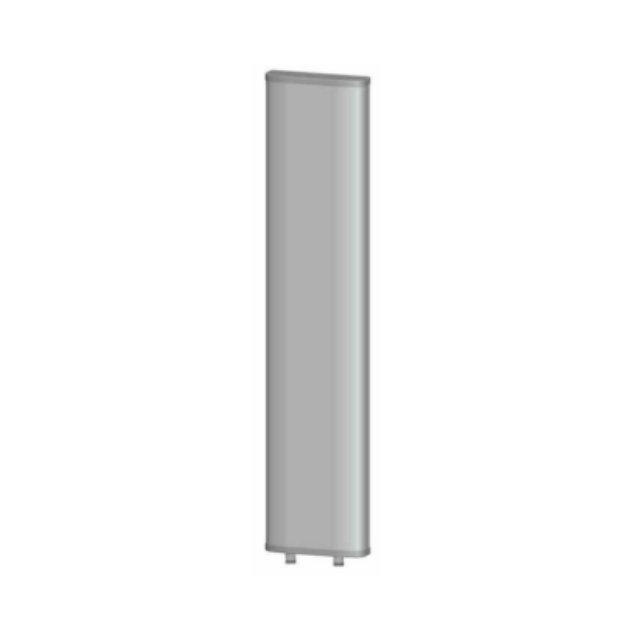

Item | Panel Antenna |
PN | GL65DP15-045AT0 |
Frequency(Mhz) | 450-470 |
Bandwidth(MHz) | 20 |
Gain(dBi) | 2*15 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥30 |
Vertical Beamwidth(°) | 15 |
Horizontal Beamwidth(°) | 65 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.4 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 500 |
Dimensions(mm) | 2080*515*100 |
Weight(kg) | 22 |
Connector | 2*7/16DIN Female |
Item | Panel Antenna |
PN | GL65DP15-045AT0 |
Frequency(Mhz) | 450-470 |
Bandwidth(MHz) | 20 |
Gain(dBi) | 2*15 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥30 |
Vertical Beamwidth(°) | 15 |
Horizontal Beamwidth(°) | 65 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.4 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 500 |
Dimensions(mm) | 2080*515*100 |
Weight(kg) | 22 |
Connector | 2*7/16DIN Female |
