GL2828U10 GNSS Receiver Module with Ceramic Antenna

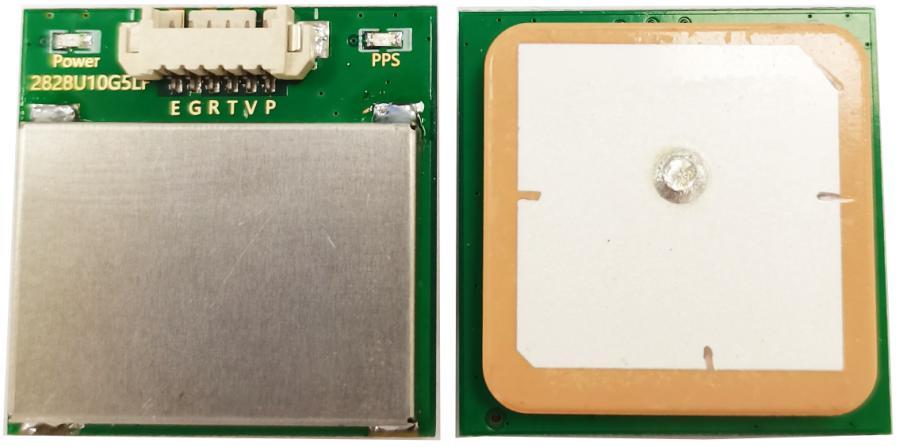

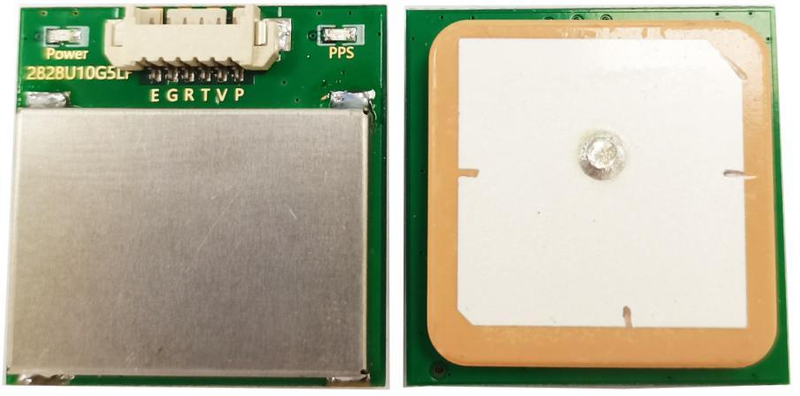

GL2828U10 combines a UBX-M10050-KB GNSS chipset, ceramic antenna, LNA and Flash in a 28 x 28 x 8.5 mm module. The default output uses GPS, SBAS, Galileo and QZSS; the supplied document also lists GPS+GLONASS and GPS+BeiDou configurations.

The TTL serial interface outputs NMEA 0183 data at a default 38400 bps and 1 Hz. Baud rate, output sentences, update rate and PPS behavior can be configured, and Flash retains those settings after power-off. The included 15 cm cable mates with the 6-pin, 1.25 mm-pitch socket for integration with a controller or USB-to-TTL interface.

The stated 2.0 m horizontal accuracy is conditional on SBAS assistance and open-sky reception. Operating and storage temperatures are specified from -40 to +85 °C. The frequency values are reproduced from the source table without treating its L1/L2/L3 labels as a claim of multi-band reception.

Minimum order: 100 units. Lead time: 2 weeks.
