GL90VP008-03508RT0
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

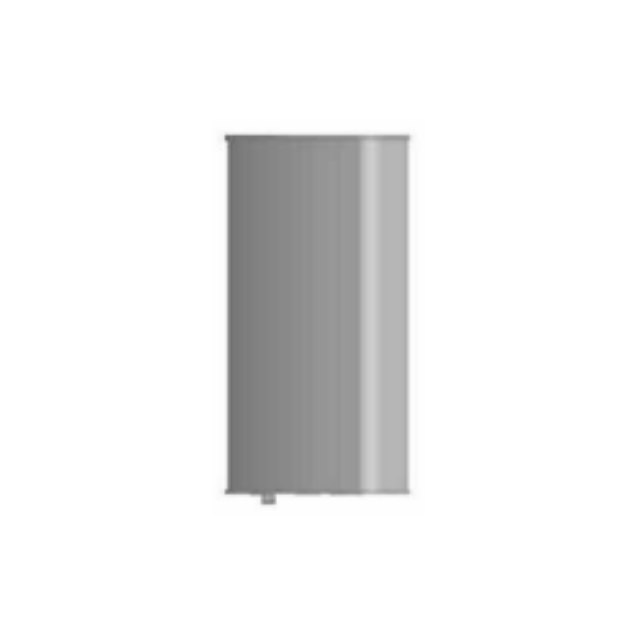

Item | Panel Antenna |
PN | GL90VP0808-03508RT0 |
Frequency(Mhz) | 351-366/806-866 |
Bandwidth(MHz) | 15/60 |
Electrical Downtil(°) | 0-14 |
Vertical Beamwidth(°) | 3dB Beamwidth 65/65 6dB Beamwidth 90/90 |
Horizontal Beamwidth(°) | 3dB Beamwidth 90/90 6dB Beamwidth 120/120 |
F/B Ratio(dB) | ≥18/≥23 |
VSWR | ≤2.0 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 300/200 |
Dimensions(mm) | 580*300*146 |
Weight(kg) | 6 |
Connector | N Female |
Product Introduction
Dual-Band Frequency Coverage: Operates reliably across 351-366 MHz (15 MHz bandwidth) and 806-866 MHz (60 MHz bandwidth).
Adjustable Electrical Downtil: Features 0-14° adjustable downtilt for flexible signal direction optimization in diverse scenarios.
Optimized Beamwidth Design: Boasts 3dB/6dB beamwidth (vertical 65°/90°、horizontal 90°/120°) for wide, targeted coverage.
Stable Signal Performance: Equipped with ≥18/23 dB F/B ratio and ≤2.0 VSWR to minimize interference and signal loss.
Lightweight & Reliable Hardware: Weighs only 6kg with N Female connector and 50Ω impedance for easy installation and integration.
Application scenarios
Public Safety Communication Networks: Ideal for emergency services relying on stable dual-band signal transmission.
Urban/Suburban Wireless Base Stations: Suitable for 2G/4G base stations needing adjustable downtilt and wide coverage.
Fixed Wireless Access (FWA): Provides stable broadband connectivity in residential or commercial areas.
Industrial IoT (IIoT) Infrastructure: Supports long-range device connectivity in lightweight deployment scenarios.
Specialized Trunking Systems: Applied in utility, transportation, or regional communication networks (351-866 MHz).
