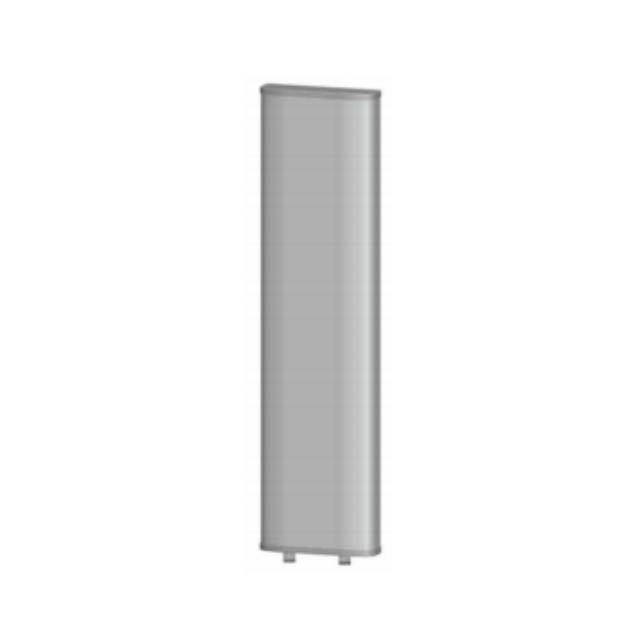

GL65DP14-045AT0
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Panel Antenna |
PN | GL65DP14-045AT0 |
Frequency(Mhz) | 380-450/450-500 |
Bandwidth(MHz) | 70/50 |
Gain(dBi) | 13/13.5 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥25 |
Vertical Beamwidth(°) | 28±2/26±2 |
Horizontal Beamwidth(°) | 72±5/68±5 |
F/B Ratio(dB) | ≥23 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 400 |
Dimensions(mm) | 1600*450*145 |
Weight(kg) | 18 |
Connector | 2*7/16DIN Female |
Product Introduction
Dual-Band Frequency Coverage: Operates stably across 380-450 MHz and 450-500 MHz for versatile communication needs.
High Gain Performance: Delivers reliable signal amplification with 13 dBi/13.5 dBi gain for extended coverage.
Strong Power Handling Capacity: Supports maximum input power of 400W, adapting to high-demand operation scenarios.
Excellent Signal Quality: Features ≤1.5 VSWR and ≥25 dB isolation for efficient power transfer and low interference.
Standardized Connector Configuration: Equipped with 2*7/16 DIN Female connectors for secure and seamless system integration.
Application scenarios
Public Safety Communication Networks: Ideal for TETRA/PMR systems in police, fire, and emergency services (380-500 MHz).
Utility & Transportation Trunking Systems: Suitable for railways, power grids, and industrial field communication.
Regional Wireless Base Stations: Deployed as core antennas for specialized area coverage requiring ±45° polarization.
Fixed Wireless Access (FWA) in Suburban/Rural Areas: Provides stable broadband connectivity via low-band frequencies.
Industrial IoT (IIoT) Infrastructure: Supports long-range device connectivity in industrial parks or large-scale facilities.
FAQ
Q: What frequency bands does this panel antenna support?
A: It covers two dual bands: 380-450 MHz and 450-500 MHz.
Q: What is the maximum power this antenna can handle?
A: It has a maximum power handling capacity of 400W for high-performance operation.
Q: What type of polarization does this antenna adopt?
A: It uses ±45° polarization, optimizing signal coverage and anti-interference ability.
Q: How many connectors does this antenna have, and what type are they?
A: It is equipped with 2*7/16 DIN Female connectors for reliable system integration.
Q: What are the VSWR and isolation ratings of this antenna?
A: The VSWR is ≤1.5, and isolation is ≥25 dB, ensuring efficient signal transmission.
Q: What are the dimensions and weight of this antenna?
A: It measures 1600*450*145 mm and weighs 18 kg, designed for durable outdoor deployment.
