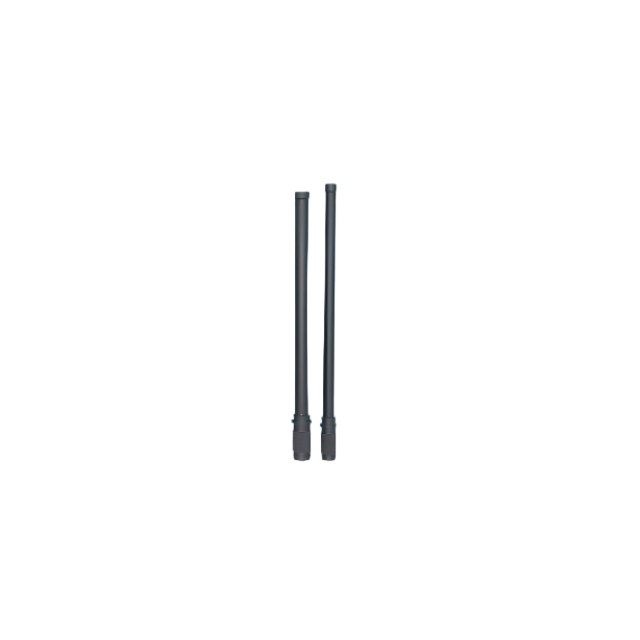

GL900B9
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 840-930 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 55±10° | ||
Gain (dBi) | 3±1 | ||
VSWR | ≤1.5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Ø25/32*600mm | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | black | ||
Input connector type | N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Product Introduction
●Omnidirectional Coverage with No Dead Zones:360° horizontal beamwidth enables omnidirectional signal reception and transmission, suitable for a wide range of coverage scenarios.
●Strong Anti-interference Capability:Designed for high-interference environments, ensuring stable signal transmission and improving communication reliability.
●Lightweight Outdoor Design:Utilizes a fiberglass shell, weighing only 0.2kg, making it easy to install and carry.
●High Environmental Adaptability:Supports wide operating temperatures from -40℃ to +70℃ and withstands winds of up to 200km/h, suitable for extreme outdoor environments.
●Wide Band Compatibility:Covers the 840-930MHz frequency band, suitable for various communication systems and frequency band requirements.
Application Scenarios
● Wide-area mobile communication base stations in rural and mountainous areas
● Temporary communication sites and emergency communication vehicle systems
● Internet of Things (IoT), remote monitoring and data acquisition systems
●Temporary signal coverage at outdoor event sites and exhibition venues
●Communication antennas for mobile platforms such as vehicles and ships
FAQ
Q: Is this antenna truly omnidirectional?
A: Yes, it provides 360° horizontal coverage, ideal for wide-area signal distribution.
Q: What makes it "anti-jamming"?
A: It is designed to maintain stable performance in environments with high electromagnetic interference, ensuring reliable communication.
Q: Can it withstand harsh weather?
A: Yes, it operates from -40℃ to +70℃, withstands up to 200km/h wind, and is built for outdoor use.
Q: What is the gain of this antenna?
A: The gain is 3dBi ±1, suitable for short to medium-range omnidirectional coverage.
Q: What connector does it use?
A: It comes with an N male connector, commonly used in base stations. station and outdoor applications.
Q: Is it easy to install?
A: Yes, its lightweight design (0.2kg) and standard mounting options allow for quick and easy installation.
