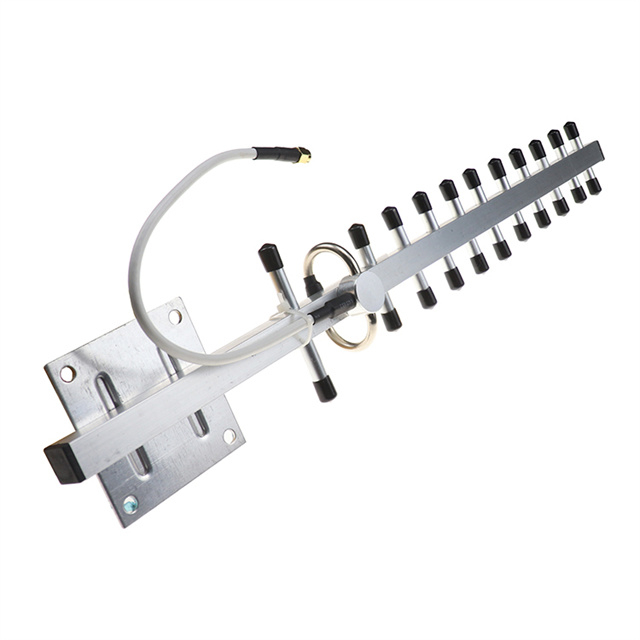

GLY900
Asialeren
8517710000
5pcs
Accepted
10000pcs/day
Availability: | |
---|---|
Quantity: | |
PDF Export | |
Electrical Specifications | |
Frequency Range | 806-960MHz |
VSWR | ≤1.5 |
Gain | 14dBi |
Horizontal beam width | 45° |
Vertical beam width | 40° |
Front-to-back ratio | ≥16dB |
Polarization | Vertical |
Input Impedance | 50Ω |
Maximum input power | 50W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N female |
Installation | Pole-holding |
Dimensions | 1145×190×55mm |
Antenna weight | 0.7kg |
Radiating Element Material | AI |
Operating temperature | -40°C to +70 °C |
Differences between similar products
P/N | GLY900 | GLY2427V18 | GL8090V-10 |
Frequency-Mhz | 806-960 | 2400-2700 | 700-800/824-894/880-960 |
Gain-dBi | 14 | 18 | 10/10.8/8.8 |
Antenna Dimension-mm | 1145×190×55 | 650×45×80 | 785*190*54 |
Product Introduction
1.Ultra-Compact & Lightweight Design
At only 1145×190×55mm and 0.7kg, our aluminum radome ensures easy deployment in space-constrained sites while maintaining structural rigidity.
2.Precision 45°×40° Beam Control
Optimized directional coverage minimizes interference and maximizes signal focus for reliable point-to-point links up to 15km.
3.Industrial-Grade Durability
AI radiating elements withstand extreme temperatures (-40°C to +70°C) and include DC grounding for lightning surge protection.
4.High-Efficiency 14dBi Gain
Delivers +3dB signal strength over standard 11dBi antennas, boosting reception in low-signal rural/industrial zones.
5.50W High-Power Handling
Supports continuous high-throughput transmission for mission-critical applications like SCADA and remote telemetry.
• Utility Networks: Meter reading & grid monitoring in 900MHz ISM bands
• Farm Automation: Livestock tracking sensors and irrigation control
• Security Systems: Long-range CCTV backhaul across multiple buildings
• Industrial IoT: Machinery telemetry in factories/plants
• Cellular Extension: Private LTE networks for remote sites
Q: What's the maximum transmission distance?
A: Typically 10-15km line-of-sight with 14dBi gain, subject to terrain and receiver sensitivity.
Q: Does it support 5G frequencies?
A: No, optimized for 806-960MHz bands (LTE/GSM/ISM).
Q: Is mounting hardware included?
A: Pole-holding brackets sold separately (compatible with 2-4" diameter poles).
Q: How to achieve lightning protection?
A: Requires direct DC grounding of the N-connector chassis to earth.
Q: Can it handle extreme weather?
A: Yes, IP67-rated radome withstands ice, dust, and desert conditions.
Q: What cable type is recommended?
A: Use LMR-400 or equivalent low-loss 50Ω coaxial cable with N-connectors.
Q: Vertical vs. horizontal polarization?
A: Vertical polarization reduces ground interference - ideal for mobile devices.
