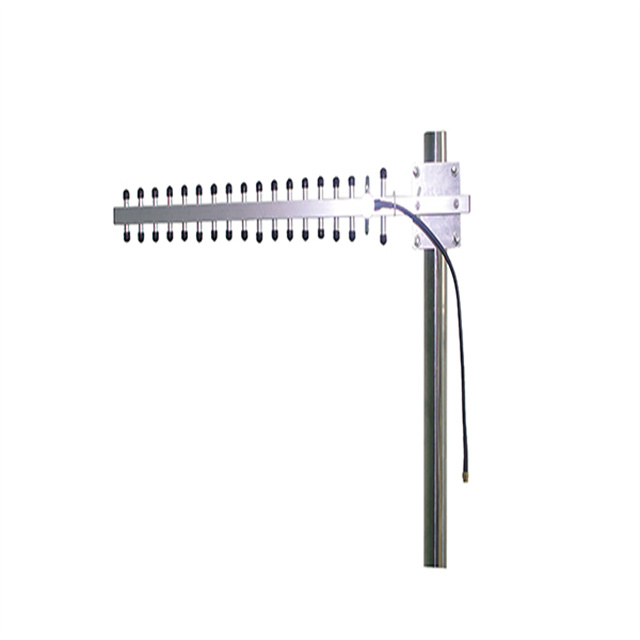

GLY2427V18
Asialeren
8517710000
5pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range | 2400-2700MHz |
VSWR | ≤1.5 |
Gain | 18dBi |
Horizontal beam width | 30° |
Vertical beam width | 30° |
Front-to-back ratio | ≥17dB |
Polarization | V / H |
Input Impedance | 50Ω |
Maximum input power | 100W |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | N-K |
Installation | Pole-holding |
Dimensions | 650×45×80mm |
Antenna weight | 0.3kg |
Radiating Element Material | AI |
Operating temperature | -40°C to +70 °C |
Differences between similar products
P/N | GLY900 | GLY2427V18 | GL8090V-10 |
Frequency-Mhz | 806-960 | 2400-2700 | 700-800/824-894/880-960 |
Gain-dBi | 14 | 18 | 10/10.8/8.8 |
Antenna Dimension-mm | 1145×190×55 | 650×45×80 | 785*190*54 |
High Gain for Long-range Transmission
With 16dBi gain and 30° beamwidth, it delivers focused signals for up to 5km wireless bridges, ideal for overcoming signal loss in remote WLAN setups .
Dual Polarization Flexibility
Supports vertical/horizontal polarization, enabling adaptive signal alignment to reduce multipath interference in urban or industrial environments .
Lightweight & Rugged Design
Weighing only 0.3kg with 650×45×80mm dimensions, it allows easy pole mounting while withstanding -40℃ to +70℃ temperatures .
High Power Handling
Supports 100W input power, suitable for high-density enterprise WiFi networks or industrial IoT systems requiring continuous operation .
Enhanced Signal Purity
Front-to-back ratio ≥17dB minimizes rear signal interference, ensuring clear transmissions in point-to-multipoint applications like campus WiFi coverage .
Application scenarios
Wireless ISPs: Rural point-to-multipoint backbone links
Industrial IoT: Factory sensor data aggregation
Security Systems: HD video surveillance backhaul
Smart Agriculture: Livestock monitoring in remote fields
Event Networking: Temporary high-density WiFi coverage
Q: Beam coverage distance?
A: 1-5km (varies by terrain). 30° beamwidth concentrates signal for long-range clarity.
Q: Compatible with 5GHz systems?
A: No. Optimized for 2400-2700MHz (WiFi 4/5, Zigbee, LoRa).
Q: Weather resistance rating?
A: Industrial-grade aluminum survives rain/snow (-40°C to +70°C).
Q: How to ground for lightning?
A: Use DC-ground port with 8AWG copper wire to earth rod.
Q: Mounting hardware included?
A: U-bolt kit for 30-50mm poles included.
Q: Optimal orientation angle?
A: Vertical/Horizontal polarization (adjust via rotating bracket).
Q: Front-to-back ratio importance?
A: ≥17dB reduces rear interference for cleaner signal paths.
