GL86803
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |

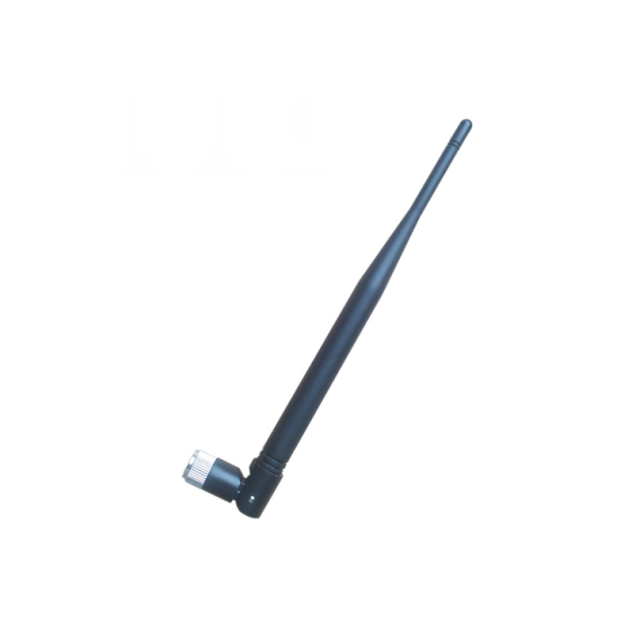

868MHz Aubber Antenna | |
P/N: GL86803 | |
Electrical Index | |
Frequency-MHz | 863-928 |
Gain-dBi | 3 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Liner |
Max Power-W | 50 |
Lighting protection | DC Ground |
Mechanical Index | |
Cable Length | --- |
Connector | SMA male |
Antenna Dimension-mm | 14.5*220 |
Installation Way | --- |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Wide Frequency Range (863-928MHz): Ideal for IoT, LoRa, and industrial wireless communication systems.
High Power Handling (50W): Supports long-distance transmission in demanding environments.
Robust Durability: Operates in extreme temperatures (-40°C to +85°C), humidity (5-95%), and withstands vibrations (10-55Hz).
DC-Ground Lightning Protection: Enhances safety in outdoor installations prone to electrical surges.
Compact & Lightweight (14.5*220mm): Easy to install on devices, poles, or enclosures with SMA male connectivity.
Application scenarios
Industrial IoT sensors and gateways
Smart metering and utility monitoring systems
Agricultural telemetry and environmental sensors
Remote asset tracking and logistics
Wireless alarm and security systems
FAQ
Q: What connector does this antenna use?
A: SMA male connector for secure and stable connections.
Q: Is it suitable for outdoor use?
A: Yes, IP-rated protection and DC-ground lightning protection ensure reliability outdoors.
Q: What is the operating temperature range?
A: -40°C to +85°C, suitable for harsh environments.
Q: Can it handle high-power applications?
A: Yes, supports up to 50W power input.
Q: Is this antenna ROHS compliant?
A: Yes, meets ROHS environmental standards.
Q: What frequency bands does it cover?
A: 863-928MHz, compatible with LoRa, Sigfox, and ISM bands.
Q: How is vibration resistance tested?
A: Tested at 10-55Hz with 1.5mm amplitude for 2 hours.
Q: Is the cable length customizable?
A: Standard length listed; contact us for custom options.
