GL800LB
GLOBAL
8517710000
100PC
Accepted
10000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |

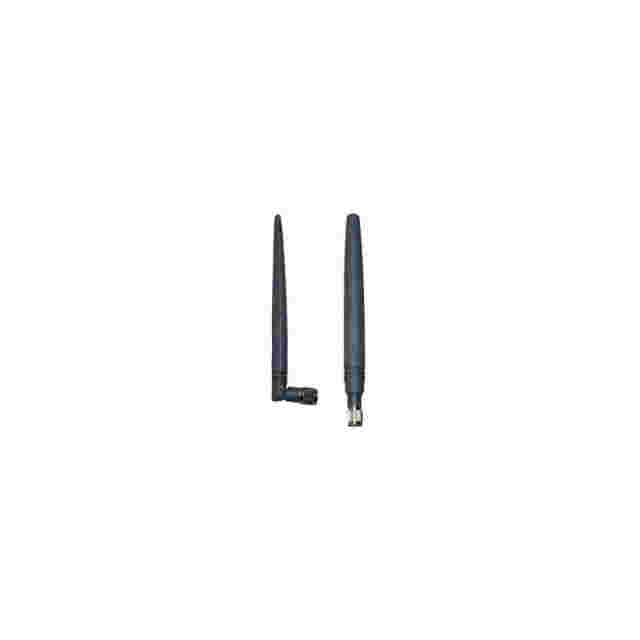

Item | Terminal Antenna |
PN | GL800LB |
Frequency(Mhz) | 824-896 |
Bandwidth(MHz) | 72 |
Gain(dBi) | 2.5 |
Vertical Beamwidth(°) | / |
Horizontal Beamwidth(°) | 360 |
VSWR | ≤2.0 |
Nominal Impedance(Ω) | 50 |
Polarization | Vertical |
Maximum Power(W) | 50 |
Dimensions(mm) | 2100 |
Weight(kg) | 0.04 |
Connector | TNC male or SMA male |
Wide Frequency Coverage – Operates across 824-896 MHz, ideal for cellular, IoT, and private radio applications.
Omnidirectional Reception – 360° horizontal beamwidth ensures consistent signal coverage in all directions.
Low VSWR ≤2.0 – Minimizes signal reflection, delivering efficient power transfer and stable performance.
Lightweight & Compact – Weighs only 0.04 kg and features a slim 2100mm design for easy integration into portable or fixed devices.
Flexible Connector Options – Available with TNC male or SMA male connectors to match common radio equipment.
Cellular Signal Boosting – Enhance 2G/3G/4G LTE signals in vehicles, buildings, or remote areas.
IoT Device Connectivity – Provide reliable antenna performance for smart meters, trackers, and industrial sensors.
Public Safety Radio – Suitable for two-way radios and emergency communication systems operating in the 800MHz band.
Wireless Data Terminals – Integrate into routers, modems, or gateways for improved wireless uplink.
RF Testing & Measurement – Use as a reference antenna in lab environments or field signal analysis.
Q: What frequency bands does the GL800LB support?
A: It covers 824–896 MHz, commonly used for cellular (2G/3G/4G), trunked radio, and some IoT applications.
Q: What type of connector does it use?
A: The antenna is available with either TNC male or SMA male connectors. Please specify your preference when ordering.
Q: Is this antenna omnidirectional?
A: Yes, it offers 360° horizontal beamwidth, providing uniform coverage in all directions.
Q: What is the maximum power handling capability?
A: It can handle up to 50 watts of continuous RF power.
Q: What is the VSWR specification?
A: The VSWR is ≤2.0 across the entire frequency range, ensuring good impedance matching and low signal loss.
Q: Can this antenna be used outdoors?
A: The GL800LB is designed primarily for indoor or sheltered outdoor use. For full outdoor exposure, please check environmental requirements or consider weatherproof models.
