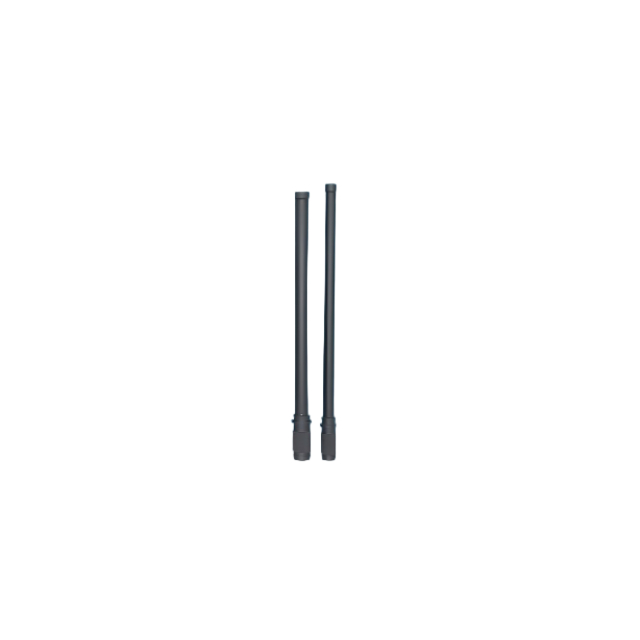

GL1400B6
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |||
Frequency Range (MHz) | 1430-1450 | ||
Horizontal beam width(°) | 360 | ||
Vertical beam width (°) | 23±5° | ||
Gain (dBi) | 6±1 | ||
VSWR | ≤1.5 | ||
Maximum input power (W) | 100 | ||
Impedance (Ω) | 50 | ||
Mechanical Specifications | |||
Dimensions (mm) | Ø25/32*600mm | ||
Antenna weight (Kg) | 0.2 | ||
Radome material | fiberglass | ||
Radome color | black | ||
Input connector type | N male | ||
Environmental indicators | |||
Usage scenarios | Outdoor | ||
Operating temperature (℃) | -40 to +70 | ||
Humidity range (%) | 5 to 95 | ||
Maximum wind speed (km/h) | 200 | ||
Product Introduction
●Omnidirectional High Gain Design: 6dBi gain combined with 360° omnidirectional coverage provides stable and wider-range signal transmission and reception capabilities.
●Strong Anti-interference Performance: Optimized for environments with high electromagnetic interference, ensuring clear and reliable communication in the 1.4GHz band.
●Narrow Vertical Beamwidth for Concentrated Signal: 23° vertical beamwidth enhances signal directivity and coverage density, suitable for medium- to long-distance communication.
●Lightweight Outdoor Construction: Made of fiberglass, weighing only 0.2kg, windproof and corrosion-resistant, easy to install and durable.
●Harsh Environmental Adaptability: Operating temperature -40℃ to +70℃, withstands strong winds of 200km/h, suitable for various extreme outdoor environments.
Application Scenarios
●Satellite communication ground stations and data receiving systems
●Wireless data acquisition and remote monitoring (e.g., weather stations, hydrological monitoring)
●Private network communication, emergency command, and mobile vehicle communication
●Industrial control and Internet of Things (IoT) device connectivity
●Broadcast television auxiliary communication and signal relay
FAQ
Q: What frequency band does this antenna support?
A: It operates in the 1430-1450MHz range, ideal for 1.4GHz band applications such as satellite and data links.
Q: Is this antenna suitable for outdoor permanent installation?
A: Yes, it is built with a fiberglass radome and can withstand strong winds and wide temperature ranges.
Q: What is the typical gain and coverage pattern?
A: It offers 6dBi gain with 360° horizontal coverage and 23° vertical beamwidth for reliable medium-range communication.
Q: Does it support high-power transmission?
A: Yes, it handles up to 100W input power with VSWR ≤1.5 for efficient signal transmission. transmission.
Q: What connector is used?
A: It comes with an N male connector, commonly used in professional wireless systems.
Q: Can it be used in mobile or vehicle-mounted applications?
A: Yes, its lightweight and rugged design makes it suitable for mobile, vehicular, and fixed outdoor installations.
